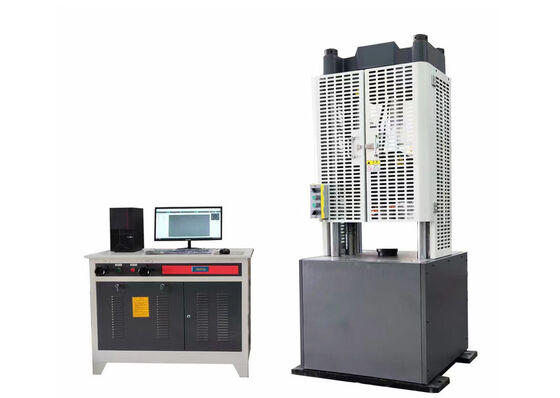

Hydraulic Universal Testing Machine Featuring Cylinder Lower Type Main Machine for Tensile and Compression Testing of Materials

Grande immagine : Hydraulic Universal Testing Machine Featuring Cylinder Lower Type Main Machine for Tensile and Compression Testing of Materials

Dettagli:

Luogo di origine:	Pechino, Cina
Marca:	TH
Certificazione:	ISO9001 , CE
Numero di modello:	WAW-600G

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1 set
Imballaggi particolari:	Casse di legno standard dell'esportazione
Tempi di consegna:	7 ~ 15 giorni di lavoro
Termini di pagamento:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Capacità di alimentazione:	20 set al mese

Contatto

Descrizione di prodotto dettagliata

Nome del prodotto:	Macchina di prova universale idraulica dotata di macchina principale di tipo inferiore a cilindro pe	Modello:	WAW-600G
Struttura:	6 colonne	Modo di controllo:	manuale e automatico
Max. carico:	600kN	Max. spazio di prova di tensione:	700 (può essere personalizzato)
Spazio di prova di compressione massimo:	600 mm (può essere personalizzato)	Intervallo di carico:	±1%-100%FS
Contatore di estensione elettronico:	10/50	Intervallo di campioni rotondi:	φ13~φ40 mm
Gamma di bloccaggio provini piatti:	0-30mm	Metodo di serraggio:	bloccaggio idraulico
Evidenziare:	Hydraulic Universal Testing Machine with cylinder lower type , Universal Testing Machine for tensile compression , Material testing machine hydraulic cylinder design

Hydraulic Universal Testing Machine

Product Overview

This hydraulic universal testing machine features a cylinder lower type main machine designed for tensile and compression testing of materials. Developed primarily for conducting tensile tests on prestressed concrete steel strands and compression tests on metallic and non-metallic materials, it accurately measures critical indicators including maximum force, yield force, and modulus of elasticity in full compliance with ISO 6934-4.

Extensively applied across industries including metallurgy, construction, light industry, aviation, aerospace, materials research, higher education institutions, and scientific research institutes. The entire test operation process and data processing procedures fully satisfy specifications outlined in GB/T 228.1-2010 and GB/T 5224-2014 standards.

Price Advantage

Intensified investment in independent research and development with dedicated processing center
Core components manufactured in-house to reduce intermediate costs while maintaining consistent quality
High-performance products delivering superior long-term value compared to low-quality alternatives
Minimized machine failure rate to lower maintenance expenses and enhance operational efficiency

Frame Design

Hydraulic cylinder mounted at the bottom of the load frame with tensile testing space arranged at the upper part, while compression and bending testing spaces are situated between the lower crosshead and worktable.

Hydraulic power drives the piston inside the cylinder to supply required loading force. The lower crosshead is driven by an electric motor through reducer, chain drive mechanism, and screw pair, achieving flexible and accurate adjustment of testing space.

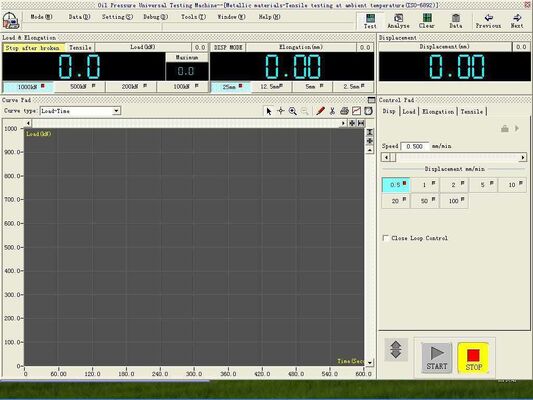

Software System

Designed for Windows operating system with dedicated test software incorporating programmable control capabilities. Supports arbitrary combination of multiple test modes including constant rate test force control, constant rate displacement control, test force retention, and displacement retention.

Control commands transmitted from computer to servo valve adjust opening magnitude and flow direction, precisely regulating hydraulic oil flow into the oil cylinder for accurate control over constant test force speed and constant displacement speed.

Complete file operation functions enable test reports, test parameters, and system parameters to be stored and managed in standardized file formats. Hierarchical user permission management with fully configurable system parameters ensures operational flexibility and stable reliability.

Compliance Standards

ISO 6892, ISO 6934, BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8, and BSEN standards.

Technical Parameters

Parameter	Specification
Model	WAW-600G
Structure	4 columns and 2 screws
Control Method	Loading process manual control, computer automatic data processing
Maximum Load	600kN
Load Accuracy	≤±0.5%
Load Range	2%-100%FS
Isokinetic Stress Control Range	2-60 (N/mm²•S⁻¹)
Stress Rate Error	≤±0.5%
Load Resolution	1/600000
Deformation Measurement Range	2%～100%FS
Deformation Accuracy	≤±0.5%
Displacement Resolution	0.01 mm
Displacement Error	≤±0.5%
Maximum Piston Stroke	250 mm
Maximum Piston Moving Speed	0.5-100 mm/min (Manual adjustment)
Crosshead Lifting Speed	300 mm/min
Maximum Tension Test Space	700 mm (customizable)
Maximum Compression Test Space	600 mm (customizable)
Clamping Method	Hydraulic clamp
Round Specimen Clamping Range	φ13-φ40 mm (13-26, 26-40)
Flat Specimen Clamping Range	0-15, 15-30 mm
Flat Specimen Clamping Width	80 mm
Compression Plate Size	200×200 mm
Bending Roller Distance	450 mm
Width of Bending Rollers	120 mm
Power Supply	3-phase, AC380V, 50Hz (customizable)
Weight and Dimensions	2100 KG, 960×750×2270 mm

Packing and Shipping

Frequently Asked Questions

Q1: Is your company a trading enterprise or a manufacturing factory?

A: We operate as an integrated manufacturer and trading company, with 18 years of focus in the testing instrument industry and 14 years of professional export experience.

Q2: How should we select the most appropriate equipment?

A: Our professional technical team will provide targeted and optimal suggestions once you inform us of your required testing items and relevant specifications.

Q3: What are your delivery terms?

A: Most products are available from factory stock. For non-stock items, standard production and delivery period is 15-20 working days after receiving deposit. Priority production available for urgent orders.

Q4: Do you provide customized solutions?

A: Yes, we supply both standardized testing machines and fully customized equipment based on individual requirements. Please share your detailed demands for full accommodation.
