Customizable Hydrostatic Pressure Testing Machine for Accurate and Pressure Testing in Industrial Environments
Applications:
Introduction to the Hydrostatic Pressure Testing Machine
Boasting high-quality build and consistent reliable performance, the Hydrostatic Pressure Testing Machine serves as an ideal solution for businesses and organizations requiring accurate assessment of the strength and durability of plastic pipes. This machine is certified to comply with ISO 9001 standards, with its manufacturing base located in Beijing, China.
The Hydrostatic Pressure Testing Machine offers a test pressure range spanning 0.2–16 MPa, enabling it to adapt to diverse application scenarios. Furthermore, it is compliant with a suite of industry-specific standards, including ISO 1167, ISO 9080, EN 921, ASTM D1598, ASTM D1599, and ISO 13479—thus ensuring alignment with the highest industry quality and safety benchmarks.
Equipped with an LCD display, the Hydrostatic Pressure Testing Machine facilitates clear reading and real-time monitoring of test results. Additionally, it is furnished with CE and ISO certifications, which further validate its adherence to rigorous quality and safety requirements.
Product Description:

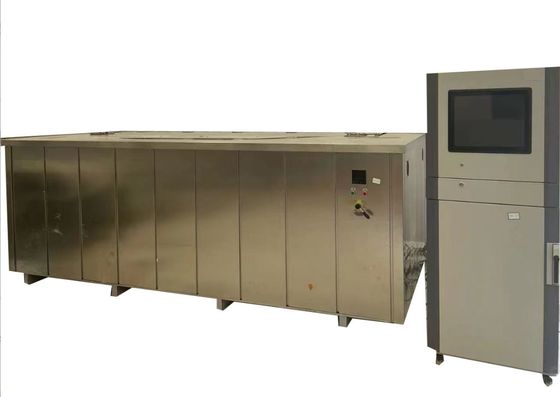

16MPA PVC Plastic Pipe Hydrostatic Pressure Testing Machine (ASTM D1598)
This testing machine features a test pressure range of 0.2–16 MPa and a test temperature range of 15–95℃, enabling it to perform accurate and reliable hydrostatic pressure tests on plastic pipes of various sizes and material types. It is also equipped with an integrated temperature control system that maintains precise temperature regulation throughout the testing process, ensuring the accuracy and consistency of test results.
The 16MPA PVC Plastic Pipe Hydrostatic Pressure Testing Machine (ASTM D1598) offers user-friendly operation, with a streamlined and efficient testing process. It is designed with an intuitive interface and a user-centric control system, allowing operators to easily set up test parameters and execute tests without extensive training. Additionally, the machine is fitted with built-in safety mechanisms (e.g., over-pressure protection, temperature anomaly alerts) to ensure the testing process is carried out in a safe and secure manner.
This machine is specifically optimized for testing PVC plastic pipes, including PPR, PB, and PERT pipes. These pipe types are widely utilized in plumbing, heating, and other industrial sectors, valued for their durability and operational reliability. As such, a hydrostatic pressure testing machine tailored for PPR, PB, and PERT pipes is indispensable for safeguarding the quality and safety of these products—and the 16MPA PVC Plastic Pipe Hydrostatic Pressure Testing Machine (ASTM D1598) is uniquely suited for this purpose.
In summary, the 16MPA PVC Plastic Pipe Hydrostatic Pressure Testing Machine (ASTM D1598) is a high-performance testing equipment specifically engineered for evaluating thermoplastic pipes (including PPR, PB, and PERT pipes). It complies with a range of international standards (e.g., ASTM D1598), covers a test pressure range of 0.2–16 MPa and a test temperature range of 15–95℃, and combines user-friendly operation with robust safety and reliability. These attributes make it the ideal testing solution for PVC plastic pipes.
Meet Standards:
ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335.
Technical Parameters:
| Model |
XGY-16C |
| Diameter range |
Φ8-1800mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized |
| Control mode |
Micro-control, industrial PC control |
| Display mode |
Industrial PC LCD color display |
| Storage mode |
PC strorage |
| Print mode |
Color printer output |
| Test pressure |
Pressure range |
0.1-16MPa |
| Control accuracy |
±1% |
| Display resolution |
0.01MPa |
| Working range |
5%~100%FS |
| Indication error |
±1% |
| Test Timer |
Timer range |
0~10000h |
| Timer accuracy |
±0.1% |
| Timer resolution |
1s |
| Power |
380V 50Hz three-phase four-wire 1.5KW |

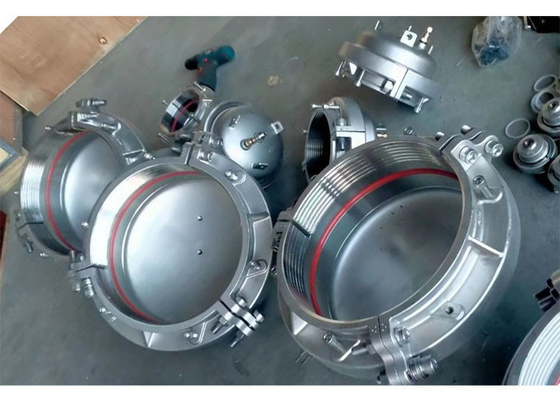

| end caps models |
from Φ16 to 630mm |
| Water tank size |
accoard to the pipe size |
| Temperature range |
15-95℃ |
| Dimensions (three stations) |
715×625×1700(mm)or others
|
Support and Services:
We provide comprehensive professional technical support for Hydrostatic Pressure Testing Machines. Our team of seasoned technical specialists, with in-depth industry experience, is well-equipped to deliver the following services:
- On-site machine installation and commissioning: We conduct on-site setup, precision calibration, and initial operational verification to ensure the machine meets standard testing requirements from the start, avoiding issues caused by improper installation.
- Professional troubleshooting and targeted technical consultation: We offer efficient diagnosis and solutions for equipment malfunctions (e.g., pressure control anomalies, temperature system errors) and provide in-depth guidance on test protocol optimization, standard compliance, and daily operation tips.
- Timely repair services and proactive preventive maintenance: We deliver prompt corrective repairs for faulty components (using compatible parts) and design customized preventive maintenance plans (e.g., seal inspection, sensor calibration, pipeline cleaning) to extend equipment lifespan and maintain stable performance.
- Supply of genuine spare parts and high-quality consumables: We provide 100% original spare parts (to ensure compatibility and testing accuracy) and reliable consumables (e.g., pressure hoses, sealing gaskets), with fast delivery to minimize downtime.
- Regular software updates and functional upgrades: We roll out periodic software updates to fix bugs and align with the latest industry standards (e.g., ISO 1167, ASTM D1598), and offer functional upgrades (e.g., enhanced data analysis modules) to adapt to evolving testing needs.
We are fully dedicated to delivering premium customer service and ensuring customer satisfaction. Should you have any inquiries or concerns regarding the operation, maintenance, or performance of your Hydrostatic Pressure Testing Machine, please feel free to contact us at your convenience.
