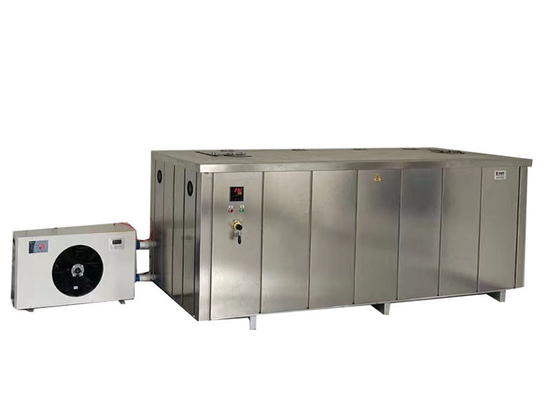

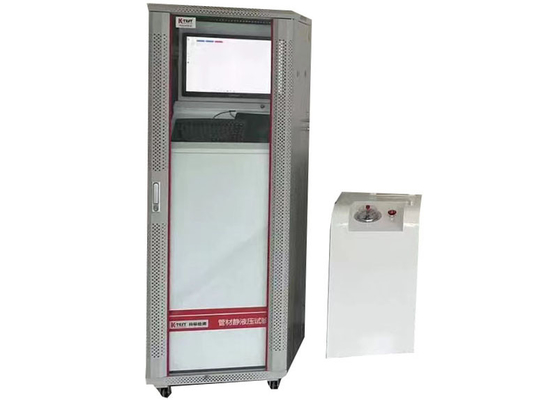

Upgrade Your Pressure Testing Process with Our Customizable Hydrostatic Pressure Testing Machine
Applications:
The XGY equipment is engineered to be compatible with end caps with a diameter range of Φ10-1600mm, enabling it to meet a wide variety of application requirements. Moreover, it holds CE and ISO certifications, which ensures that the equipment complies with the highest international standards for quality and safety, giving customers full confidence in its performance.
For thermoplastic pipe testing scenarios—such as plumbing, irrigation, and other industrial applications—the 16MPa PVC Plastic Pipe Hydrostatic Pressure Testing Machine (compliant with ASTM D1598) manufactured by JINHAIHU is the optimal choice. Featuring a test temperature range of 15-95℃, this machine enables accurate simulation of real-world operating conditions for pipes and fittings, ensuring reliable and practical test results.
Product Description:
The Hydrostatic Pressure Testing Machine is equipped with the capability to generate test curves for both pressure-time and pressure-temperature. This feature facilitates efficient analysis and interpretation of test results, enabling quick identification of potential issues and timely implementation of necessary adjustments.
Beyond its standard functionalities, the Hydrostatic Pressure Testing Machine also provides customized support for OEM applications. This makes it an ideal solution for enterprises seeking to develop tailored testing protocols to address their specific operational needs.
In summary, the Hydrostatic Pressure Testing Machine is a high-performance and versatile instrument, perfectly suited for conducting hydrostatic pressure and bursting tests on a diverse range of materials. Its automatic test mode, wide temperature range, and customizable features render it an excellent choice for businesses of all sizes, catering to both routine testing and specialized application requirements.
Features:
Product Name: Hydrostatic Pressure Testing Machine
Control Mode: Micro-control, industrial PC control
End Caps: Φ10-1600mm
Control Accuracy: ±1%
Test Medium: Water
Test Temperature Range: 15~95℃
Meet Standards:
ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335.
Technical Parameters:
| Model |
XGY-16C |
| Diameter range |
Φ8-1800mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized |
| Control mode |
Micro-control, industrial PC control |
| Display mode |
Industrial PC LCD color display |
| Storage mode |
PC strorage |
| Print mode |
Color printer output |
| Test pressure |
Pressure range |
0.1-16MPa |
| Control accuracy |
±1% |
| Display resolution |
0.01MPa |
| Working range |
5%~100%FS |
| Indication error |
±1% |
| Test Timer |
Timer range |
0~10000h |
| Timer accuracy |
±0.1% |
| Timer resolution |
1s |
| Power |
380V 50Hz three-phase four-wire 1.5KW |
| end caps models |
from Φ16 to 630mm |
| Water tank size |
accoard to the pipe size |
| Temperature range |
15-95℃ |
| Dimensions (three stations) |
715×625×1700(mm)or others
|
Support and Services:
To ensure the stable operation and optimal performance of your Plastic Pipe Hydrostatic Pressure Testing Machine, we offer comprehensive professional technical support and services. Our experienced technical team provides the following core services:
1. Troubleshooting & Professional Technical Consultation
We provide timely troubleshooting support via multiple channels (phone, email, remote desktop) to quickly diagnose and resolve operational issues. Additionally, our team offers professional technical consultation on test procedures, parameter setting, and equipment optimization.
2. Supply of Spare Parts & Consumables
We provide 100% genuine spare parts and high-quality consumables for the Hydrostatic Pressure Testing Machine. Our supply chain is stable with fast delivery, ensuring uninterrupted operation of your equipment.
3. Software Updates & Upgrades
We regularly release software updates, including bug fixes, operational optimizations, and compatibility improvements. We also offer customized software upgrade services to meet your evolving testing requirements and industry standard updates.
We are dedicated to delivering excellent customer service throughout the entire lifecycle of your Plastic Pipe Hydrostatic Pressure Testing Machine. If you have any questions or service needs, please feel free to contact us at any time.
FAQ:
Q1: What is the purpose of the Plastic Pipe Hydrostatic Pressure Testing Machine?
A1: The Plastic Pipe Hydrostatic Pressure Testing Machine is specifically designed to test the hydrostatic pressure resistance and bursting strength of plastic pipes.
Q2: Which components and materials can the Plastic Pipe Hydrostatic Pressure Testing Machine test?
A2: The machine is applicable for testing plastic pipes and composite pipes, including but not limited to PP-R, PP-B, PP-A, PVC, PE, and PE-X pipes.
Q3: What is the accuracy of the Plastic Pipe Hydrostatic Pressure Testing Machine?
A3: The Plastic Pipe Hydrostatic Pressure Testing Machine features an accuracy of ±0.1% of the full-scale reading, ensuring highly reliable test data.
Q4: What is the maximum test pressure of the Plastic Pipe Hydrostatic Pressure Testing Machine?
A4: The maximum test pressure of the machine is up to 10 MPa (100 bar / 1450 psi), covering the pressure testing needs of most plastic pipe applications.
