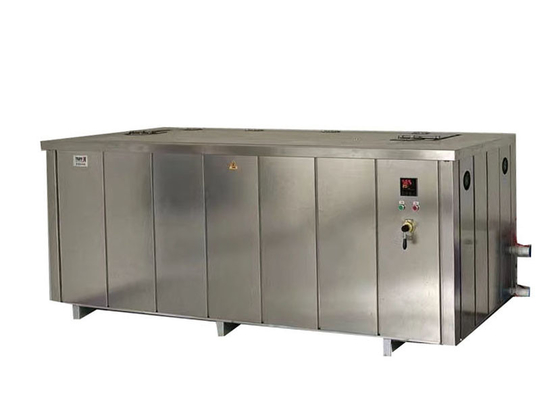

Advanced Hydrostatic Pressure Testing Machine for High-Pressure Environments and Applications
Applications:
This hydrostatic pressure testing machine boasts broad applicability across diverse product application scenarios. It is widely utilized for testing thermoplastic pipes, specifically those employed in water supply & drainage systems, heating systems, and other industrial piping applications.
Notably, this machine proves particularly valuable in the construction industry. It plays a critical role in verifying the quality and safety of pipes used in both building interior piping (e.g., residential or commercial water/heat supply lines) and large-scale infrastructure projects (e.g., municipal water pipelines)—effectively safeguarding the reliability of piping systems throughout their service life.
Product Description:
1. Safety Protection Mechanisms
This Hydrostatic Pressure Testing Machine is equipped with overpressure and overtemperature safety protection mechanisms, which fundamentally ensure safe operation during testing.
The overpressure safety protection automatically terminates the water supply when the test pressure exceeds the preset value, preventing pressure-related hazards.
The overtemperature safety protection automatically cuts off the heating power source when the test temperature exceeds the preset value, avoiding equipment damage or safety risks caused by overheating.
2. Certification, Accuracy & Testing Range
Authoritative Certifications: The machine holds CE and ISO certifications, which validate its compliance with international quality and reliability standards, giving users confidence in its performance.
High Precision: It features an accuracy range of -1% to +2%, ensuring consistent and precise test results for reliable data analysis.
Broad Testing Range: With a test pressure range of 0-16 MPa, the machine covers the testing needs of a wide spectrum of plastic pipes, adapting to diverse application requirements.
3. Applicability Across Industries
Whether you operate in the plastic pipe manufacturing sector or professional testing laboratories, this Plastic Pipe Hydrostatic Pressure Testing Machine is an optimal tool for conducting hydrostatic pressure tests on plastic pipes.
Its comprehensive safety protections, authoritative certifications, reliable accuracy, and broad testing range make it an ideal choice for any facility working with plastic pipes—including PPR, PB, PERT, and other thermoplastic pipe types.
Features:
Accuracy: -1%~+2%
Test Curve: Pressure-time And Pressure-temperature
Test Temperature Range: 15~95℃
Testing Range: 0-16MPA
Application: Suitable for hydrostatic pressure & bursting testing of PE PVC PPR PB PERT and other thermoplastics pipes and fittings
Technical Parameters:
| Model |
XGY-16C |
| Diameter range |
Φ8-1800mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized |
| Control mode |
Micro-control, industrial PC control |
| Display mode |
Industrial PC LCD color display |
| Storage mode |
PC strorage |
| Print mode |
Color printer output |
| Test pressure |
Pressure range |
0.1-16MPa |
| Control accuracy |
±1% |
| Display resolution |
0.01MPa |
| Working range |
5%~100%FS |
| Indication error |
±1% |
| Test Timer |
Timer range |
0~10000h |
| Timer accuracy |
±0.1% |
| Timer resolution |
1s |
| Power |
380V 50Hz three-phase four-wire 1.5KW |
| end caps models |
from Φ8 to 1800mm |
| Water tank size |
accoard to the pipe size |
| Temperature range |
15-95℃ |
| Dimensions (three stations) |
715×625×1700(mm)or others
|
FAQ:
Q: What is the purpose of the Plastic Pipe Hydrostatic Pressure Testing Machine?
A: The Plastic Pipe Hydrostatic Pressure Testing Machine is specifically designed to test the hydrostatic pressure resistance and bursting strength of plastic pipes—core indicators for evaluating the pipe’s durability and safety under pressure.
Q: Which types of pipes and materials can the Hydrostatic Pressure Testing Machine test?
A: The Hydrostatic Pressure Testing Machine is applicable for testing plastic pipes and composite pipes, including but not limited to PP-R, PP-B, PP-A, PVC, PE, and PE-X pipes.
Q: What is the accuracy of the Hydrostatic Pressure Testing Machine?
A: The Hydrostatic Pressure Testing Machine features an accuracy of ±0.1% of the full-scale reading, ensuring highly reliable and traceable test data.
Q: What is the maximum test pressure of the Hydrostatic Pressure Testing Machine?
A: The Hydrostatic Pressure Testing Machine boasts a maximum test pressure of 10 MPa (equivalent to 100 bar or 1450 psi), covering the pressure testing needs of most plastic pipe applications.
