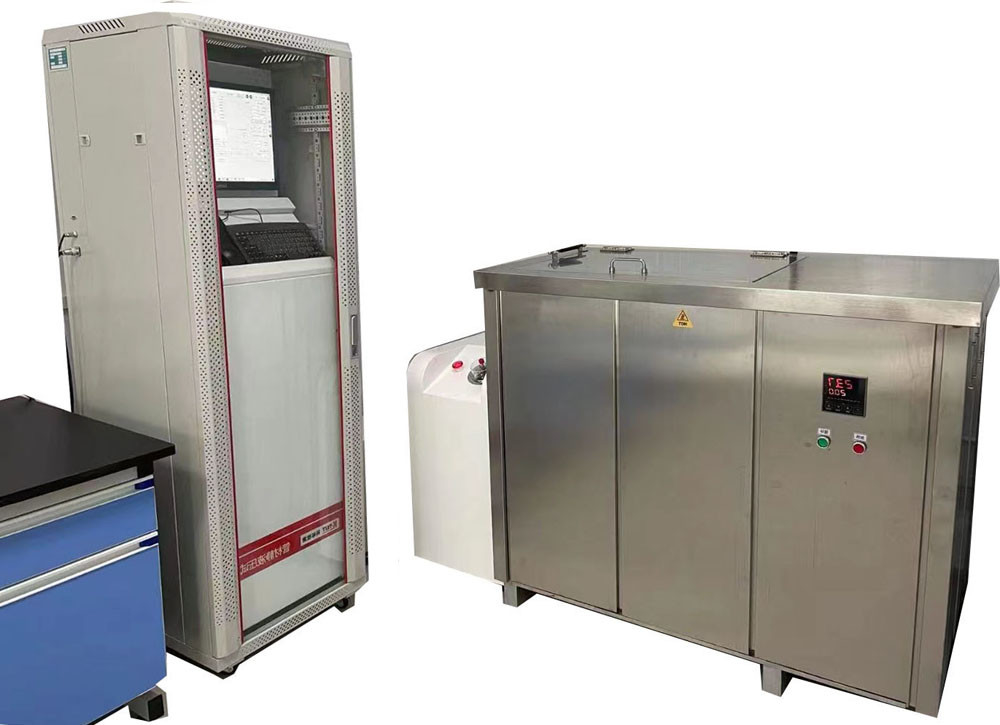

ISO 1167 Hydrostatic Pressure Test Machine , Automatic Bursting Strength Testing Machine

Large Image : ISO 1167 Hydrostatic Pressure Test Machine , Automatic Bursting Strength Testing Machine

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XGY-10C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7-15 working days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Test Machine	Testing Range:	0-10MPA
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
End Caps:	Φ8-1800mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	ISO 1167 Hydrostatic Pressure Test Machine , Automatic Hydrostatic Pressure Test Machine , Automatic Bursting Strength Testing Machine

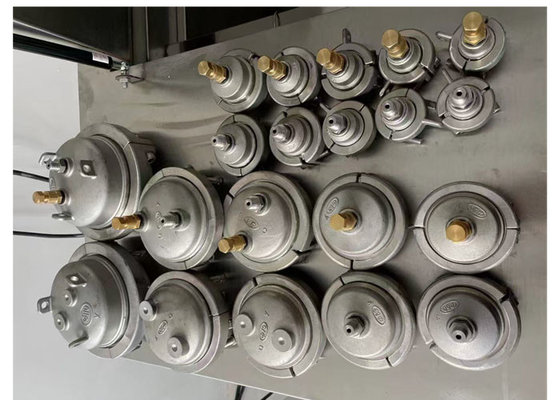

ISO 1167 Hydrostatic Pressure Test and Bursting Strength Testing Machine with Pressure-Sealing End Caps for Plastic Pipelines

Product Specifications

Attribute	Value
Testing Range	0-10MPA
Accuracy	-1%~+2%
Test Temperature Range	15~95℃
End caps	Φ8-1800mm
Display	LCD
Test curve	Pressure-time And Pressure-temperature
Safety Protection	Over Pressure/Over Temperature
Test Mode	Automatic
Test Medium	Water
Customized support	OEM
Certificate	CE, ISO

Product Description

The ISO 1167 Hydrostatic Pressure Test and Bursting Strength Testing Machine is designed for comprehensive testing of plastic pipelines, featuring pressure-sealing end caps for reliable performance.

Frequently Asked Questions

Q1: What is the purpose of the Hydrostatic Testing Machine?

A1: It is used to test the hydrostatic pressure resistance and bursting strength of plastic pipes.

Q2: What types of components and materials can the Hydrostatic Pressure Testing Machine test?

A2: It can test plastic pipes and composite pipes (such as PP-R, PP-B, PP-A, PVC, PE, PE-X, etc.).

Q3: What is the accuracy of the Hydrostatic Pressure Testing Machine?

A3: The accuracy is within 0.1% of the full-scale reading.

Specimen Free Length Requirements

Specimen Type	Free Length Requirements
Extruded Pipe Specimens	d_n <315mm: ≥ 3d_n and ≥ 250mm; d_n >315mm: ≥ 2d_n
Injection-molded Pipe Specimens	d_n <50mm: 3d_n; 50mm ≤ d_n ≤ 110mm: ≥ 140mm
Assembled Specimens with Hydrostatic Thrust (Two Pipe Sections)	≥ 3d_n and ≥ 250mm (d_n >315mm: ≥ 2d_n if min. length not met)
Assembled Specimens with Hydrostatic Thrust (with Fittings)	≥ 2d_n and ≥ 150mm; d_n >250mm: ≥ 1.5d_n
Assembled Specimens with Hydrostatic Thrust (Saddle Branch)	≥ 100mm
Assembled Specimens without Hydrostatic Thrust	= d_n and ≥ 150mm

Technical Parameters

Model	XGY-10C
Diameter range	Φ8-1800mm
Stations	3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc (customizable)
Control mode	Micro-control, industrial PC control
Display mode	Industrial PC LCD color display
Storage mode	PC storage
Print mode	Color printer output
Test pressure	Pressure range: 0.1-10MPa Control accuracy: ±1% Display resolution: 0.01MPa Working range: 5%~100%FS Indication error: ±1%
Test Timer	Timer range: 0~10000h Timer accuracy: ±0.1% Timer resolution: 1s
Power	380V 50Hz three-phase four-wire 1.5KW
End caps models	from Φ8 to 1800mm
Water tank size	According to the pipe size
Temperature range	15-95℃
Dimensions (three stations)	715×625×1700(mm) or others
