8" 219mm Plastic Pipe End Caps Easy Operation With Bolt O Ring / Vent Valve

8" 219mm Plastic Pipe End Caps Easy Operation With Bolt O Ring / Vent Valve
8" 219mm Plastic Pipe End Caps Easy Operation With Bolt O Ring / Vent Valve

Large Image :  8" 219mm Plastic Pipe End Caps Easy Operation With Bolt O Ring / Vent Valve

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001
Model Number: 8"
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 7-15 working days
Payment Terms: T/T,L/C,Western Union,MoneyGram,D/P,D/A
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Product Name: 8" 219mm Plastic Pipe End Caps With Bolt O Ring And Vent Valve For Easy Operation Standards: ISO1167, ASTM D 1598/1599, Etc
Exterior Size(mm*mm): φ320*120mm Technology: Precision Casting
Model: 8" Color: Bright Silver
Product Category: End Closures For Plastic Pipe Silicone Rubber O Ring: φ 215*8mm
Highlight:

8" plastic pipe end caps

,

219mm plastic pipe end caps

,

Plastic Pipe End Caps Easy Operation

8" 219mm Plastic Pipe End Caps With Bolt O Ring And Vent Valve

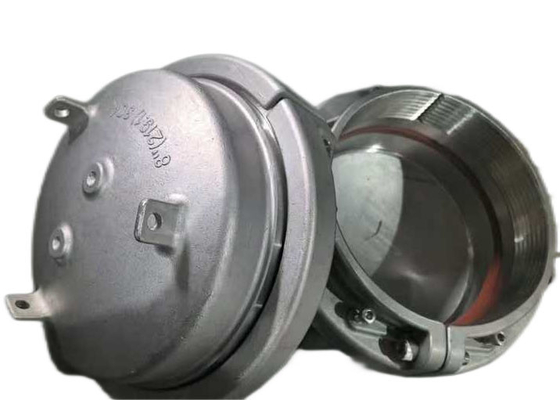

These precision-engineered end caps are designed to seal plastic pipes (PVC, PE, PPR, ABS) during internal pressure and bursting tests. Compatible with XGY Pipe Hydrostatic Testing Machines and most existing models.

Product Specifications
Attribute Value
Standards ISO1167, ASTM D 1598/1599, etc
Exterior Size φ320×120mm
Technology Precision casting
Model 8"
Color Bright silver
Product Category End Closures for Plastic Pipe
Silicone rubber O ring φ 215×8mm
Technical Parameters
Parameter Value
Max. Diameter φ320mm
Height of one end 120mm
Weight of one end 10KG
O ring size φ215×8mm
Max. pressure 8Mpa
Nominal value 6Mpa
Available Sizes
  • Inch sizes: 1/2", 3/4", 1", 1 1/2", 2", up to 28"
  • Metric sizes: Φ16mm to Φ1600mm
Compliance Standards

ASTM D1598-2004, ASTMD1599, ASTM D 2466, GB/T6111-2018, GB/T15560-1995, GB/T18252-2008, GB/T18476-2001

Support & Services
  • Technical support for installation and operation
  • Custom sizing and labeling available
  • OEM manufacturing and private labeling services
  • Annual production capacity: tens of thousands of sets
  • Materials: 45# carbon steel or 304# stainless steel
Packaging & Shipping

Supplied in sets of 2, packaged in durable wooden boxes with individual wrapping to prevent transit damage.

Frequently Asked Questions
Q: What's the model number of this product?
A: The model number is XGY.
Q: Is this product certified?
A: Yes, it's certified with ISO9001.
Q: What's the minimum order quantity?
A: The MOQ is 1 set.
Q: What payment terms are available?
A: We accept T/T, L/C, Western Union, MoneyGram, D/P, and D/A.
Product Images

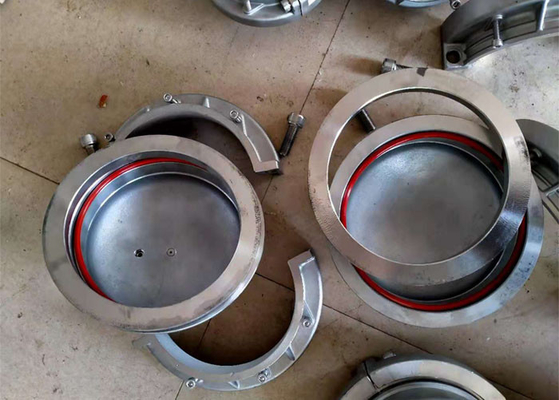

8" 219mm Plastic Pipe End Caps Easy Operation With Bolt O Ring / Vent Valve 0 8" 219mm Plastic Pipe End Caps Easy Operation With Bolt O Ring / Vent Valve 1 8" 219mm Plastic Pipe End Caps Easy Operation With Bolt O Ring / Vent Valve 2 8" 219mm Plastic Pipe End Caps Easy Operation With Bolt O Ring / Vent Valve 3
