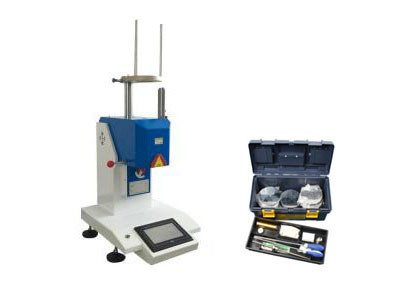

High Temperature Melt Flow Indexer , Melt Flow Index Testing Equipment With Electronic Loading

Large Image : High Temperature Melt Flow Indexer , Melt Flow Index Testing Equipment With Electronic Loading

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XNR-400D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7-15 working days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Melt Flow Indexer	Temp.range:	100-450℃
Temperature Accuracy:	±0.2°C	Load:	All 21.6kg
Time Range:	0.1~999s	The Diameter Of The Mold:	2.095±0.005 Mm
Temperature Resolution:	0.1°C	Cutting:	Manual, Automatic
Communication:	R232 Or USB	Load Mode:	Electronic Loading
Highlight:	High Temperature Melt Flow Indexer , Electronic Loading Melt Flow Indexer , Melt Flow Index Testing Equipment

High Temperature Melt Flow Index Tester With Electronic Loading For Plastic Material Flow Rate Measurement

Product Specifications

Attribute	Value
Product Name	High-Temperature Melt Flow Index Tester with Electronic Loading for Plastic Material Flow Rate Measurement
Temp.range	100-450℃
Temperature Accuracy	±0.2°C
Temperature Resolution	0.1°C
Load	All 21.6kg
Time range	0.1~999s
The diameter of the mold	2.095±0.005 mm
Cutting	Manual, automatic
Communication	R232 or USB
Load mode	Electronic loading

Product Description

High-Temperature Melt Flow Index Tester with Electronic Loading for Plastic Material Flow Rate Measurement

Summary:
Melt Flow Rate Instrument determines thermoplastic polymer flow properties per GB/T3682, ISO1133, ASTM D1238-2010. Tests PE, PP, POM, ABS, PC, nylon, fluoroplastics, etc., serving factory production and R&D.

Product Features:

High-precision Chinese-English color controllers with customized membrane keys ensure superior accuracy and longevity.
Integrated manual/automatic cutting control, accurate to 0.1s, freely sets cutting time and counts.
Built-in micro printer for test data printing.
Dual temperature control with dual imported heating rings and PT100 sensors enhances accuracy/stability.
Displacement sensor for MVR (volume method) testing, 0.01mm accuracy.
MVR test outputs directly without cutting.
Material density at specific temp calculated by MFR ratio.
Heat preservation barrel of SUS304 stainless steel resists long-term rust.
Reserved RS232/USB interface for computer connection, enabling remote control and data storage.
Manual weight loading or stepper motor-driven ball screw for automatic load adjustment.

Implementation Standards

GB/T3682-2000 "Determination of melt flow rate and melt volume flow rate of thermoplastics"

ISO 1133:1997 "Determination of thermoplastic melt mass flow rate MFR and melt volume flow rate MVR"

ASTM D1238 "Standard Test Method for Determination of Melt Flow Rate of Thermoplastics by Extrusion Plastometer"

Technical Parameters

Model No.	XNR-400C
Measuring Method	MVR & MFR & Density
Display&Print	Touch Screen, Results printed by inner printer
Warranty	1 years on heating jacket
Cutting	Auto
Max Temperature	60-450oC
Test load (Eight grades)	0.325kg, 1.200kg, 2.160kg, 3.800kg, 5.000kg, 10.000kg, 12.000kg, 21.600kg
Controlled Accuracy	±0.2oC
Measuring Range	(0.1~100)g/10min (0.01~350)cm3/10min
Display Resolution	0.01oC
Timing of the clock resolution	0.1S
Power Supply	220V 550W
Standards	GB3682, ISO1133, JB/T5456, ASTM D1238, ASTM D3364
Dimension	280mm×350mm×600mm
Weight	about 30kg (Not include the weights)
