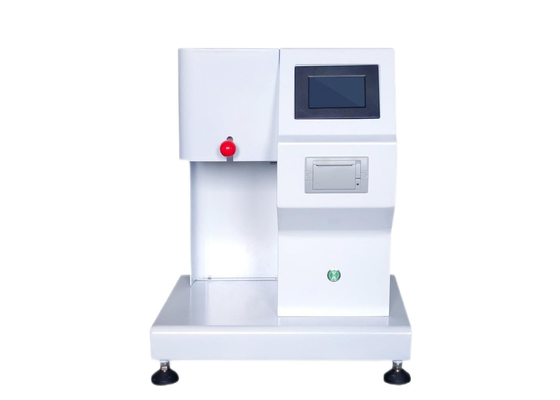

MFR MVR DENSITY Measure Melt Flow Indexer Machine For PP PE PVC Plastic

Large Image : MFR MVR DENSITY Measure Melt Flow Indexer Machine For PP PE PVC Plastic

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XNR-400C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7-15 working days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	MFR MVR DENSITY Measure With Melt Flow Indexer For PP PE PVC Plastic	Temp.range:	100-450℃
Temperature Accuracy:	±0.2°C	Temperature Resolution:	0.1°C
Load:	All 21.6kg	Time Range:	0.1~999s
The Diameter Of The Mold:	2.095±0.005 Mm	Cutting:	Manual, Automatic
Communication:	R232 Or USB	Load Mode:	Manual
Highlight:	MFR DENSITY Measure Melt Flow Indexer , MVR DENSITY Measure Melt Flow Indexer , PVC Plastic Melt Flow Index Machine

MFR MVR DENSITY Measure With Melt Flow Indexer For PP PE PVC Plastic

Product Specifications

Attribute	Value
Product Name	MFR MVR DENSITY Measure with Melt Flow Indexer for PP PE PVC Plastic
Temp.range	100-450℃
Temperature Accuracy	±0.2°C
Temperature Resolution	0.1°C
Load	All 21.6kg
Time range	0.1~999s
The diameter of the mold	2.095±0.005 mm
Cutting	Manual, automatic
Communication	R232 or USB
Load mode	Manual

Product Features

High-precision Chinese-English color controllers with customized membrane keys ensure superior accuracy and durability.
Integrated manual/automatic cutting control (0.1s precision) for free setting of time and counts.
Built-in micro printer for direct test data printing.

Technical Parameters

Model	XNR-400C
Barrel parameters	Inner hole 9.55±0.025mm
Pistons parameters	Piston head: 9.475±0.015mm
Outlet length	8.000±0.025mm
Parameters	Extrusion hole 1=2.095±0.005mm
Temperature parameter	With intelligent temperature control instrument, with four pairs of significant temperature setting control, PID parameters can be automatically set, precision up to ± 0.1 degree centigrade
Temperature range	Room Temperature~450degree centigrade
Temperature fluctuation	±0.2 ℃
Temperature uniformity	±1℃
Temperature display resolution	0.1 ℃
Display resolution	0.1 ℃
Maximum consumption	< 600W
Time display resolution	0.1s
Weight parameters	A 0.325kg B 1.2kg C 2.16kg D 3.8kg E 5kg F 10kg G 12.5kg H 21.6kg
Position detection	Electronic loading weights
Loop distance from up and down	30mm
Control precision	± 0.1mm
Test flow control	Times of cutting the material: 0~10 times
Material cutting interval	0~999s(set reference Table 2)
Control flow reaches the set temperature without volatility
Barrel temperature time	15 min.
Material be installed	1 min.
Material sample temperature recovery time	4 min.
