Versatile Differential Scanning Calorimeter for Analysis of Polymer Melting Point and Phase Transition Temperature
The DSC-500B is a high-performance differential scanning calorimeter designed for precise analysis of polymer melting points and phase transition temperatures. Its advanced features ensure accurate, reliable measurements across a wide range of industrial applications.
Key Specifications
Display System
Equipped with an LCD liquid crystal display with blue backlight, presenting real-time information including set temperature, sample temperature, gas flow rates, differential thermal signal, and switch status for comprehensive monitoring.
Communication Interface
USB interface with strong universality, stable communication, and automatic reconnection function for reliable data transmission during extended testing.
Furnace Structure
- Compact design with stepless adjustable heating rate for flexible temperature control
- Full mechanical fixing method eliminates interference with differential thermal signals
Dual Temperature Probe Design
- Primary probe for PID control of furnace temperature
- Secondary probe at sample base measures actual temperature in real-time
- Proprietary temperature control technology reduces measurement errors
Gas Atmosphere Control
Digital mass flow meter enables automatic switching between two gas flows with fast switching and short stabilization time.
Calibration & Cooling
- Includes standard samples for temperature coefficient calibration
- Dedicated cooling interface supports rapid furnace cooling between tests
Software Performance
Adapts to various screen resolutions, supports multiple Windows OS versions, and offers programmable test protocols with dozens of instructions for automated procedures.
Technical Performance
| Parameter |
Specification |
| Temperature Range |
Room temperature to 500°C |
| Temperature Resolution |
0.1°C |
| Heating Rate |
0.1 ~ 80°C/min |
| DSC Range |
0 ~ +500 mW |
| DSC Resolution |
0.01 mW |
| DSC Sensitivity |
0.1 mW |
| Power Supply |
AC 220V 50Hz |
| PC Interface |
USB |
Applications
The DSC-500B is ideal for material characterization, particularly polymers, with applications in plastics, rubber, pharmaceuticals, cosmetics, food packaging, and technical textiles.
DSC Technology Overview
Differential Scanning Calorimetry (DSC) measures heat effects under programmable temperature conditions, widely used in R&D, quality control, and failure analysis. It studies phase transitions, melting/crystallization processes, polymorphism, and solid-liquid ratios across various materials.
Standard Configuration
- DSC-500B unit (1 set)
- Aluminum crucibles (300 pcs)
- Standard test samples (indium, tin, zinc)
- Power cord and USB cable
- Software CD with manual
- Tweezers and spatulas
- Relief valve custom joints (2 pcs)
- Gas cables (5 meters each)
- Quick connectors (2 pcs)
- Software dongle
- Certificate and quality guarantee

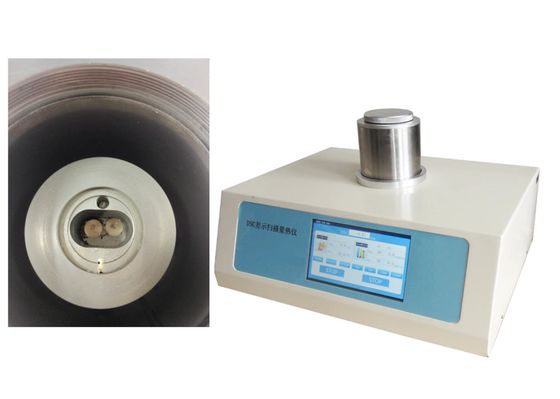

Product Images
