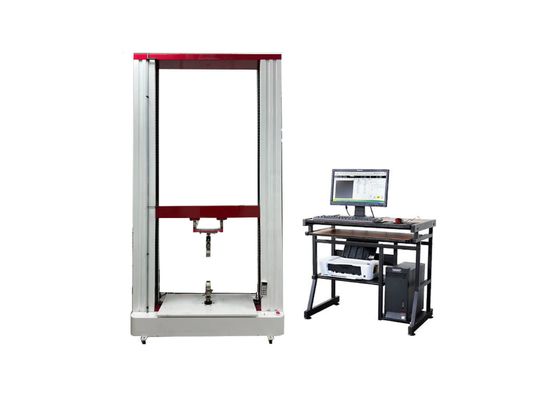

UTM Universal Testing Machine for Tensile and Compression Testing with Load Capacity of 5KN 10KN 20KN 30KN 50KN

Large Image : UTM Universal Testing Machine for Tensile and Compression Testing with Load Capacity of 5KN 10KN 20KN 30KN 50KN

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001
Model Number:	XWW-10KN

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7 work days
Payment Terms:	T/T,L/C,Western Union,MoneyGram,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	UTM Universal Testing Machine For Tensile And Compression Testing With Load Capacity Of 5KN 10KN 20KN 30KN 50KN	Place Of Origin:	Beijing, China
Customized Support:	OEM, ODM, OBM	Capacity:	5KN, 10KN, 20KN, 30KN, 50KN
Model:	XWW-5KN, 10KN, 20KN, 30KN, 50KN	Application:	PVC, PE, ABS, PP, PMMA, PC, RAHECO, Etc
Accuracy Range:	±0.5%	Certificate:	ISO, CE
Power:	220V, 50HZ(can Customized)	Warranty:	12 Months
Highlight:	UTM universal testing machine with load capacity , tensile and compression testing machine , universal testing machine 5KN to 50KN

UTM Universal Testing Machine for Tensile and Compression Testing with Load Capacity of 5KN 10KN 20KN 30KN 50KN

Product Description

Universal Testing Machine for Determination of Tensile Properties of Molded and Extruded Plastics

The Universal Testing Machine (specifically designed for the Determination of Tensile Properties of Molded and Extruded Plastics) is a high-precision mechanical testing instrument. It is used to evaluate the mechanical properties of various materials under static load conditions, including tension, compression, bending, shear, tearing, and peeling tests.

This machine is widely applicable to a broad range of materials, including but not limited to plastic sheets, plastic pipes, plastic profiles, plastic films, rubber, wires and cables, steel, and glass fiber. It provides reliable data support for analyzing the physical and mechanical properties of these materials in industrial R&D, quality control, and performance verification scenarios.

Standard Compliance

This testing machine strictly complies with the requirements of national standards, including:

GB/T 228.1-2010 Metal Materials - Tensile Testing at Ambient Temperature
GB/T 7314-2005 Metal Materials - Compression Testing Method

In terms of data processing, it fully supports compliant operations in line with multi-system standards, covering GB (China National Standards), ISO (International Organization for Standardization), ASTM (American Society for Testing and Materials), and DIN (German Institute for Standardization). This comprehensive compatibility enables the machine to effectively meet users' customized testing requirements and adhere to diverse industry-specific standards.

Software Function

Auto zero set. Max force, upper-yield strength, lower-yield strength, anti-tensile intensity anti-compression strength, elasticity modulus, percentage of elongation, etc. are calculated automatically.

Main Technical Parameters

Model	XWW-5KN/10KN/30KN/50KN
Type	Double column model
Accuracy Grade	Class 1 (Class 0.5 optional)
Force-measuring Range	1%~100%FS(0.4%~100%FS optional)
Deformation-measuring Range	2%~100%FS
Deformation-measuring Accuracy	±1%
Crossbeam Displacement Resolution	0.001mm
Crossbeam Speed Range	0.05~500mm/min
Displacement Speed Accuracy	≤ ±0.5%
Metal Extensometer Accuracy Grade	±0.5%
Test width	380(can up to 1200)mm
Tensile Space	700mm
Compression Space	1000mm

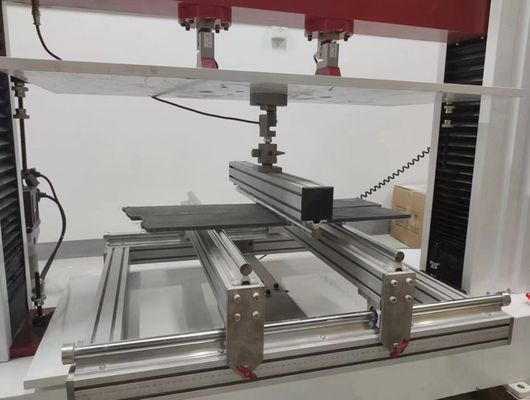

Clamps	Tensile, compression, bending fixture
PC System	Equiped with brand computer
Power Supply	AC 220V±10%, 50Hz (can be customized as customer request)
Size of the host	7004002000mm
Packing size & Weight	8005002100mm, about 350kg

Frequently Asked Questions

Q: What is an Electronic Universal Testing Machine?

A: An Electronic Universal Testing Machine is a high-precision mechanical testing instrument equipped with electronic control systems. It is designed to perform a wide range of mechanical property tests under static load conditions, such as tension, compression, bending, shearing, tearing, and peeling, to evaluate material performance.

Q: What are the main functions of an Electronic Universal Testing Machine?

A: Its core functions include testing key mechanical properties of materials, such as tensile strength, compressive strength, bending modulus, elongation at break, and shear strength. It provides quantitative data to assess material durability, toughness, and stability, supporting R&D, quality control, and compliance verification.

Q: Which materials can be tested with an Electronic Universal Testing Machine?

A: It is widely applicable to various materials, including metals (steel, aluminum, alloys), plastics (sheets, pipes, profiles), rubber, wires and cables, textiles, glass fiber, composites, and more.

Q: Which standards does the Electronic Universal Testing Machine comply with?

A: It strictly adheres to international and national standards, such as:

GB/T 228.1-2010 (Metal materials - Tensile testing at ambient temperature)
GB/T 7314-2005 (Metal materials - Compression testing method)
ISO, ASTM, and DIN standards for data processing and test procedures, ensuring authoritative and traceable results.

Q: What are the key technical parameters of an Electronic Universal Testing Machine?

A: Typical parameters include:
