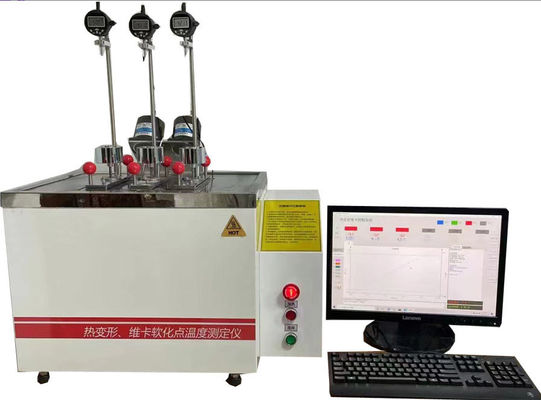

HDT VICAT Tester Computer Controlled Heat Deflection Temperature Plastic HDT and VST Test Machine for Precise Material Testing

Large Image : HDT VICAT Tester Computer Controlled Heat Deflection Temperature Plastic HDT and VST Test Machine for Precise Material Testing

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001
Model Number:	XRW-300E

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	15 sets per month

Contact Now

Detailed Product Description

Product Name:	HDT VICAT Tester Computer Controlled Heat Deflection Temperature Plastic HDT And VST Test Machine For Precise Material Testing	Controll:	By Computer
Test Station Moving Method:	Automatic	Mainframe Type:	Floor Type
Vicat Load:	10N ± 0.2 N , 50N ± 1N	Max. Deformation Deviation:	0.001mm
Deformation Measuring Rage:	0 ~ 2.5mm	Sample Frame Number:	3-6 Stations Can Be Selected
Highlight:	computer controlled HDT VICAT tester , plastic heat deflection temperature tester , precise material testing machine

HDT VICAT Tester Computer Controlled Heat Deflection Temperature Plastic HDT and VST Test Machine for Precise Material Testing

Overview

The Computer-Controlled Heat Deflection Temperature (HDT) and Vicat Softening Temperature (VST) Test Machine is specifically engineered for determining the Heat Deflection Temperature (HDT) and Vicat Softening Temperature (VST) of plastics, rubber, and other polymer materials.

As an indispensable testing instrument, it is widely utilized in R&D institutions, universities, and enterprise Quality Assurance (QA) departments—supporting material research, product development, and quality control processes.

Additionally, the machine is equipped with sample holders featuring precise vertical adjustment functionality, enabling flexible positioning to meet standardized testing requirements.

Product Introduction

The Computer-Controlled Heat Deflection Temperature (HDT) and Vicat Softening Temperature (VST) Test Machine is engineered to align with the accelerated development of the plastics industry and elevate the standards of material research and testing.

It is fully compliant with the latest international and domestic standards, including:

ISO 75-1:1993 Plastics — Determination of temperature of deflection under load
ISO 306:1994 Plastics — Thermoplastic materials — Determination of Vicat softening temperature (VST)
GB/T 1633—2000 Thermoplastic materials — Determination of Vicat softening temperature (VST)
GB/T 1634—2001 Plastics — Determination of temperature of deflection under load

Featuring advanced computerized control, the machine delivers stable performance, user-friendly operation, and a high degree of automation. These attributes position it as a state-of-the-art testing instrument for measuring the heat deflection temperature (HDT) and Vicat softening temperature (VST) of non-metallic materials, meeting the rigorous requirements of modern material testing.

Test Standards

IS075(E), IS0306(E), GB/T8802, GB/T1633, GB/T1634

Model	XRW-300E
Technical data	Equipped with 6 stations (Ability to test 6 samples simultaneously) Automatic performance: A left for moving the samples Air above 150°C, 150°C the following water or natural cooling Deformation measurement: High precision digital display dial gauge Heating Rate: 50°C/h, 120°C/h Max. Temperature Deviation: ±0.5°C Deformation deviation: 0.01mm Vicat load: 10N ± 0.2 N, 50N ± 1N Fiber stress: 0.455 Mpa and 1.82 Mpa Temperature-control Range: room temperature ~ 300°C Deformation Measuring Range: 0 ~ 10mm Sample Frame Number: 3~6 Test Span: 60~120mm Heating Power: 6KW Power Supply: 220V 50Hz Display: Color touch screen
Type and display	Desk type Using PC control system
Standards	GB/T1633, GB/T1634, ISO75, ISO306, ASTM D648, ASTM D1525, ISO 2507
Usage	Used to measure heat deformation and Vicat softening temperature of thermoplastics material of plastic and rubber in the manufacturer, scientific research and colleges.
Configuration	Main frame 1 set Electric cabinet 1 set Specimen holder 3 sets (or 3 sets) Vicat indenter 3 sets Heat deflection indenter 3 sets Displacement sensor 3 sets Power line 2 sets Connecting line 2 sets Operation manual 1 set Certificate 1 set Packing list 1 set

Tag:

HDT Vicat Testing Machine,

VICAT Softening Point Tester,

Heat Deflection Temperature Tester

Contact Details

Beijing Tonghe Testing Machine Co., ltd

Contact Person: Ms. Zoe Bao

Tel: +86 13311261667
