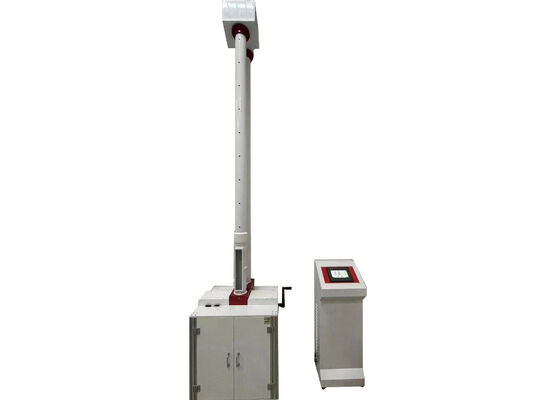

Drop Hammer Impact Testing Machine Designed to Measure Impact Toughness and Energy Absorption Characteristics Accurately

Large Image : Drop Hammer Impact Testing Machine Designed to Measure Impact Toughness and Energy Absorption Characteristics Accurately

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XJL-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Impact Testing Machine Designed To Measure Impact Toughness And Energy Absorption Characteristics Accurately	Test Type:	Drop Hammer Test
Test Range:	0-300J	Drop Hammer Quality:	0.5kg-16kg
Control Mode:	Automatic	Max. Height:	2000mm
Min. Height:	10mm	Power Supply:	AC220V/50Hz
Highlight:	drop hammer impact testing machine , impact toughness measurement machine , energy absorption testing equipment

Drop Hammer Impact Testing Machine

Designed to measure impact toughness and energy absorption characteristics accurately. Compliant with ISO 4422, ISO 3127, ASTM D2444 standards.

Product Overview

This Falling Weight Impact Tester is extensively utilized for external impact strength testing of plastic pipes, plastic sheets, and non-metallic materials.

Specifically tailored for plastic pipe applications, it accommodates testing of a comprehensive range of pipe types including PVC-U water supply pipes, low-pressure PE water supply pipes, core-layer foamed pipes, double-wall corrugated pipes, Krah pipes, steel-belt reinforced pipes, PE water supply pipes, MPP power pipes, hollow-wall winding pipes, and CPVC power pipes.

Key Features

100% Capture Anti-Rebound Mechanism: Equipped with an imported AC servo system that boasts high positioning precision and rapid lifting speed, ensuring efficient and accurate test operations.
Dual-Mode Impact Height Setting: Impact height supports both manual user-defined configuration and automatic calibration, adapting to diverse test standard requirements.
Comprehensive Automatic Safety Protection System: The instrument is fitted with automatic personal safety devices, including a sample chamber door, shock-absorbing structures, and a shock-resistant observation window—fully safeguarding operator safety during testing.
High-Precision Lifting Height Calibration: Features automatic lifting height calibration with an accuracy of ±2 mm, guaranteeing consistent and reliable impact position control.
Modular Impact Hammer Design: Adopts a combined impact hammer structure, allowing on-demand weight adjustment to match different test force requirements for various materials.
Pneumatic Anti-Secondary Impact Capture System: Operating air pressure is adjustable on-demand, significantly enhancing the stability and reliability of the secondary impact prevention function.

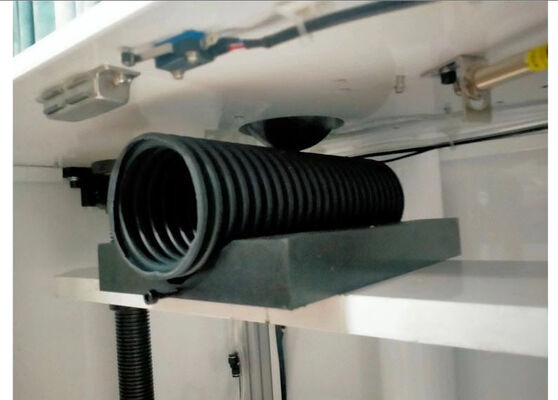

Dual-Screw Sample Support Structure: The sample is secured by a dual-screw support mechanism, delivering excellent operational stability and structural rigidity to avoid sample displacement during impact.

Compliance Standards

ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, and more.

Technical Specifications

Model	XJL-300D
Ambient temperature	10℃-35℃
Drop hammer quality	0.5kg-16kg
Hammer diameter	D25mm, D90mm, etc
Height of the fall	10mm-2000mm, error≤±2mm
Diameter of the sample	Φ16mm-Φ630mm
Deviation of impact center from fixture center	≤2mm
V-type supporting	120°
Power source	220VAC±10%
Outline dimension	715mm×700mm×3900mm
Net weight	380kg

Support and Services

We provide end-to-end technical support and comprehensive after-sales services for our Drop Hammer Test Equipment. Our dedicated team of qualified engineers and technicians delivers professional guidance on installation, routine maintenance, troubleshooting, precision calibration, and other critical operational needs—ensuring optimal performance and longevity of your equipment.

Beyond standard support, we specialize in developing tailored technical solutions to address your unique application requirements, test standards, or project-specific demands.

Packing and Shipping

The Drop Hammer Test Equipment is packaged in export-grade reinforced wooden crates to ensure maximum protection during international transit. Each crate is meticulously equipped with the core equipment, comprehensive operation & maintenance manuals, auxiliary components, and essential spare parts—all secured with shock-absorbing materials to prevent damage from vibration or impact.

For seamless international logistics, we provide a complete documentation package tailored to customs requirements. Shipping fees are quoted based on the destination country/region, shipment method, and cargo volume—we offer flexible shipping solutions to align with your timeline and budget constraints.

Product Images
