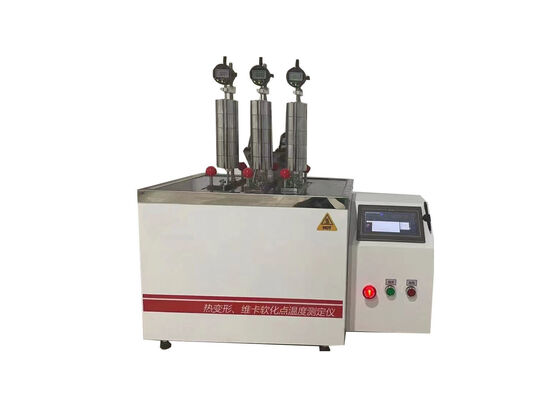

HDT VICAT Tester with Automatic Needle for Testing Heat Distortion and Vicat Softening Point of Plastics Rubber and Nylon

Large Image : HDT VICAT Tester with Automatic Needle for Testing Heat Distortion and Vicat Softening Point of Plastics Rubber and Nylon

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001
Model Number:	XRW-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	15 sets per month

Contact Now

Detailed Product Description

Product Name:	HDT VICAT Tester With Automatic Needle For Testing Heat Distortion And Vicat Softening Point Of Plastics Rubber And Nylon	Controll:	By PLC
Test Station Moving Method:	Automatic	Mainframe Type:	Desk Type
Vicat Load:	10N ± 0.2 N , 50N ± 1N	Max. Deformation Deviation:	0.001mm
Deformation Measuring Rage:	0 ~ 2.5mm	Sample Frame Number:	3-6 Stations Can Be Selected
Highlight:	HDT VICAT Tester with automatic needle , Plastics heat distortion tester , Vicat softening point tester for rubber

HDT VICAT Tester with Automatic Needle for Testing Heat Distortion and Vicat Softening Point of Plastics Rubber and Nylon

Product Overview

The Vicat Softening Point Heat Distortion Testing Machine (also referred to as the Automatic Needle Vicats Apparatus) is primarily engineered for thermal performance characterization of non-metallic materials, including plastics, rubber, and nylon. A key functional feature of the device is its ability to enable automatic elevation and lowering of the test frame at the start and conclusion of test procedures, streamlining specimen loading/unloading and test workflow efficiency.

This specialized testing instrument is dedicated to the precise determination of two critical thermal performance metrics for materials:

The heat distortion temperature of non-metallic specimens
The Vicat softening point temperature of electrical insulating materials

Its testing protocols align with industry standards for thermal property evaluation, providing reliable, repeatable data for material quality validation, R&D validation, and compliance assessment in related manufacturing and research fields.

Compliance Standards

GB/T 1633, GB/T 1634, ISO75, ISO306, ASTM D648, ASTM D1525, ISO 2507

Technical Specifications

Model	XRW-300D
Technical Data	Equipped with 6 stations (Ability to test 6 samples simultaneously) Automatic performance: Automatic movement of samples Cooling: Air above 150°C, water or natural cooling below 150°C Deformation measurement: High precision digital display dial gauge Heating Rate: 50°C/h, 120°C/h Max. Temperature Deviation: ±0.5°C Deformation deviation: 0.01mm Vicat load: 10N ± 0.2N, 50N ± 1N Fiber stress: 0.455 MPa and 1.82 MPa Temperature-control Range: Room temperature ~ 300°C Deformation Measuring Range: 0 ~ 10mm Sample Frame Number: 3~6 Test Span: 60~120mm Heating Power: 6KW Power Supply: 220V 50Hz Display: Color touch screen
Type and Display	Desk type using PLC control system
Standards	GB/T1633, GB/T1634, ISO75, ISO306, ASTM D648, ASTM D1525, ISO 2507
Usage	Used to measure heat deformation and Vicat softening temperature of thermoplastics material of plastic and rubber in the manufacturer, scientific research and colleges.
Configuration	Main frame: 1 set Electric cabinet: 1 set Specimen holder: 3 sets (or 6 sets) Vicat indenter: 3 sets Heat deflection indenter: 3 sets Displacement sensor: 3 sets Power line: 2 sets Connecting line: 2 sets Operation manual: 1 set Certificate: 1 set Packing list: 1 set

Frequently Asked Questions

What is the temperature control range and accuracy of the Vicat softening point and heat distortion testing machine?

The device typically covers a temperature range from ambient temperature up to 300°C (or 350°C for high-temperature models), with a temperature control accuracy of ±0.5°C, ensuring precise thermal environment control for material testing.

What are the standard heating rates supported by this testing machine?

It complies with international testing standards and provides two common heating rates: 50°C/h (for Vicat softening point tests) and 120°C/h (for heat distortion temperature tests), with adjustable rates available for customized testing needs.

What test loads can the machine apply for Vicat and heat distortion tests?

For Vicat tests, it supports standard loads of 10N or 50N; for heat distortion tests, the load can be adjusted within the range of 0.45MPa-1.82MPa (or customized per specific industry standards), meeting different material test requirements.

What are the requirements for the size of test specimens applicable to this machine?

It is compatible with standard specimens for non-metallic materials: for Vicat tests, the specimen is typically 10mm×10mm×4mm (or other sizes per standards); for heat distortion tests, common specimen dimensions are 80mm×10mm×4mm, with fixtures adaptable to customized specimen sizes.

What type of control system does the testing machine adopt, and what data processing capabilities does it have?

It is equipped with a microcomputer-controlled system and industrial-grade color HMI, which can automatically record test data (temperature, deformation, time), generate test curves in real time, and support automatic storage and printing of test reports.

Does the machine have position or stroke limits for the test probe, and what is the measurement accuracy of deformation?

The test probe has a precise stroke limit (typically 0-10mm), and the deformation measurement accuracy is ±0.01mm, ensuring accurate capture of material thermal deformation or softening point data.

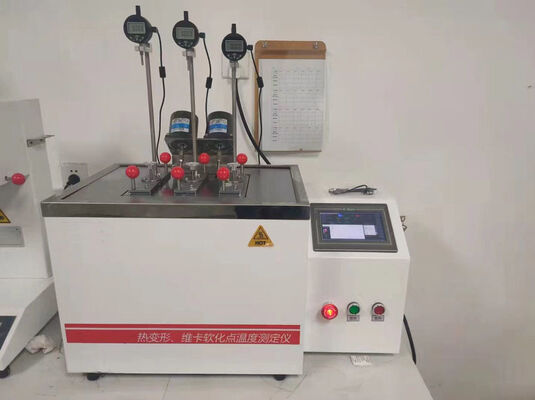

Product Images

Tag:

HDT Vicat Testing Machine,

VICAT Softening Point Tester,

Heat Deflection Temperature Tester
