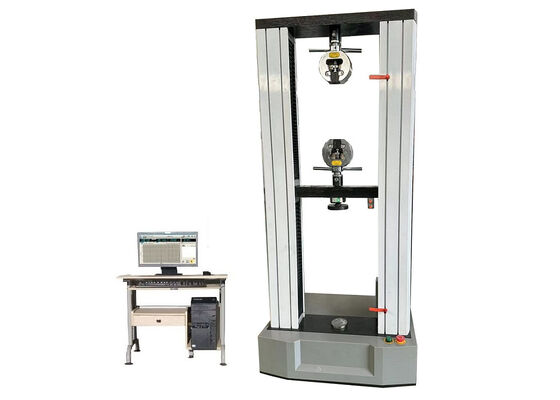

UTM Universal Testing Machine with advanced software for detailed reporting of tensile peel tear and compression strength test data

Advanced universal testing machine with comprehensive software for detailed reporting of tensile, peel, tear, and compression strength test data.

Test Specimen Scope

Applicable to laminated materials, wood, leather, rubber & plastic, metal materials, and other related materials.

Grip Compatibility & Test Types

Different specialized grips are configured for various test scenarios, enabling the performance of:

• Tensile tests
• Peel tests
• Tear tests
• Heat seal strength tests
• Adhesive strength tests
• Bending tests
• Opening force tests

Defined Load-Deformation Test

Determines the deformation of test specimens under a preset fixed load, providing data for evaluating material stability under specified load conditions.

Defined Deformation-Load Test

Measures the load required to achieve a preset fixed deformation of test specimens, supporting the assessment of material load-bearing capacity under controlled deformation.

The integrated test software supports automatic generation of comprehensive test reports in Word/Excel formats. Reports include key test results such as maximum force, elongation, tensile strength, peel strength, tear strength, and compression strength, as well as other critical mechanical property parameters—facilitating data traceability, analysis, and documentation management.

Including but not limited to ASTM, JIS, CE, ISO, EN, BS EN, SAE, FTM, and more.

This software boasts robust, all-in-one functionality that integrates dedicated test programs for tensile, compression, bending, shear, and peel tests, catering to mechanical property evaluation of metallic, non-metallic, and a wide range of other materials.

• Platform & Usability: Built on Windows-based operating system with intuitive, user-friendly interface for quick mastery and streamlined operation
• Multi-Language Support: Seamless switching among Simplified Chinese, Traditional Chinese, and English
• User Access Management: Supports up to 10 user accounts with password protection and role-based access control
• Configurable Overload Protection: Customizable overload thresholds to protect equipment and test specimens
• Unit Switching & Real-Time Data Display: One-click switching between force and displacement units with dynamic real-time display
• Multi-Curve Switching: Real-time switching between Load-Displacement, Load-Time, Displacement-Time, Stress-Strain, and Load-Elongation curves
• Dual-Channel Force Calibration System: Advanced force value correction with automatic zero-setting and calibration data import
• Multi-Standard Compliance: Fully compatible with ISO, JIS, ASTM, DIN, GB and other international standards
• Curve Overlay Comparison: Enables overlay comparison of test curves for intuitive side-by-side analysis

Supports automatic zero-calibration and computes key mechanical property parameters including maximum force, yield strengths, tensile strength, compressive strength, elastic modulus, and elongation percentage. Generates professional test reports in Word or Excel formats.
