HDT VICAT Tester instrument designed to test heat distortion temperature and VICAT softening point of polymer materials

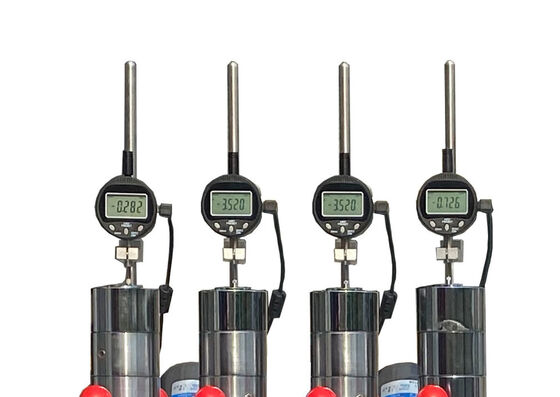

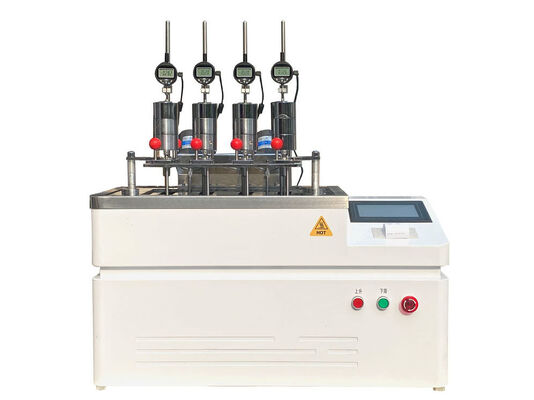

Large Image : HDT VICAT Tester instrument designed to test heat distortion temperature and VICAT softening point of polymer materials

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001 CE
Model Number:	XRW-300BT-Ⅳ

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	5~10 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	15 sets per month

Contact Now

Detailed Product Description

Product Name:	HDT VICAT Tester Instrument Designed To Test Heat Distortion Temperature And VICAT Softening Point Of Polymer Materials	Product Category:	HDT VICAT Testing Machine
Test Standards:	ISO75-1, ISO306, GB/T8802, GB/T1633, GB/T1634, ASTM D 1525-1991, ASTM D648-06	Test Frame Lifting Mode:	Auto
Current Source:	4KW, 220VAC, 50HZ	Deformation Measurement Range:	-1.00～10.00mm
Test Stations:	4	Maximum Deformation Measurement Error:	0.01mm
Highlight:	HDT VICAT Tester for polymer materials , heat distortion temperature tester , VICAT softening point instrument

HDT VICAT Tester

Engineered to keep pace with the rapid advancement of the plastics industry and elevate material R&D and testing standards, this four-frame professional HDT/VICAT Testing Machine is fully compliant with the latest international and national standards.

Compliance Standards

ISO 75-1 (Plastics - Determination of temperature of deflection under load)
ISO 306 (Plastics - Thermoplastic materials - Determination of Vicat softening temperature (VST))
GB/T 1633-2000 (Thermoplastic materials - Determination of Vicat softening temperature (VST))
GB/T 1634-2001 (Plastics - Determination of temperature of deflection under load)

Technical Specifications

Parameter	Specification
Temperature control range	Room temperature ~300℃
Maximum temperature error	±0.5℃
Heating rate	50℃/h, 120℃/h, or set between 50-120℃/h
Temperature measurement point	1
Test frame number	4
Test frame lifting mode	Auto
Range of deformation measurement	-0.1~10mm
Maximum deformation error	±0.005mm
Deformation resolution	0.001mm
Sample supports span	64mm, 100mm
Load bar and press (needle) weight	74g
Voltage and power	220V, 4KW
Thermal expansion coefficient of sample itself	<0.005/100℃
Working medium	Methylsilicone oil or transformer oil
Cooling-down method	Natural cooling above 150℃, water cooling below 150℃ or natural cooling

Instrument Features

Advanced Control System

Boasts ultra-high operational stability with simplified processes for installation, testing, and data analysis—enhancing overall efficiency and usability.

User-Centric Software Control System

Features a touchscreen interface enabling real-time display of temperature and displacement data. Supports centralized data management, automatic test report generation/printing, and seamless computer connectivity.

Four-Layer Safety Protection Mechanism

Mechanical upper temperature limit protection switch
Software-based upper temperature limit protection
Automatic shutdown upon test completion
Administrator operation authorization

High-Precision Measurement & Control System

Adopts high-performance temperature sensors and advanced capacitor grid meters to accurately detect subtle sample changes. Guarantees heating rate error of less than ±0.5℃.

Electric Sample Stage Lifting Function

Equipped with an electric sample stage lifting mechanism, eliminating potential equipment damage and operational risks associated with manual lifting.

Support and Services

We offer comprehensive technical support and after-sales services including:

Professional Installation & Commissioning
Comprehensive Training Programs
Traceable Precision Calibration
Proactive Repair & Maintenance
24/7 Technical Support

Frequently Asked Questions

What is the model number of the VICAT Testing Machine?

The model number is XRW-300F.

What certifications does the VICAT Testing Machine hold?

It holds the ISO9001 Quality Management System (QMS) certification.

Where is the VICAT Testing Machine manufactured?

It is designed and manufactured in Beijing, China.

What is the minimum order quantity (MOQ)?

The MOQ is 1 set.

What is your monthly supply capacity?

Our monthly supply capacity is 15 sets.

What is the delivery time?

The delivery time is 10-15 working days upon order confirmation.
