HDT VICAT Tester Thermal Deformation and Vicat Softening Point Testing Equipment for Plastic Material Scientific Research

Large Image : HDT VICAT Tester Thermal Deformation and Vicat Softening Point Testing Equipment for Plastic Material Scientific Research

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001 CE
Model Number:	RV-300C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	15 sets per month

Contact Now

Detailed Product Description

Product Name:	HDT VICAT Tester Thermal Deformation And Vicat Softening Point Testing Equipment For Plastic Material Scientific Research	Test Stations:	4
Heating Rate:	120±10℃/h 、 50±5℃/h	Maximum Temperature Error:	±0.5℃
Deformation Measurement Range:	0～3mm	Span Of Sample Supports:	64mm, 100mm
Maximum Deformation Measurement Error:	0.005mm	Current Source:	3KW, 220VAC, 50HZ
Highlight:	HDT VICAT tester for plastic materials , thermal deformation testing equipment , Vicat softening point tester

HDT VICAT Tester Thermal Deformation and Vicat Softening Point Testing Equipment

Product Overview

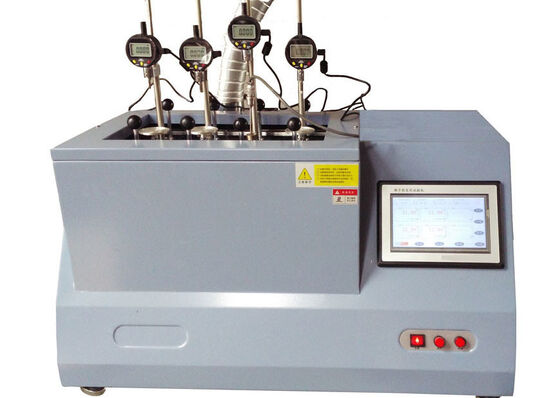

The Thermal Deformation & Vicat Softening Temperature Tester is specifically engineered to determine the heat distortion temperature (HDT) and Vicat softening temperature (VST) of thermoplastic materials. It is widely applied in plastic raw material production, product quality control, scientific research institutions, and academic teaching scenarios.

Key Features

Structural & Performance: Compact structure, sleek design, and reliable long-term performance with integrated fume exhaust and built-in cooling system
Advanced Control System: High-performance MCU control system with automatic temperature and deformation measurement, real-time data monitoring, and automatic test result calculation
User Interface: Color touch screen with English operating interface supporting fully automatic measurement
Connectivity: Compatible with computers and printers for computer-based control with comprehensive test software

Technical Specifications

Parameter	Specification
Temperature control range	Room temperature ~ 300℃
Heating rate	(120±10)℃/h, (50±5)℃/h
Maximum temperature error	±0.5℃
Deformation measurement range	0～3mm
Maximum deformation measurement error	±0.005mm
Accuracy of deformation measurement	±0.01mm
Sample holder (test stations)	4
The span of sample supports	64mm, 100mm
Load bar and press (needle) weight	71g
Supply voltage	220V±10% 10A 50Hz
Heating power	3kW

Compliance Standards

ISO75, ISO306, GB/T1633, GB/T1634, GB/T8802, ASTM D1525, ASTM D648

Support & Services

Professional Installation: On-site installation, system calibration, and operator training
Preventive Maintenance: Customized maintenance programs with calibration verification and component inspection
Technical Support: Multi-channel support via phone, email, or remote access with on-site technician dispatch

Packing & Shipping

The equipment is packaged in export-grade wooden crates with shock-absorbing materials and moisture-proof wrapping. Shipped via reputable international carriers with detailed labeling for efficient customs clearance.

Frequently Asked Questions

Q1: What is the HDT/VICAT Testing Machine (Model: XRW-300)?

The HDT/VICAT Testing Machine (Model: XRW-300) is a precision thermal performance testing instrument manufactured by TH in Beijing, China. It is specifically engineered to determine the Vicat Softening Temperature (VST) of thermosetting plastics, adhering to international testing standards.

Q2: What core advantages does the HDT/VICAT Testing Machine offer?

High-precision, repeatable test results consistent with standard tolerance requirements
User-friendly operation with intuitive human-machine interface
Minimal maintenance requirements reducing long-term operational costs

Q3: What are the key technical parameters?

Temperature control accuracy: ±0.5°C
Temperature measurement range: Ambient temperature to 300°C
Heating rate: 50°C/h or 120°C/h (switchable)

Q4: Which materials are compatible with this testing machine?

Designed for testing thermosetting plastics including polyester resin, epoxy resin, unsaturated polyester resin, phenolic resin, and polyurethane.

Q5: What is the warranty policy?

TH provides a 12-month official warranty with free technical support and replacement of defective components caused by manufacturing faults.
