Six Column Hydraulic Universal Testing Machine with Computer Display for Tensile Compression Bending and Shear Material Testing

Large Image : Six Column Hydraulic Universal Testing Machine with Computer Display for Tensile Compression Bending and Shear Material Testing

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001 CE
Model Number:	WEW-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Six Column Hydraulic Universal Testing Machine With Computer Display For Tensile Compression Bending And Shear Material Testing	Model:	WEW-300D
Structure:	6 Columns	Control Way:	Manual
Max.load:	300KN	Max. Tension Test Space:	690(can Customize)
Max.Compression Test Space:	590mm (can Customize)	Load Range:	±1%-100%FS
Electronic Extension Meter:	10/50	Round Specimen Range:	φ10~φ30mm
Flat Specimen Clamping Range:	2-20mm	Clamping Method:	Hydraulic Clamping
Highlight:	hydraulic universal testing machine with computer display , six column material testing machine , tensile compression bending shear testing machine

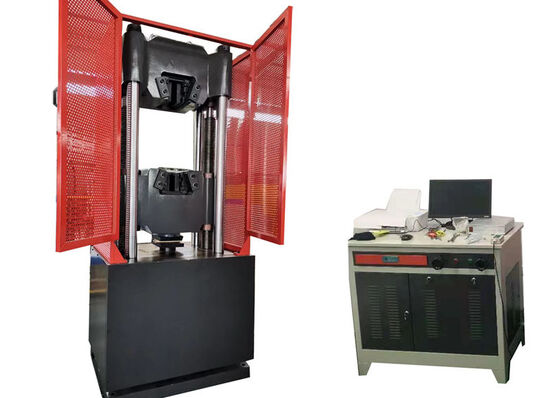

Six Column Hydraulic Universal Testing Machine with Computer Display for Tensile Compression Bending and Shear Material Testing

Product Overview

This testing machine adopts a robust six-column frame structure and hydraulic loading system, with computerized test result display functionality. It features user-friendly operation and delivers accurate, highly reliable test data. The equipment is applicable for tensile, compression, bending, and shear tests on conventional steel and a diverse range of other materials.

Price Advantage

We have intensified our in-house R&D initiatives and established a dedicated machining center to independently manufacture core components. This vertical integration strategy enables us to cut down intermediate process costs while maintaining consistent, premium product quality.

Our high-performance testing equipment delivers far greater long-term cost savings compared to low-cost, inferior alternatives. By minimizing equipment failure rates, we not only reduce customers' maintenance expenses but also enhance the overall operational efficiency of the equipment. This exceptional cost-performance ratio translates into tangible, long-lasting value for our customers.

Compliance Standards

ISO 6892, ISO 6934 BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.

Technical Specifications

Parameter	Specification
Model	WEW-300D
Structure	6 Column (Four Columns Two Ball Screws)
Control Way	Manual
Max. Load	300 KN (30 TONS)
Load Accuracy	≤± 1%
Load Range	1%-100%FS
Load Resolution	1/300000
Deformation Measurement Range	1%~100%FS
Deformation Accuracy	≤±1%
Displacement Resolution	0.01mm
Displacement Error	≤±0.5%
Max. Piston Stroke	240mm
Max. Piston Moving Speed	0-50mm/min Stepless Speed Adjusting
Crossbeams Lifting Speed	240mm/min
Max. Tension Test Space	695mm (Can Be Customized)
Max. Compression Test Space	595mm (Can Be Customized)
Column Effective Spacing	510mm
Clamping Method	Hydraulic Automatic Clamp
Round Specimen Clamping Range	φ10~φ30mm
Flat Specimen Clamping Range	2-20mm
Flat Specimen Clamping Width	90mm
Flat Specimen Clamping Length	100mm
Compression Plate Size	Ø160mm
Bending Roller Distance	420mm
Width Of Bending Rollers	120mm

Safety Protection Features

When the applied test force exceeds 3% of the maximum test force, the overload protection mechanism is activated automatically, and the oil pump motor shuts down immediately.
When the piston travels to the upper limit position, the upper position limit protection is triggered promptly, and the oil pump motor ceases operation.
When the crossbeam descends to the preset position, the lower position limit protection engages, and the reducer stops running immediately.

Packing and Shipping

Frequently Asked Questions

Q1: Is your company a trading firm or a manufacturing factory?

A1: We operate as a factory-integrated trading enterprise, boasting 18 years of specialized expertise in the testing instruments sector and 14 years of extensive international export experience.

Q2: How can I select the most suitable product for my testing needs?

A2: Our team of technical specialists will provide tailored, optimal recommendations once you specify your intended test types and required technical specifications.

Q3: What are your delivery terms?

A3: In most cases, we maintain in-stock inventory at our factory for immediate shipment. For non-stock models, the standard lead time is 15-20 working days upon receipt of the deposit. If you have urgent delivery requirements, we can arrange expedited production and logistics solutions on a case-by-case basis.

Q4: Do you provide customization services?

A4: Absolutely. We supply not only standard testing equipment models but also fully customized testing solutions engineered to your exact specifications. Please feel free to share your detailed requirements, and we will make every effort to fulfill them.
