Drop Hammer Impact Testing Machine Designed to Deliver Precise Impact Loads for Material Toughness and Fracture Analysis

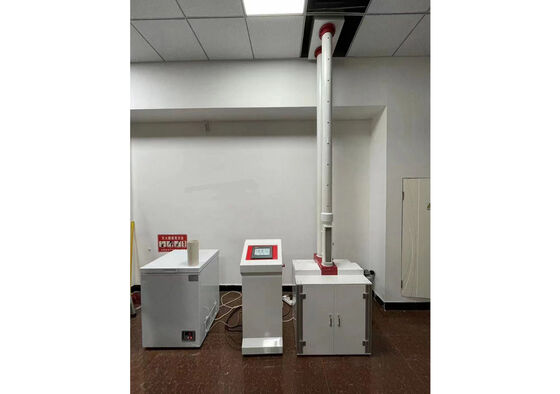

Large Image : Drop Hammer Impact Testing Machine Designed to Deliver Precise Impact Loads for Material Toughness and Fracture Analysis

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XJL-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Impact Testing Machine Designed To Deliver Precise Impact Loads For Material Toughness And Fracture Analysis	Test Type:	Drop Hammer Test
Test Range:	0-300J	Drop Hammer Quality:	0.5kg-16kg
Control Mode:	Automatic	Max. Height:	2000mm
Min. Height:	10mm	Power Supply:	AC220V/50Hz
Highlight:	Drop hammer impact testing machine for material toughness , Precise impact load testing machine , Fracture analysis drop hammer tester

Drop Hammer Impact Testing Machine

Designed to deliver precise impact loads for material toughness and fracture analysis, this testing instrument evaluates the external impact resistance of circular cross-section thermoplastic pipes.

Product Overview

Test specimens are impacted by a falling striker of predefined mass and geometry, which is dropped from a predetermined height onto designated positions along the circumference of the specimen. This test method enables the accurate estimation of the actual impact failure rate of the target product batch or the extruder production run.

Key Features & Structure

Anti-rebound Mechanism: 100% rebound capture rate with imported AC servo system for high positioning accuracy and rapid lifting speed
Impact Height Configuration: Supports user-defined setting and automatic calibration for diverse test requirements
Integrated Safety Protection: Complete automatic safety protection including sample chamber door, shock-absorbing assemblies, and observation windows
Automatic Height Calibration: ±2 mm calibration accuracy
Modular Impact Hammer: Combined structural design with flexible weight adjustment via counterweight configuration
Pneumatic Anti-secondary Impact Capture: Adjustable operating air pressure for enhanced reliability
Twin-screw Sample Support: Excellent stability and rigidity during impact testing

Compliance Standards

ISO3127, ISO4422, BS EN744, BS EN1411, ASTM D2444, etc.

Technical Specifications

Parameter	Specification
Model	XJL-300D
Ambient Temperature	10℃-35℃
Drop Hammer Quality	0.5kg-16kg
Hammer Diameter	D25mm, D90mm, etc
Height of the Fall	10mm-2000mm, error≤±2mm
Diameter of the Sample	Φ16mm-Φ630mm
Deviation of Impact Center	≤2mm
V-type Supporting	120°
Power Source	220VAC±10%
Outline Dimension	715mm×700mm×3900mm
Net Weight	380kg

Technical Support & Services

We provide comprehensive technical support and after-sales services dedicated to our Drop Hammer Test Equipment. Our team of seasoned engineers and certified technicians delivers professional assistance covering on-site installation, routine maintenance, rapid troubleshooting, precision calibration, and a full range of other technical services. We also specialize in developing tailored technical solutions engineered to address your unique testing requirements.

Our professional support team is available 24/7 to address any technical inquiries or service-related concerns.

Packing & Shipping

The Drop Hammer Test Equipment is packed in robust export-grade wooden crates to ensure optimal protection against shock and vibration during transit. Each crate contains the main equipment unit, detailed operation and maintenance manuals, and all accompanying spare parts and accessories. Crates are prominently labeled with equipment name, model number, and unique serial number for streamlined identification.

Shipping includes complete customs and logistics documentation (commercial invoice, packing list, certificates). Shipping costs are calculated based on delivery destination and selected shipping mode (sea freight, air freight).

Frequently Asked Questions

What is Drop Hammer Test Equipment?

The Drop Hammer Test Equipment is a professional impact testing instrument designed and manufactured by TH, Beijing, China, dedicated to evaluating the impact resistance performance of various materials and products.

What is the purpose of Drop Hammer Test Equipment?

The core purpose is to assess the impact resistance of tested objects, verifying product quality and ensuring compliance with relevant industry technical specifications.

What products can Drop Hammer Test Equipment be used for?

Applicable for impact resistance testing of PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, low-pressure transmission pipes, core-layer foam pipes, double-wall corrugated pipes, PE water supply pipes, and rigid plastic sheets.

What is the accuracy of Drop Hammer Test Equipment?

The equipment achieves a high measurement accuracy of up to ±0.5%.

What is the maximum testing energy of Drop Hammer Test Equipment?

The maximum test energy capacity is 300 joules (300J).
