Hydrostatic Pressure Testing Machine Providing Accurate Pressure Control and Leak Detection for Assurance in Manufacturing

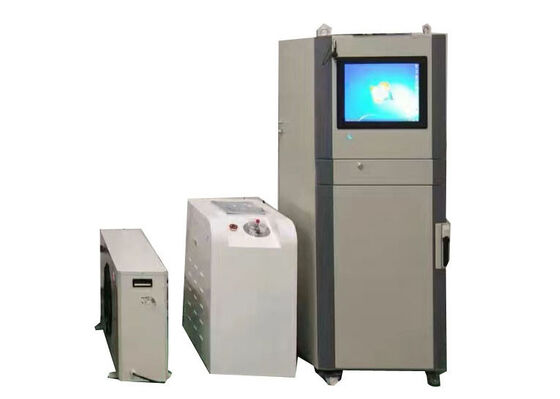

Large Image : Hydrostatic Pressure Testing Machine Providing Accurate Pressure Control and Leak Detection for Assurance in Manufacturing

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001 , CE
Model Number:	XGY-20C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Providing Accurate Pressure Control And Leak Detection For Assurance In Manufacturing	Testing Range:	0-16MPA
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
End Caps:	Φ8-1800mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	Hydrostatic pressure testing machine with leak detection , Accurate pressure control testing machine , Manufacturing hydrostatic pressure tester

Hydrostatic Pressure Testing Machine

Providing accurate pressure control and leak detection for assurance in manufacturing, this hydrostatic pressure testing machine delivers exceptional precision and reliability for quality control applications.

Applications

With a test pressure range of 0-16MPa (adjustable from 0.2MPa upwards), this machine precisely assesses the mechanical strength and long-term durability of pipes, validating their operational safety and compliance with industry standards. It integrates comprehensive safety protection mechanisms including overpressure and overtemperature safeguards.

The JINHAIHU XGY Hydrostatic Pressure & Burst Testing Machine is designed for versatile industrial applications, covering water supply systems, drainage networks, gas transmission pipelines, and other critical piping infrastructure. It serves engineers, technicians, and quality control professionals across multiple industrial sectors.

Product Features

Exceptional measurement accuracy with a precision range of -1% to +2% ensures unparalleled reliability for thermoplastic pipe quality assessment. This level of accuracy is essential for rigorous quality control as minor deviations can significantly impact pipe performance and service life.

The wide test temperature range of 15℃ to 95℃ allows precise replication of diverse real-world operating environments, verifying that pipes maintain structural integrity under extreme conditions. This is particularly critical for thermoplastic pipes used in chemical processing, oil and gas production, water treatment, and other demanding industrial sectors.

Custom OEM services enable collaborative design with our technical team to develop testing solutions aligned with your unique specifications and application demands, including specific pipe diameter ranges, customized control modes, and specialized functions.

Fully automatic test mode with intuitive LCD screen interface
Test temperature range: 15-95℃
Applicable pipe diameter scope: Φ8-1800 mm
Multi-layered safety safeguards including overpressure and overtemperature protection
Compatible with plastic pipes including PPR, PE, PVC, PB, and PERT
Minimizes operational complexity and human error

Compliance Standards

ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335

Technical Parameters

Model	XGY-16C
Diameter range	Φ8-1800mm
Stations	3, 5, 6, 12, 15, 18, 20, 25, 50, 100 (customizable)
Control mode	Micro-control, industrial PC control
Display mode	Industrial PC LCD color display
Storage mode	PC storage
Print mode	Color printer output
Test pressure range	0.1-16MPa
Control accuracy	±1%
Display resolution	0.01MPa
Working range	5%~100%FS
Indication error	±1%
Timer range	0~10000h
Timer accuracy	±0.1%
Timer resolution	1s
Power	380V 50Hz three-phase four-wire 1.5KW
End caps models	from Φ16 to 630mm

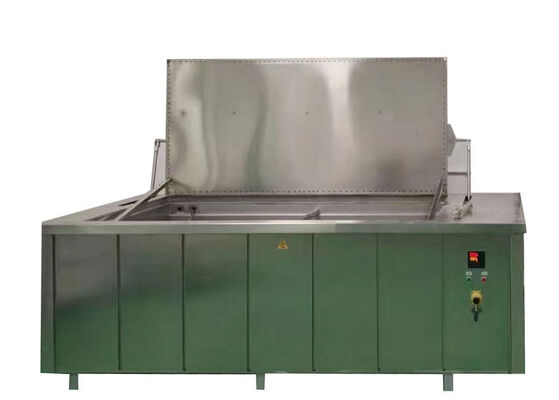

Water tank size	according to pipe size
Temperature range	15-95℃
Dimensions (three stations)	715×625×1700(mm) or others

Frequently Asked Questions

Which pipe materials and diameter ranges are compatible with the Hydrostatic Pressure Testing Machine?

The machine is specifically engineered for plastic pipes including PPR, PE, PVC, PB, and PERT, supporting an applicable pipe diameter range of Φ8-1800 mm. It accommodates most industrial plastic pipe types, making it versatile for manufacturing and quality control scenarios.

What is the test pressure range and measurement accuracy?

It features a wide test pressure range of 0.2-16 MPa (adjustable for customized requirements) with a measurement accuracy of ±1% FS (Full Scale). This high precision ensures reliable data for evaluating pipe pressure resistance and structural integrity.

What is the test temperature range, and how does it support practical application scenarios?

The machine offers a test temperature range of 15-95℃ with a temperature control accuracy of ±0.5℃. It can accurately replicate real-world operating environments (e.g., high-temperature water supply, industrial fluid transport), verifying pipe durability under extreme temperature conditions.

What automation capabilities does the machine provide to enhance testing efficiency?

It adopts a fully automatic test mode, integrating automatic pressure regulation, data collection, and result analysis. Equipped with an intuitive LCD screen, it enables one-click operation, automatic zero-point calibration, and real-time data display—minimizing human error and supporting high-volume testing workflows.

What safety protection mechanisms are integrated to ensure operational security?

The machine is equipped with multi-layered safety safeguards, including overpressure protection (automatic pressure relief when exceeding the set threshold) and overtemperature protection (automatic shutdown if temperature deviates from the range). Additional protections against short circuits, leakage, and misoperation comply with international industrial safety standards.
