Hydrostatic Pressure Testing Machine designed to meet industrial pressure testing requirements with performance and easy maintenance

Large Image : Hydrostatic Pressure Testing Machine designed to meet industrial pressure testing requirements with performance and easy maintenance

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-16C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Designed To Meet Industrial Pressure Testing Requirements With Performance And Easy Maintenance	Testing Range:	0-16MPA
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
End Caps:	Φ16-630mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	industrial hydrostatic pressure tester , high-performance pressure testing machine , easy-maintenance hydrostatic test equipment

Hydrostatic Pressure Testing Machine

Product Overview

Designed to meet industrial pressure testing requirements with superior performance and easy maintenance, this hydrostatic pressure testing machine delivers reliable testing solutions for plastic pipes and fluid conveyance systems.

Applications

The Hydrostatic & Burst Testing Machine is purpose-built to conduct instantaneous burst testing and prolonged pressure endurance testing on plastic pipes intended for fluid conveyance. It accurately quantifies failure time for thermoplastic pipes under sustained constant pressure conditions.

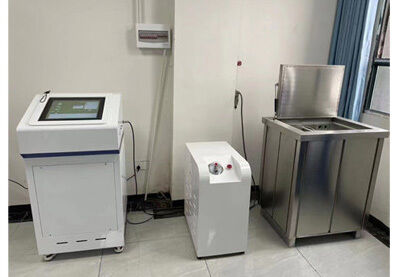

The core configuration comprises three integrated modules: a pressure control main unit, a thermostatic test chamber, and dedicated sealing end caps. With exceptional measurement precision, streamlined mechanical structure, robust operational stability, and user-friendly operation, this instrument serves as an indispensable testing solution for research institutions, quality inspection authorities, and plastic pipe manufacturing facilities worldwide.

Operating Principle

Our Hydrostatic Pressure Testing Machine operates on a parameter-driven control principle. Users input key pipe metrics including hoop stress, wall thickness, and average external diameter via the PC interface, which then autonomously computes the required test pressure values. Calculated data is transmitted to the lower-level control unit (an embedded MCU system) through the RS232 serial communication port, enabling highly precise pressure regulation and consistent, repeatable test outcomes with zero margin for manual error.

Equipped with real-time pressure-time and pressure-temperature curve plotting functionality, the tester allows for dynamic, in-situ monitoring of test progress and result visualization. With a maximum pressure rating of 160 bar (16 MPa), it delivers broad applicability across diverse pipe testing scenarios. Complementing this, its wide temperature test range of 10-95 °C facilitates performance evaluation of pipe products designed for service in extreme thermal environments.

Key Features

Product Name: Hydrostatic Pressure Testing Machine
Operational Principle: Parameter-driven control with autonomous pressure calculation
Customization Capability: OEM Services Available
Model Designation: XGY-16C
Test Temperature Range: 15-95 °C

Compliance Standards

ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335

Technical Specifications

Parameter	Specification
Model	XGY-16C
Diameter range	Φ16-630mm
Stations	3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc (customizable)
Control mode	Micro-control, industrial PC control
Display mode	Industrial PC LCD color display
Storage mode	PC storage
Print mode	Color printer output
Test pressure range	0.1-16MPa
Control accuracy	±1%
Display resolution	0.01MPa
Working range	5%~100%FS
Indication error	±1%
Timer range	0~10000h
Timer accuracy	±0.1%
Timer resolution	1s
Power	380V 50Hz three-phase four-wire 1.5KW
End caps models	from Φ16 to 630mm
Water tank size	according to pipe size
Temperature range	15-95℃
Dimensions (three stations)	715×625×1700(mm) or customized

Support & Services

We deliver comprehensive technical support and after-sales service tailored for Plastic Pipe Hydrostatic Pressure Testing Machines. Backed by a team of seasoned technical specialists with in-depth industry expertise, we offer premium services including:

Professional on-site installation, commissioning, and system debugging
Timely fault diagnosis, troubleshooting, and expert technical consultation
Proactive maintenance programs and responsive repair solutions
Supply of genuine OEM spare parts and high-performance consumables
Regular software patches, functional upgrades, and system optimization services

We uphold an unwavering commitment to delivering exceptional customer-centric support. Our technical team remains on standby to address all your inquiries—whether technical, service-related, or operational.

Frequently Asked Questions

What is the brand and place of manufacture?

This Plastic Pipe Hydrostatic Pressure Testing Machine carries the brand name TH, with its manufacturing facility situated in Beijing, China. Production strictly follows standardized quality assurance protocols to ensure product consistency and reliability.

What is the fundamental purpose of this machine?

The machine is engineered for two core testing objectives: conducting hydrostatic pressure endurance assessments and executing burst strength validation on plastic pipes. These tests are critical for verifying structural integrity and pressure-bearing capability in real-world operational scenarios.

What specific pipe materials can be tested?

It accommodates testing for plastic pipes and composite pipes, covering mainstream materials including PP-R, PP-B, PP-A, PVC, PE, PE-X, and other comparable pipe variants used in industrial and construction applications.

What is the full-scale accuracy specification?

The equipment delivers a full-scale accuracy rating of 0.1% FS (Full Scale). This high-precision performance guarantees that pressure measurement data is both repeatable and trustworthy, meeting stringent material testing requirements.

What is the maximum pressure capacity?

The machine supports a maximum test pressure of 10 MPa, equivalent to 100 bar or 1,450 psi. This broad pressure range enables it to fulfill testing needs of most industrial-grade plastic pipes across diverse application fields.
