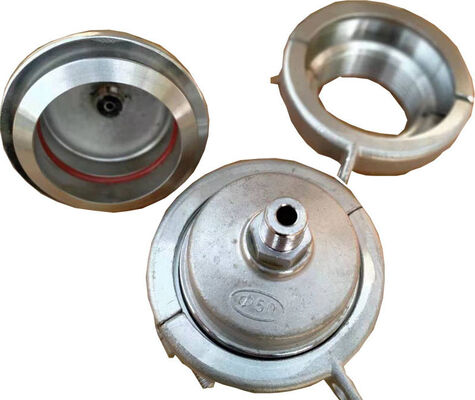

End Closure For Plastic Pipes including bolt O ring and vent valve assembly for hydrostatic pipe static pressure testing

Large Image : End Closure For Plastic Pipes including bolt O ring and vent valve assembly for hydrostatic pipe static pressure testing

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001
Model Number:	XGY

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	3~5 work days
Payment Terms:	T/T,L/C,Western Union,MoneyGram,D/P,D/A
Supply Ability:	1000 sets per month

Contact Now

Detailed Product Description

Product Name:	End Closure For Plastic Pipes Including Bolt O Ring And Vent Valve Assembly For Hydrostatic Pipe Static Pressure Testing	Material:	304# Stainless Steel
Technics:	Precision Casting	Type:	Plug
Model:	φ 50mm	Exterior Size(mm*mm):	φ110*100mm
Weight:	3.0KG	Sealing Ring:	O-ring
Highlight:	plastic pipe end closure with O ring , hydrostatic pipe testing end closure , static pressure test pipe end cap

End Closure For Plastic Pipes

Complete end closure assembly including bolts, O-ring, and vent valve for hydrostatic pipe static pressure testing applications.

Application Range

Designed for pipe sample sealing and packaging for testing purposes. Specifically engineered for PVC, PE, PP-R, ABS, and composite pipes to support hydrostatic pressure testing, burst testing, negative pressure testing, and other pipe performance validation procedures.

Configuration

This assembly is provided as a fully integrated kit with bolts, O-rings, vent valves, and all associated components pre-installed for immediate deployment.

Fixture Structure

Features a semi-circular pot structure design that ensures:

Effortless installation and user-friendly operation
Airtight leakage-proof performance
Stable sealing during all test procedures
Customizable diameter options tailored to specific requirements
Material options: 304 stainless steel or carbon steel for enhanced durability

Technical Parameters

Parameter	Specification
Product Name	End Caps
Color	Silvery White
Outline Dimension	φ110 × 100mm
Applicable Pipe Diameter	φ50 ~ φ50+0.5mm
Maximum Pressure	10 MPA
Seal Ring Size	φ48 × 3.5mm
End Cap Connector	1/4" (customizable)
Packing	Standard Export Wooden
Certificate	ISO
Delivery Time	3-5 Days

Frequently Asked Questions

What is the structural design of this pipe test sealing fixture, and what advantages does it offer?

The fixture adopts a semi-circular pot structure, which delivers three core advantages: effortless installation, airtight leakage-proof sealing performance, and user-friendly operation, ensuring stable and reliable sealing throughout all pipe test procedures.

What pipe materials and test types is this sealing fixture compatible with?

It is purpose-engineered for sealing and packaging pipe specimens including PVC, PE, PP-R, ABS, and composite pipes. It provides robust sealing support for hydrostatic pressure testing, burst testing, negative pressure testing, and other pipe performance verification protocols.

Can the fixture's size be customized to match different pipe diameters?

Yes, the fixture offers customizable diameter options fully tailored to customer-specific requirements, making it adaptable to a wide range of pipe sizes for diverse testing scenarios.

What material options are available for this pipe test sealing fixture, and why are these materials selected?

The fixture is available in two material grades: 304 stainless steel and carbon steel. These materials are chosen for their enhanced durability and excellent compatibility with diverse working conditions, ensuring long service life even under frequent test operations.

Does this fixture ensure leak-free performance during high-pressure testing?

Absolutely. Its airtight structural design guarantees leakage-proof sealing performance, which is critical for maintaining test accuracy in high-pressure scenarios such as hydrostatic pressure testing and burst testing.

What core benefits does this fixture bring to pipe testing workflows?

It streamlines testing processes with easy installation and operation, ensures test data reliability via leak-free sealing, accommodates various pipe sizes through customization, and boasts long-term durability thanks to premium material selections.

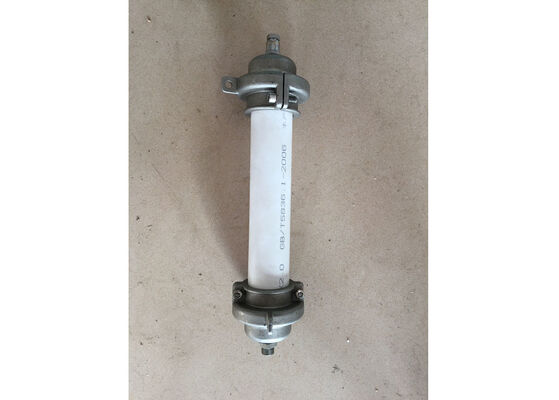

Product Images
