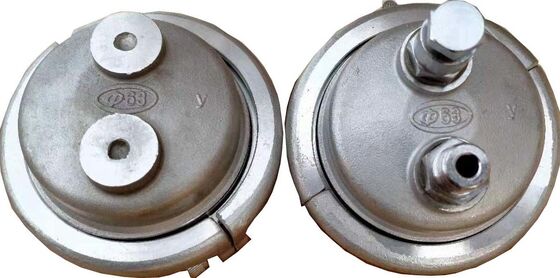

End Closure For Plastic Pipes Designed To Seal Test Pipes Securely With Durable Seal Rings And Metal Rings For Testing Results

Large Image : End Closure For Plastic Pipes Designed To Seal Test Pipes Securely With Durable Seal Rings And Metal Rings For Testing Results

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001
Model Number:	XGY

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	3~5 work days
Payment Terms:	T/T,L/C,Western Union,MoneyGram,D/P,D/A
Supply Ability:	1000 sets per month

Contact Now

Detailed Product Description

Product Name:	End Closure For Plastic Pipes Designed To Seal Test Pipes Securely With Durable Seal Rings And Metal Rings For Testing Results	Material:	304# Stainless Steel
Technics:	Precision Casting	Type:	Plug
Model:	φ 63mm	Exterior Size(mm*mm):	φ118*90mm
Weight:	3.6KG	Sealing Ring:	O-ring
Highlight:	plastic pipe end closure , durable seal ring pipe closure , metal ring test pipe seal

End Closure For Plastic Pipes

Designed to seal test pipes securely with durable seal rings and metal rings for accurate testing results.

Range of Application

This specialized assembly is purpose-built for sealing and encapsulating pipe specimens including PVC, PE, PP-R, ABS, and composite pipes. It serves as a critical component for validations such as:

Hydrostatic pressure testing
Burst testing
Negative pressure testing
Other pipe performance assessment protocols

Featuring a semi-circular pot structural design, it delivers streamlined installation, hermetic leak-tight sealing, and intuitive operation—ensuring consistent, stable sealing integrity throughout the entire test cycle.

Available in custom diameter configurations tailored to individual specifications, with material options including 304 stainless steel and carbon steel for superior durability and compatibility.

Working Principle

End caps function as the core sealing components for pipe test specimens. High-temperature-resistant silicone sealing rings are pre-embedded in dedicated seal grooves, while integrated metal rings apply uniform compression to these silicone rings.

The O-ring achieves reliable sealing via elastic deformation induced by external compressive force, securing consistent sealing integrity throughout the test cycle.

Configuration

Delivered as a fully pre-assembled unit including bolts, O-rings, vent valves, and all associated functional parts—eliminating on-site assembly efforts.

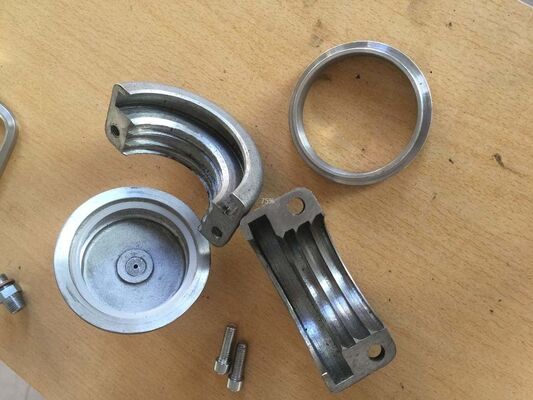

Fixture Structure

The semi-circular pot-type design ensures streamlined installation, hermetic leak-proof performance, and intuitive operational handling for reliable sealing throughout all pipe test cycles.

Technical Parameters

Parameter	Specification
Product Name	End Caps
Color	Silvery White
Outline Dimension	φ118 × 90mm
Applicable Pipe Diameter	φ63–φ63.5mm
Maximum Pressure	10 MPA
Seal Ring Size	φ62 × 3.5mm
End Cap Connector	1/4" (customizable)
Packing	Standard Export Wooden
Certificate	ISO
Delivery Time	3–5 Days
