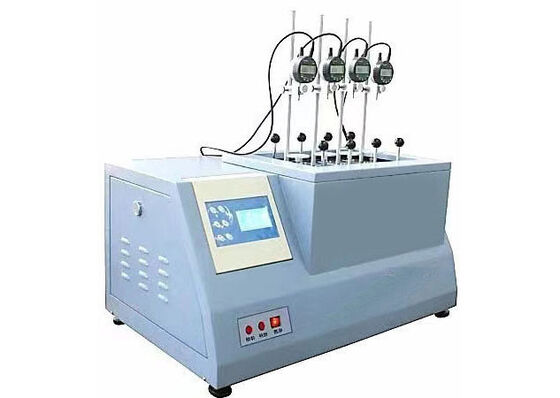

HDT VICAT Tester testing apparatus for determining heat distortion temperature and VICAT softening point in polymer samples

HDT VICAT Tester testing apparatus for determining heat distortion temperature and VICAT softening point in polymer samples
HDT VICAT Tester testing apparatus for determining heat distortion temperature and VICAT softening point in polymer samples

Large Image :  HDT VICAT Tester testing apparatus for determining heat distortion temperature and VICAT softening point in polymer samples

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: TH
Certification: ISO9001 ，CE
Model Number: XRW-300F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 10~15 work days
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Product Name: HDT VICAT Tester Testing Apparatus For Determining Heat Distortion Temperature And VICAT Softening Point In Polymer Samples Load Range: (0.864—49.03)N
Deflection Resolution: 0.01mm Heating Power: 4KW
FAQ: Q: What Is HDT VICAT Testing Machine? A: HDT VICAT Testing Machine, Is A Product Manufactured By JHH, Model XRW-300, Which Originated In Beijing, China. It Is Used To Measure The Vicat Softening Temperature Of Thermosetting Plastics. Q: What Advantages Doe Deformation Measurement Range: 0～3mm
Heating Rate: 120±10℃/h 、 50±5℃/h Power Supply: 220V/50HZ/20A
Current Source: 4KW, 220VAC, 50HZ
Highlight:

HDT VICAT Tester for polymer samples

,

heat distortion temperature testing apparatus

,

VICAT softening point tester

HDT VICAT Tester
Testing apparatus for determining heat distortion temperature and VICAT softening point in polymer samples
Product Overview
This HDT Vicat Testing Machine features a load application range of (0.864-49.03) N, delivering exceptional versatility to accommodate the mechanical testing requirements of a diverse array of materials. Its temperature control span extends from ambient temperature up to 300℃, enabling comprehensive characterization of material thermal properties across a broad operational temperature spectrum.
Equipped with dual selectable heating rates, the instrument offers precise thermal control tailored to different test standards: a heating rate of 50℃/h equates to a temperature rise of (12±1)℃ per 6 minutes, while a 120℃/h rate corresponds to a (5±0.5)℃ increase within the same 6-minute interval.
Boasting a maximum temperature deviation of merely ±0.5℃, the machine ensures unparalleled accuracy and repeatability of test results. The recommended heating media are methyl silicone oil or transformer oil, with a core requirement that the flash point of the chosen medium exceeds the machine's maximum test temperature.
Technical Specifications
Product Name Vicat Softening Point Analyzer
Product Type Hydraulic Digital Vicat Test Machine
Power Supply 220V/50HZ/20A
Load Range (0.864-49.03)N
Heating Power 4KW
Heating Rate 120±10℃/h, 50±5℃/h
Test Stations 4
Span of Sample Supports 64mm, 100mm
Standards IS075(E), IS0306(E), GB/T8802, GB/T1633, GB/T1634, etc.
Temperature-control Range Room temperature ~ 300℃
Support and Services
Our comprehensive technical support and after-sales service package includes:
  • On-site Installation & Commissioning
  • Hands-on Training & Technical Consultation
  • Periodic Calibration & Preventive Maintenance
  • Prompt Component Repair & Genuine Spare Parts Replacement
Backed by our team of seasoned technical specialists, we deliver tailored support that guarantees optimal operational performance.
Packaging and Shipping
The HDT VICAT Testing Machine is encased in export-grade heavy-duty wooden crates engineered to withstand rough handling during transit.
Packaging Specifications
Each package includes essential accessories and complete documentation packages. All crates are clearly marked with standardized identification and handling instructions.
Shipping Arrangements
The machine is consigned via globally recognized logistics carriers. Shipping costs are calculated based on package weight, dimensions, and destination. Standard transit time typically ranges from 5 to 10 business days.
Frequently Asked Questions
What core material performance indicators can the HDT VICAT Testing Machine measure, and what types of materials is it suitable for?
This precision instrument is primarily designed to test heat deflection temperature (HDT) and Vicat softening temperature (VST). It is mainly applicable to plastic materials and related non-metallic materials, providing critical data support for material R&D and quality control.
What is the temperature control range and temperature control accuracy of the HDT VICAT Testing Machine?
The machine has a temperature control range from ambient temperature to 300℃, with maximum temperature error of only ±0.5℃, ensuring accuracy and repeatability of test results.
What is the load application range of the HDT VICAT Testing Machine, and what is the significance of this range?
The load range is (0.864-49.03) N. This wide and adjustable load range enables simulation of different stress conditions, making it suitable for testing thermal deformation performance of various plastic products under different load requirements.
What heating rates does the HDT VICAT Testing Machine support, and how do these rates match test standards?
The machine supports two selectable heating rates: 50℃/h (equivalent to (12±1)℃ per 6 minutes) and 120℃/h (equivalent to (5±0.5)℃ per 6 minutes). These rates correspond to different international and domestic material testing standards.
Product Images
HDT VICAT Tester testing apparatus for determining heat distortion temperature and VICAT softening point in polymer samples 0 HDT VICAT Tester testing apparatus for determining heat distortion temperature and VICAT softening point in polymer samples 1 HDT VICAT Tester testing apparatus for determining heat distortion temperature and VICAT softening point in polymer samples 2

Tag:

HDT Vicat Testing Machine,

VICAT Softening Point Tester,

Heat Deflection Temperature Tester
