Drop Hammer Impact Testing Machine Used to Assess Impact Behavior of Materials Under Simulated Real World Conditions

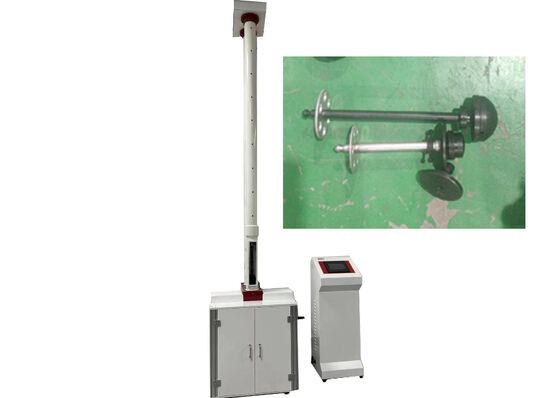

Large Image : Drop Hammer Impact Testing Machine Used to Assess Impact Behavior of Materials Under Simulated Real World Conditions

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XJL-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Impact Testing Machine Used To Assess Impact Behavior Of Materials Under Simulated Real World Conditions	Test Type:	Drop Hammer Test
Test Range:	0-300J	Drop Hammer Quality:	0.5kg-16kg
Control Mode:	Automatic	Max. Height:	2000mm
Min. Height:	10mm	Power Supply:	AC220V/50Hz
Highlight:	Drop Hammer Impact Testing Machine with warranty , Material impact behavior testing machine , Drop hammer tester for real-world conditions

Drop Hammer Impact Testing Machine

This advanced Drop Hammer Impact Testing Machine is designed to assess the impact behavior of materials under simulated real-world conditions. With an extensive drop hammer mass range from 0.5 kg to 16 kg, it offers highly flexible testing configurations to meet diverse experimental requirements.

Key Features

Maximum impact energy of 300 J for consistent, accurate results

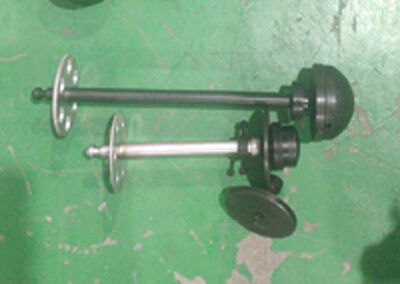

Interchangeable hammer heads (25 mm, 90 mm, and custom options)
Maximum drop height of 2000 mm for large-scale component testing
Compatible with pass-fail and gradient test methods
High-precision measurement system with 0.5% accuracy

Applications

This equipment is specifically engineered for impact resistance testing of non-metallic materials including plastics, glass, and ceramics. It serves as a premier testing instrument for evaluating impact strength performance and supports quantitative comparative analysis of material quality discrepancies.

Technical Specifications

Model	XJL-300D
Ambient Temperature	10℃-35℃
Drop Hammer Mass	0.5kg-16kg
Hammer Diameter	D25mm, D90mm, etc.
Drop Height	10mm-2000mm, error≤±2mm
Sample Diameter	Φ16mm-Φ630mm
Power Source	220VAC±10%
Dimensions	715mm×700mm×3900mm
Net Weight	380kg

Compliance Standards

ISO 3127, ISO 6603, ISO 4422, ISO 11343, ISO 8256, ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411

Support & Services

We provide comprehensive technical support including on-site installation guidance, routine maintenance, fault diagnosis, troubleshooting, and calibration services. Our technical support team is available 24/7 to address your inquiries and resolve technical issues.

Frequently Asked Questions

What is a Drop Hammer Test Equipment?

A specialized impact testing apparatus designed to evaluate the impact resistance performance of various materials and components.

What is the core purpose of this equipment?

To accurately assess impact resistance and verify structural integrity and quality of finished products.

What types of products are compatible?

PVC-U water supply pipes, sewage pipes, low-pressure pipes, core-layer foam pipes, double-wall corrugated pipes, PE water supply pipes, and rigid plastic sheets.
