Drop Hammer Impact Testing Machine Featuring Robust Construction and Measurement Technology for Long Term Testing Stability

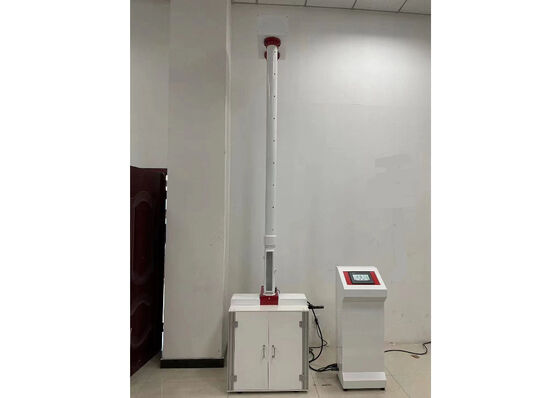

Large Image : Drop Hammer Impact Testing Machine Featuring Robust Construction and Measurement Technology for Long Term Testing Stability

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XJL-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Impact Testing Machine Featuring Robust Construction And Measurement Technology For Long Term Testing Stability	Test Type:	Drop Hammer Test
Test Range:	0-300J	Drop Hammer Quality:	0.5kg-16kg
Control Mode:	Automatic	Max. Height:	2000mm
Min. Height:	10mm	Power Supply:	AC220V/50Hz
Highlight:	Drop Hammer Impact Testing Machine with robust construction , Drop Hammer Impact Testing Machine for long term stability , Drop Hammer Impact Testing Machine with measurement technology

Drop Hammer Impact Testing Machine Featuring Robust Construction and Measurement Technology for Long Term Testing Stability

Application

This drop hammer impact test machine complies with ISO 3127 requirements and equivalent test method standards. It is extensively utilized by plastic pipe R&D institutions, testing centers, and manufacturing facilities for material impact toughness assessment, making it an indispensable testing instrument for both the building materials industry and scientific research units.

Equipped with a dedicated secondary impact prevention mechanism, the tester automatically measures impact height and displays data in real time. It supports both pass-fail and gradient testing methods, rendering it highly user-friendly, safe, and dependable.

Testing Principle

Test specimens are subjected to impact strikes from a falling striker with predefined mass and geometry, dropped from a calibrated height onto designated positions on the specimen surface.

Test severity can be regulated by modifying striker mass, adjusting drop height, or a combination of both. The maximum acceptable value for Total Indicated Runout (TIR) is defined as 10%.

Product Features

PLC control system for preset impact height configuration
Secondary impact prevention function for enhanced safety
Automatic hammer hoisting to preset target height
Real-time hammer height display throughout operation
Superior reliability and high precision performance
Full compliance with GB6112-85 technical specifications

Technical Parameters

Parameter	Specification
Model	XJL-300D
Ambient Temperature	10℃-35℃
Drop Hammer Quality	0.5kg-16kg
Hammer Diameter	D25mm, D90mm, etc
Height of the Fall	10mm-2000mm, error≤±2mm
Diameter of the Sample	Φ16mm-Φ630mm
Deviation of Impact Center	≤2mm
V-type Supporting	120°
Power Source	220VAC±10%
Outline Dimension	715mm×700mm×3900mm
Net Weight	380kg

Packing and Shipping

This Drop Hammer Test Equipment is securely encased in a heavy-duty export wooden crate for transit, containing the core machine unit, detailed operation manual, calibration certificate, and all matched spare parts and accessories. The crate exterior is clearly labeled with equipment designation, model number, unique serial number, and international shipping handling symbols.

Complete shipping documentation includes commercial invoice, itemized packing list, customs declaration forms, and other mandatory documents for cross-border deliveries. Shipping fees are calculated based on delivery destination, shipment volume, and selected logistics mode (sea, air, or land transport).

Frequently Asked Questions

What is a Drop Hammer Test Equipment?

Drop Hammer Test Equipment is a specialized impact testing apparatus designed and manufactured by TH in Beijing, China, dedicated to evaluating the impact resistance performance of various materials and structural components.

What is the core purpose of Drop Hammer Test Equipment?

The fundamental purpose is to conduct accurate impact resistance assessments of target objects, serving as a critical quality assurance procedure to verify structural durability and reliability of finished products.

What types of products can the Drop Hammer Test Equipment be applied to?

This equipment is suitable for impact resistance testing of various pipe products including PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, low-pressure transmission pipes, core-layer foam pipes, double-wall corrugated pipes, and PE water supply pipes. It is also applicable for testing rigid plastic sheets.

What is the measurement accuracy of the Drop Hammer Test Equipment?

The equipment features a high-precision measurement system with an accuracy level of up to 0.5%.

What is the maximum testing energy of the Drop Hammer Test Equipment?

The maximum testing energy of this equipment reaches 300 joules (J).

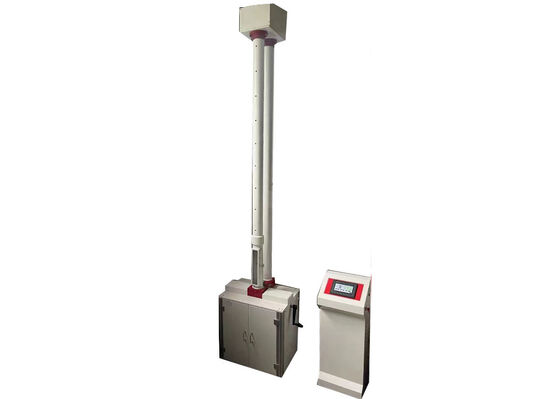

Product Gallery
