Hydrostatic Pressure Testing Machine Featuring Compact Design and Portable Construction for On Site Testing Convenience

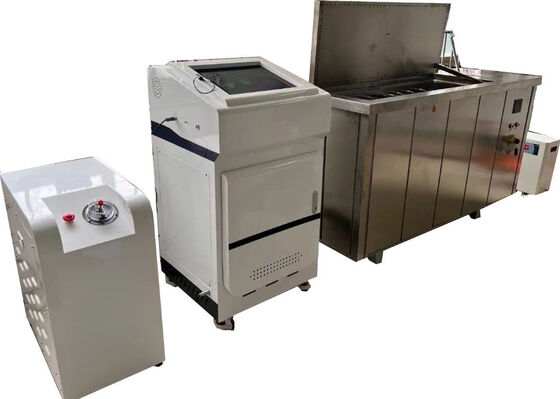

Large Image : Hydrostatic Pressure Testing Machine Featuring Compact Design and Portable Construction for On Site Testing Convenience

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-16C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Featuring Compact Design And Portable Construction For On Site Testing Convenience	Testing Range:	0-16MPA
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
End Caps:	Φ16-630mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	compact hydrostatic pressure testing machine , portable hydrostatic pressure tester , on-site hydrostatic testing equipment

Hydrostatic Pressure Testing Machine

Compact Design for On-Site Testing Convenience

This hydrostatic pressure testing machine features a compact design and portable construction, making it ideal for on-site testing applications across various industrial settings.

Applications

The Hydrostatic Pressure Testing Machine is engineered to evaluate the pressure resistance performance of pipes, containers, valves, and other pressure-bearing components. It assesses structural strength and pressure-bearing capacity through controlled high-pressure testing procedures.

This testing equipment is extensively employed in petroleum, chemical engineering, natural gas, and other industries requiring rigorous high-pressure performance validation.

Working Principle

The XGY Hydrostatic Pressure Testing Machine operates by inputting key pipe parameters—including ring stress, wall thickness, and average outer diameter—into the industrial PC. The system automatically computes the required test pressure and transmits the data to the slave computer (MCU embedded system) via RS232 serial communication.

The machine offers dual control options: microcontroller-based control and industrial PC control, adapting to diverse operational preferences. It generates Pressure-Time and Pressure-Temperature curves for real-time monitoring and accurate, data-backed results.

Product Features

Product Name: Hydrostatic Pressure Testing Machine
Working Principle: Automated pressure calculation with RS232 data transmission
Customization Support: OEM Services Available
Model Number: XGY-16C
Operating Temperature Range: 15℃ to 95℃
Automatic testing mode for consistent, reproducible results
CE and ISO certified for quality and safety compliance
Broad temperature spectrum testing capability

Technical Specifications

Parameter	Specification
Model	XGY-16C
Diameter Range	Φ16-630mm
Stations	3, 5, 6, 12, 15, 18, 20, 25, 50, 100 (customizable)
Control Mode	Micro-control, industrial PC control
Display Mode	Industrial PC LCD color display
Storage Mode	PC storage
Print Mode	Color printer output
Test Pressure Range	0.1-16MPa
Control Accuracy	±1%
Display Resolution	0.01MPa
Working Range	5%~100%FS
Indication Error	±1%
Timer Range	0~10000h
Timer Accuracy	±0.1%
Timer Resolution	1s
Power	380V 50Hz three-phase four-wire 1.5KW
End Caps Models	Φ16 to 630mm
Water Tank Size	According to pipe size
Temperature Range	15-95℃
Dimensions (three stations)	715×625×1700(mm) or others

Compliance Standards

ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335

Support and Services

We provide comprehensive technical support and after-sales services for Plastic Pipe Hydrostatic Pressure Testing Machines, including:

On-site machine installation, commissioning and precision calibration
Timely troubleshooting diagnosis and professional technical consultation
Customized preventive maintenance plans and targeted repair services
Supply of authentic, high-quality spare parts and specialized consumables
Regular software optimization updates and system upgrade support

Frequently Asked Questions

Which brand manufactures the XGY-16C Hydrostatic Pressure Testing Machine, and where is its production base?

This machine is branded TH, with its production facility located in Beijing, China, ensuring strict quality control throughout the manufacturing process.

What is the primary application of the XGY-16C Hydrostatic Pressure Testing Machine?

It is specifically designed to assess the hydrostatic pressure resistance and bursting strength of plastic pipes, serving as a core quality control tool for pipe production and inspection.

What types of pipes and materials are compatible with this testing machine?

It is applicable for testing plastic pipes and composite pipes, including PP-R, PP-B, PP-A, PVC, PE, PE-X, and other similar pipe variants commonly used in fluid conveyance systems.

What is the full-scale reading accuracy of the XGY-16C Hydrostatic Pressure Testing Machine?

The machine offers a high-precision performance, with a full-scale reading accuracy tolerance of within 0.1% to ensure reliable test data.

What is the maximum pressure capacity of this hydrostatic testing machine?

It can handle a maximum test pressure of 10 MPa (equivalent to 100 bar or 1450 psi), meeting the testing needs of most medium-pressure plastic pipe products.

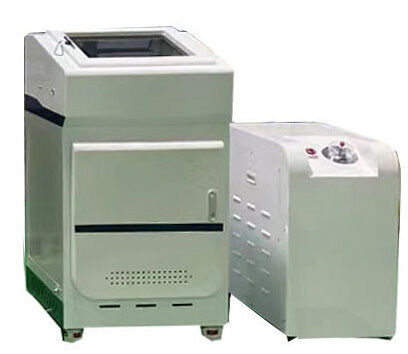

Product Images
