Hydrostatic Pressure Testing Machine Designed for Robust Performance and Longevity in Industrial Pressure Testing Tasks

Large Image : Hydrostatic Pressure Testing Machine Designed for Robust Performance and Longevity in Industrial Pressure Testing Tasks

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-16C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Designed For Robust Performance And Longevity In Industrial Pressure Testing Tasks	Testing Range:	0-16MPA
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
End Caps:	Φ10-1600mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	industrial hydrostatic pressure tester , robust hydrostatic testing machine , long-lasting pressure testing equipment

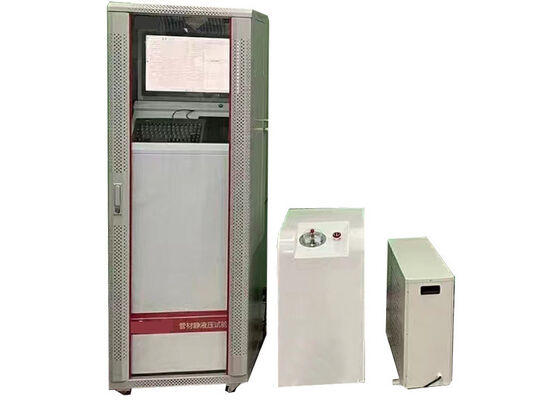

Hydrostatic Pressure Testing Machine

Designed for robust performance and longevity in industrial pressure testing tasks, this PVC Plastic Pipe Hydrostatic Burst Pressure Testing Machine is engineered to evaluate the resistance-to-failure duration or instantaneous burst pressure of thermoplastic and composite pipes.

Product Use

Designed in strict compliance with the ASTM D1598 standard, this testing machine evaluates thermoplastic and composite pipes—including PP-R, PP-B, PP-A, PE, PE-X, PVC, PVC-U, PVC-C, and aluminum-plastic composite pipes—when subjected to prolonged constant internal pressure and temperature conditions.

As an indispensable testing instrument, it serves as core equipment for plastic pipe manufacturers, third-party testing laboratories, and quality inspection institutions to validate product performance and ensure compliance with industry standards.

Key Features

Advanced airless hydraulic pressurization system using water as the test medium for exceptional operational safety and reliability
Premium international solenoid valves with high reliability and stable performance under prolonged cyclic operation
Imported Model 2525 triplex plunger high-pressure pump head capable of 25 MPa maximum output pressure
Independent test channels allowing simultaneous testing of pipes with varying specifications and materials
Comprehensive power failure protection with automatic data saving and seamless test resumption

Compliance Standards

ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599, ISO13479

Operating Principle

Upon entering key pipe parameters—including ring stress, wall thickness, and average outer diameter—into the PC-based control interface, the system autonomously computes the required test pressure, which is then transmitted to the embedded MCU system via RS232 serial communication.

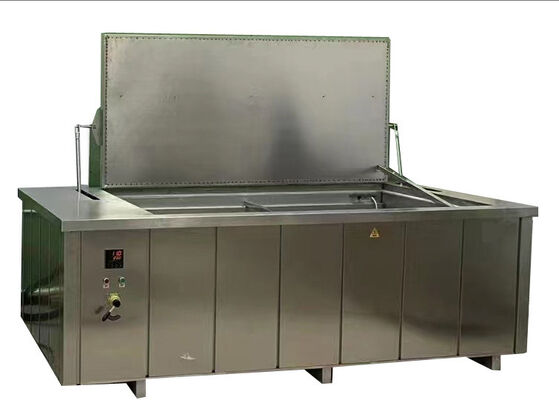

The embedded MCU system triggers automatic constant-pressure regulation. A high-pressure pump generates hydraulic pressure, which is conditioned by the precision pressure control system and delivered via high-pressure hoses to pipe specimens in the medium incubator, enabling long-duration hydrostatic pressure tests or burst pressure evaluations.

Technical Parameters

Parameter	Specification
Model	XGY-16C
Diameter range	Φ10-1600mm
Stations	5, 6, 12, 15, 18, 20, 25, 50, etc (customizable)
Control mode	Micro-control, industrial PC control
Display mode	Industrial PC LCD color display
Storage mode	PC storage
Print mode	Color printer output
Test pressure range	0.2-16MPa
Control accuracy	±1%
Display resolution	0.001MPa
Working range	5%~100%FS
Indication error	±1%
Timer range	0~10000h
Timer accuracy	±0.1%
Timer resolution	1s
Power	380V 50Hz three-phase four-wire 1.1KW
End caps models	from Φ8 to 1600mm
Water tank size	According to pipe size
Temperature range	15-95℃
Dimensions (three stations)	720×620×1720(mm) or others

Support and Services

We offer comprehensive, end-to-end technical support services tailored exclusively for our Plastic Pipe Hydrostatic Pressure Testing Machines:

On-site equipment installation, precision calibration, and system commissioning
Dual-channel troubleshooting (remote diagnostic support and on-site intervention)
Proactive preventive maintenance programs and responsive corrective repair services
Genuine OEM spare parts and high-wear consumables with global fast-delivery options
Timely software patches, functional updates, and performance upgrades

Our technical team is on standby to address inquiries and resolve issues promptly.

Frequently Asked Questions

What is the brand and manufacturing origin of the Plastic Pipe Hydrostatic Pressure Testing Machine?

The brand of our Plastic Pipe Hydrostatic Pressure Testing Machine is TH, with its manufacturing facility situated in Beijing, China, ensuring strict quality control throughout production.

What is the core function of the Plastic Pipe Hydrostatic Pressure Testing Machine?

This testing machine is dedicated to assessing the hydrostatic pressure resistance and bursting strength of plastic pipes, providing critical data to validate product durability and performance.

Which pipe types and materials can be tested by this Hydrostatic Pressure Testing Machine?

It is applicable for testing plastic pipes and composite pipes, including but not limited to PP-R, PP-B, PP-A, PVC, PE, and PE-X pipes, covering mainstream pipe materials in the industry.

What is the pressure measurement accuracy of the Hydrostatic Pressure Testing Machine?

The machine delivers high-precision pressure measurement, with an accuracy tolerance within ±0.1% of the full-scale reading, ensuring reliable test results.

What is the maximum pressure capacity of the Hydrostatic Pressure Testing Machine?

It supports a maximum test pressure of 10 MPa, which is equivalent to 100 bar (1,450 psi), catering to the high-pressure testing needs of most plastic pipe products.
