Hydrostatic Pressure Testing Machine Engineered for Accurate Pressure Measurement and Leak Detection in Pipeline Systems

Large Image : Hydrostatic Pressure Testing Machine Engineered for Accurate Pressure Measurement and Leak Detection in Pipeline Systems

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-10C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Engineered For Accurate Pressure Measurement And Leak Detection In Pipeline Systems	Testing Range:	0-10, 0-16, 0-20MPA
Accuracy:	-1%~+2%	Test Temperature Range:	10~95℃
End Caps:	Φ8-1600mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	Hydrostatic pressure testing machine for pipelines , Accurate pressure measurement testing machine , Pipeline leak detection pressure tester

Hydrostatic Pressure Testing Machine Engineered for Accurate Pressure Measurement and Leak Detection in Pipeline Systems

Product Overview

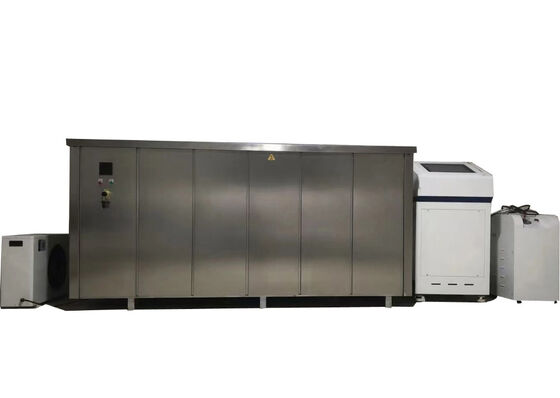

Integrated with matching end caps and a water tank, this hydrostatic pressure & burst tester boasts an elegant exterior design and streamlined structure. It delivers exceptional precision and operational stability while maintaining user-friendly operation, making it an indispensable testing instrument for quality control departments of research institutions and pipe manufacturers across industries.

Key Features

PC-based control with high-definition LCD display for intuitive parameter monitoring
Each testing station operates independently with configurable capacity up to 100 stations
Capable of conducting hydrostatic pressure tests, burst tests, and 8760-hour long-term aging tests
Adjustable pressure range from 3 MPa to 100 MPa
Identifies eight testing states: pressure rising, pressure dropping, pressure compensation, overpressure, operation, completion, leakage, and burst
Automatically distinguishes and calculates both effective and ineffective time parameters

Compliance Standards

ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599, ISO13479

Operating Principle

Upon entering pipe parameters (including ring stress, wall thickness, and average outer diameter) into the PC-based control interface, the system autonomously computes the required test pressure, which is then sent to the lower-level MCU embedded system via an RS232 serial port. The embedded MCU system further initiates automatic constant-pressure control for the pipe specimens. A high-pressure pump generates a stable hydraulic source, which is regulated by the precision pressure control system and delivered through high-pressure hoses to the specimens placed in the medium incubator, facilitating long-duration hydrostatic tests or burst tests on the pipes.

Technical Parameters

Parameter	Specifications
Model	XGY-10C, 16C, 20C
Diameter range	Φ8-1600mm
Stations	3, 5, 6, 10, 12, 15, 20, 25, 50, etc (customizable)
Control mode	Micro-control, industrial PC control
Display mode	Industrial PC LCD color display
Storage mode	PC storage
Print mode	Color printer output
Test pressure range	10, 16, 20MPa
Control accuracy	±1%
Display resolution	0.001MPa
Working range	5%~100%FS
Indication error	±1%
Timer range	0~10000h
Timer accuracy	±0.1%
Timer resolution	1s
Power	380V 50Hz three-phase four-wire 1.1KW

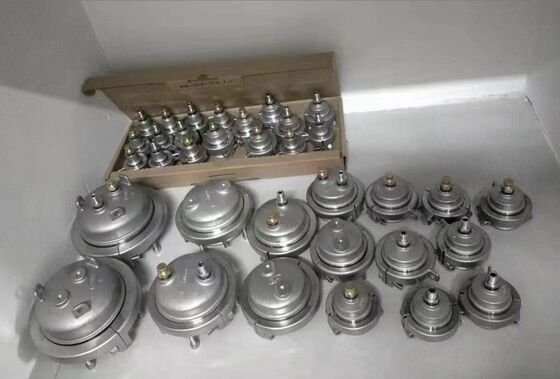

End caps models	from Φ8 to 1600mm
Water tank size	According to pipe size
Temperature range	15-95℃
Dimensions (three stations)	740×640×1720(mm) or custom

Support and Services

We offer tailored end-to-end technical support and services for this Plastic Pipe Hydrostatic Pressure Testing Machine. Our team of seasoned technical specialists provides comprehensive support, including:

On-site installation and precision commissioning
Troubleshooting & professional technical consultation
Proactive maintenance & responsive repair services
Supply of genuine spare parts and wear-resistant consumables
Timely software patches and functional upgrades

We are dedicated to delivering premium customer service, with our support team on standby to address all your inquiries promptly. Feel free to contact us whenever you have questions or service needs related to the equipment.

Frequently Asked Questions

Q1: What is the brand and place of manufacture of this testing machine?

A1: This Plastic Pipe Hydrostatic Pressure Testing Machine is branded TH, manufactured in Beijing, China with rigorous quality assurance protocols implemented during production.

Q2: What is the primary function of this Hydrostatic Pressure Testing Machine?

A2: It is designed specifically to evaluate the hydrostatic pressure resistance and bursting strength of plastic pipes, delivering reliable data for quality validation.

Q3: Which pipe materials and types are testable with this machine?

A3: It is compatible with plastic pipes and composite pipes, including PP-R, PP-B, PP-A, PVC, PE, PE-X, and other similar pipe materials commonly used in the industry.

Q4: What is the pressure measurement accuracy of this machine?

A4: The machine offers high-precision measurement, with an accuracy of ±0.1% relative to the full-scale reading.

Q5: What is the maximum test pressure this machine can achieve?

A5: It supports a maximum test pressure of 10 MPa, which converts to 100 bar (1,450 psi), meeting the high-pressure testing requirements of most plastic pipe products.

Product Images
