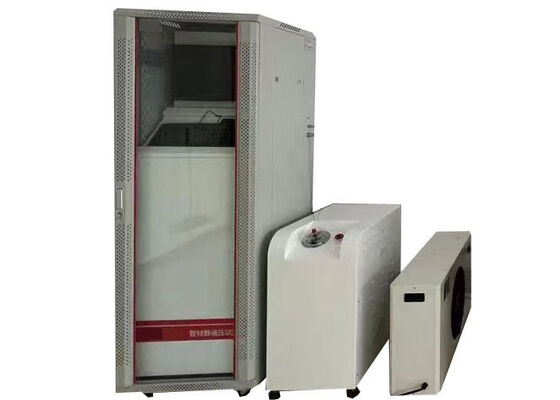

Hydrostatic Pressure Testing Machine offering pressure testing for assurance in manufacturing and maintenance of pressure systems

Large Image : Hydrostatic Pressure Testing Machine offering pressure testing for assurance in manufacturing and maintenance of pressure systems

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-16C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Offering Pressure Testing For Assurance In Manufacturing And Maintenance Of Pressure Systems	Maximum Test Pressure:	10MPA
Accuracy:	-1%~+2%	Test Temperature Range:	10~95℃

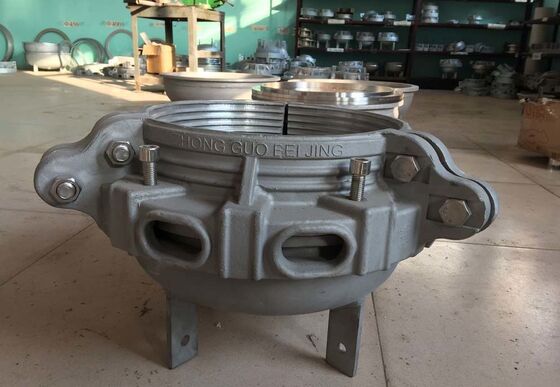

End Caps:	Φ16-1200mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	Hydrostatic Pressure Testing Machine for manufacturing , Hydrostatic Pressure Testing Machine with warranty , Pressure system maintenance testing machine

Hydrostatic Pressure Testing Machine

Product Overview

The hydrostatic pressure testing machine is specifically engineered for determining the instantaneous hydraulic bursting pressure and long-term constant pressure resistance duration of plastic pipes utilized in various fluid transportation systems. It serves as a core instrument for evaluating the pressure-bearing performance and structural durability of such pipes.

This testing machine adopts a PC-based centralized cluster control architecture. Each test channel functions as an independent module, and each module is equipped with a dedicated microcontroller responsible for receiving control commands from the embedded PC to execute precise operational control. Simultaneously, via a serial bus, real-time control information is continuously fed back to the host PC, which completes the collection, sorting and storage of all test data in a synchronized manner.

The instrument is integrated with a comprehensive set of functional modules, including automatic pipe rupture detection, real-time test process monitoring, power-off data recovery, test report printing, test result storage, and sample pre-treatment parameter configuration. It operates on a Windows platform with intuitive menu prompts, enabling streamlined and user-friendly operation.

During testing, pressure and time parameters are dynamically displayed in real time, and a pressure-time curve is plotted point-by-point to visualize the pressure variation process clearly and intuitively. All test results are permanently saved to the hard disk in text format, allowing for on-demand printing at any time to facilitate future reference, data comparison and quality traceability.

Key Features

Embedded computer control with modular structural design for independent station control
Fault isolation capability - closing stop valve of faulty station doesn't disrupt other stations
Comprehensive functional modules including pipe rupture recognition and real-time monitoring
Power-off data recovery and test report printing capabilities
Extended data storage up to 7 days for holiday periods
Windows platform operation with intuitive menu prompts
Real-time pressure and time parameter display with pressure-time curve plotting

Compliance Standards

GB/T6111-2018 - Thermoplastics Piping Systems for the Conveyance of Fluids - Determination of the Resistance to Internal Pressure
GB/T15560-95 - Standard Test Method for Short-Time Hydraulic Failure and Resistance to Constant Internal Pressure of Plastic Pipes for Fluid Transport
ISO1167-2006 - Thermoplastics Pipes, Fittings and Assemblies for the Conveyance of Fluids - Determination of the Resistance to Internal Pressure
ASTM D1598-2004 - Plastic Pipe - Time-to-Failure Under Constant Internal Pressure
ASTM D1599 - Standard Test Method for Resistance to Short-Time Hydraulic Pressure of Plastic Pipe, Tubing, and Fittings

Technical Specifications

Parameter	Specification
Model	XGY-16C
Diameter Range	Φ10-1200mm
Stations	4, 5, 6, 8, 10, 12, 15, 20, 25, 50 (customizable)
Control Mode	Micro-control, industrial PC control
Display Mode	Industrial PC LCD color display
Storage Mode	PC storage
Print Mode	Color printer output
Test Pressure Range	0.2-10MPA, 0.02-100Bar
Control Accuracy	±1%
Display Resolution	0.001MPa, 0.01Bar
Working Range	2%~100%FS
Indication Error	±1%
Timer Range	0~9999h59m59s
Timer Accuracy	±0.1%
Timer Resolution	1s
Power	380V 50Hz three-phase four-wire 1.5KW
End Caps Models	from Φ10 to 1200mm
Water Tank Size	According to pipe size
Temperature Range	15-95℃
Dimensions (three stations)	700×620×1720(mm) or custom

Frequently Asked Questions

What is the brand designation and manufacturing origin of this testing machine?

This Plastic Pipe Hydrostatic Pressure Testing Machine is branded TH, with production facilities located in Beijing, China, adhering to strict quality management protocols.

What is the core application scope of this hydrostatic testing machine?

Its primary function is to conduct performance testing on plastic pipes, focusing on quantitative evaluation of hydrostatic pressure resistance and bursting strength.

Which pipe materials and components are compatible with this machine?

It is applicable for testing plastic pipes and composite pipes, covering common materials such as PP-R, PP-B, PP-A, PVC, PE, PE-X, and other thermoplastic pipe products.

What is the measurement accuracy of this testing machine?

The machine features high-precision measurement capabilities, with an accuracy tolerance within ±0.1% of the full-scale reading, ensuring reliable and traceable test data.

What is the maximum test pressure this machine can withstand?

It supports a maximum test pressure of 10 MPa, equivalent to 100 bar (1,450 psi), fully meeting mainstream high-pressure testing requirements for thermoplastic pipes.
