Hydrostatic Pressure Testing Machine offering pressure measurement and testing capabilities for maintenance and inspection tasks

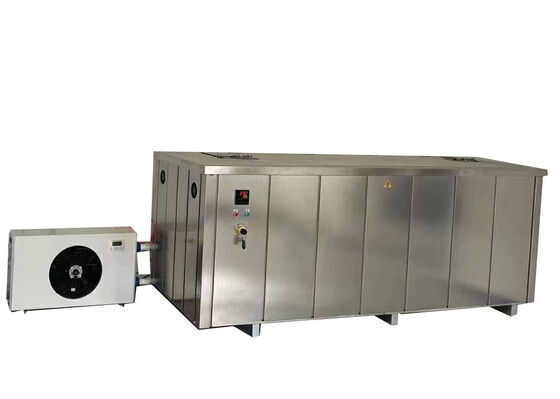

Large Image : Hydrostatic Pressure Testing Machine offering pressure measurement and testing capabilities for maintenance and inspection tasks

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-10C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Offering Pressure Measurement And Testing Capabilities For Maintenance And Inspection Tasks	Testing Range:	0-100 Bar
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
Display:	LCD	Test Curve:	Pressure-time And Pressure-temperature
Safety Protection:	Over Pressure/Over Temperature	Test Mode:	Automatic
Test Medium:	Water
Highlight:	Hydrostatic Pressure Testing Machine for maintenance , Hydrostatic Pressure Testing Machine with pressure measurement , Hydrostatic Pressure Testing Machine for inspection tasks

Hydrostatic Pressure Testing Machine

Product Overview

The XGNB Series Hydrostatic Pressure and Burst Testing Machine is specifically engineered for determining the long-term hydrostatic strength and instantaneous bursting pressure of plastic pipes, including HDPE, PVC, PE, PPR, ABS and other thermoplastic pipe variants. It is fully compliant with authoritative international and industry test standards, ensuring its test results meet global quality verification requirements.

Key Features

Uses water as the test medium with a pressure range of 0-100 bar
Supports multi-unit switching (MPa/bar/PSI) for pressure display
Equipped with LCD screen displaying real-time test curves: pressure-time and pressure-temperature
Computerized control system for precise regulation of testing workflow
Compatible with plastic pipes ranging from DN10 to DN1800mm
Maximum test pressure of 10 MPa for high-pressure performance testing

Compliance Standards

ISO 1167, ASTM D1598, ISO 9080, CJ/T 108 and ASTM F1335 and other standards.

Technical Specifications

Parameter	Specification
Model	XGY-10C Series
Diameter Range	10-1800mm
Stations	3, 5, 6, 8, 10, 12, 15, 30, 50 (customizable)
Control Mode	Micro-control, industrial PC control
Display Mode	Industrial PC LCD color display
Storage Mode	PC storage
Print Mode	Color printer output
Test Pressure Range	10 MPa
Control Accuracy	±1%
Display Resolution	0.001MPa
Working Range	5%~100%FS
Indication Error	±1%
Timer Range	0~9999h59m59s
Timer Accuracy	±0.1%
Timer Resolution	1s
Power	380V 50Hz three-phase four-wire 1.2KW
Dimensions (three stations)	740×610×1700(mm) or customized

Support & Services

The XGNB Series Hydrostatic Pressure Testing Machine is backed by comprehensive technical support and after-sales services. Our team of seasoned technicians, with profound expertise in pressure testing equipment, delivers tailored services to safeguard the stable operation of your instrument throughout its lifecycle.

Our service scope covers on-site installation and precision commissioning, professional fault diagnosis with technical consultation, regular repair and preventive maintenance, supply of genuine spare parts and wear-resistant consumables, as well as timely software bug fixes and functional upgrades.

Frequently Asked Questions

What is the brand and manufacturing location of this Hydrostatic Pressure Testing Machine?

The brand of this Hydrostatic Pressure Testing Machine is TH, and it is manufactured in Beijing, China, adhering to strict quality control standards.

What is the primary purpose of this Hydrostatic Pressure Testing Machine?

It is specifically designed to test the hydrostatic pressure resistance and bursting strength of plastic pipes, providing quantitative data for quality assessment.

Which materials and components are testable by this machine?

The machine is applicable for testing plastic pipes and composite pipes, including common variants such as PP-R, PP-B, PP-A, PVC, PE, and PE-X.

What is the measurement accuracy of this testing machine?

It features high measurement precision, with an accuracy tolerance within ±0.1% of the full-scale reading, ensuring reliable and traceable test results.

What is the maximum test pressure of this machine?

The machine can handle a maximum test pressure of 10 MPa, which is equivalent to 100 bar (1,450 psi), meeting high-pressure testing demands.

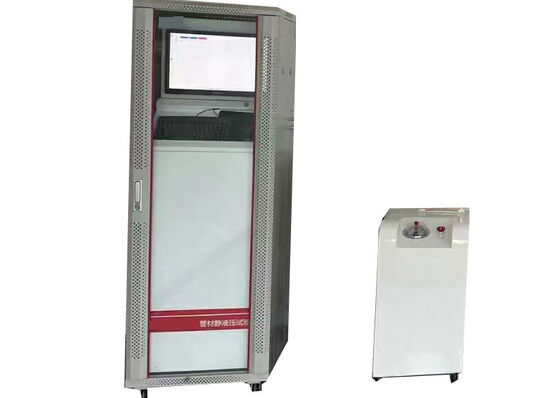

Product Gallery
