Hydrostatic Pressure Testing Machine engineered for precise pressure measurement and testing of pipelines tanks and pressure vessels

Large Image : Hydrostatic Pressure Testing Machine engineered for precise pressure measurement and testing of pipelines tanks and pressure vessels

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-20C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Engineered For Precise Pressure Measurement And Testing Of Pipelines Tanks And Pressure Vessels	Testing Range:	0-200Bar, 0-20MPA
Accuracy:	-1%~+2%	Test Temperature Range:	10~95℃
End Caps:	Φ8-1800mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	Hydrostatic Pressure Testing Machine for pipelines , Precision pressure measurement testing machine , Pressure vessel hydrostatic testing equipment

Hydrostatic Pressure Testing Machine

Engineered for precise pressure measurement and testing of pipelines, tanks, and pressure vessels.

Overview

This specialized test system conducts long-duration internal pressure testing on pipes and pipe fittings by maintaining preset pressure intervals. The system automatically shuts down when test samples rupture or testing completes, with permanent storage of pressure variation curves and standardized test report printing.

Control logic utilizes pressure-charging and pressure-discharging solenoid valves for precise pressure stabilization through inching opening control. The equipment integrates core functions including automatic constant pressure maintenance, electrically driven pressure relief, system pipeline cleaning, and automatic calibration.

Featuring imported solenoid valves and patented sealing configurations, the unit delivers excellent sealing performance and extended service life when using clean water as the test medium. This highly automated, multi-functional testing machine offers cost-effective solutions for various pipe pressure test applications.

Key Features

Industrial personal computer serves as the central control unit
Independent control logic per test station with up to 100 configurable stations
Capable of hydrostatic tests, burst tests, and 8760-hour long-term static pressure tests
Operating pressure range from 3MPa to 100MPa
Identifies and displays eight test statuses: pressure up, pressure down, pressure compensation, pressure exceeding, running, ending, leakage, and exploding
Automatically calculates effective and ineffective time parameters

Compliance Standards

ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599, ISO13479, GB/T 6111, GB/T 15560

Operating Principle

After inputting pipe parameters (ring stress, wall thickness, average outer diameter) into the host PC, the system automatically computes test pressure. Data transfers to the lower computer (MCU embedded system) via RS232 serial port. The lower computer executes automatic constant-pressure control while the high-pressure pump supplies regulated fluid through high-pressure hoses to test specimens in the medium incubator, enabling long-term hydrostatic or burst testing.

Technical Specifications

Model	XGY-20C
Diameter Range	Φ8-1800mm
Stations	5, 10, 12, 15, 20, 25, 50 (customizable)
Control Mode	Micro-control, industrial PC control
Display Mode	Industrial PC LCD color display
Storage Mode	PC storage
Print Mode	Color printer output
Test Pressure Range	200Bar, 20MPa
Control Accuracy	±1%
Display Resolution	0.1Bar, 0.01MPa
Working Range	5%~100%FS
Indication Error	±1%
Timer Range	0~999h59m59s
Timer Accuracy	±0.1%
Timer Resolution	1s
Power	380V 50Hz three-phase four-wire 1.5KW
End Caps Models	from Φ8 to 1800mm
Water Tank Size	According to pipe size
Temperature Range	15-95℃
Dimensions (three stations)	750×650×1720(mm) or custom

Frequently Asked Questions

Q1: What brand is your Plastic Pipe Hydrostatic Pressure Testing Machine under?

A1: Our Plastic Pipe Hydrostatic Pressure Testing Machine is branded as TH, which is produced and based in Beijing, China.

Q2: What is the primary application of this Plastic Pipe Hydrostatic Pressure Testing Machine?

A2: This equipment is designed specifically for evaluating the hydrostatic performance and burst strength of plastic pipes.

Q3: What types of components and materials are compatible with this Hydrostatic Pressure Testing Machine?

A3: It is applicable for testing plastic pipes and composite pipes, including but not limited to PP-R, PP-B, PP-A, PVC, PE, PE-X and other analogous pipe materials.

Q4: What is the measurement accuracy of the Hydrostatic Pressure Testing Machine?

A4: The machine boasts a measurement accuracy of ±0.1% of the full-scale reading, ensuring reliable test data.

Q5: What is the maximum pressure capacity of the Hydrostatic Pressure Testing Machine?

A5: It can achieve a maximum test pressure of 10MPa (equivalent to 100 bar or 1450 psi) for pipe testing.

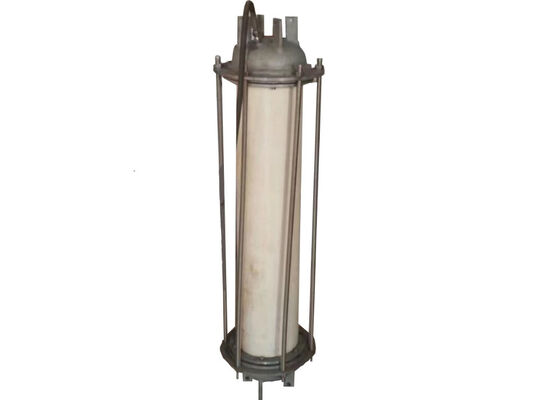

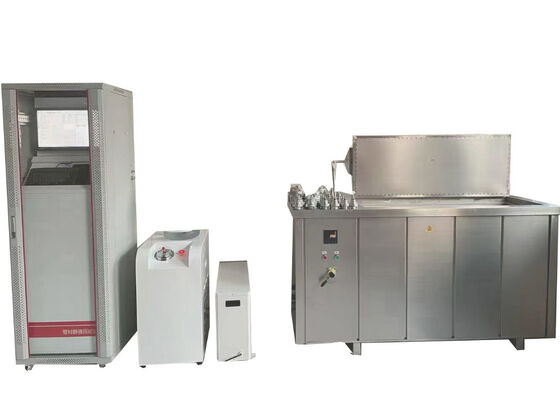

Product Images
