Versatile End Closure For Plastic Pipes Ideal For With Pipe Hydrostatic Testing Equipment And Accessories

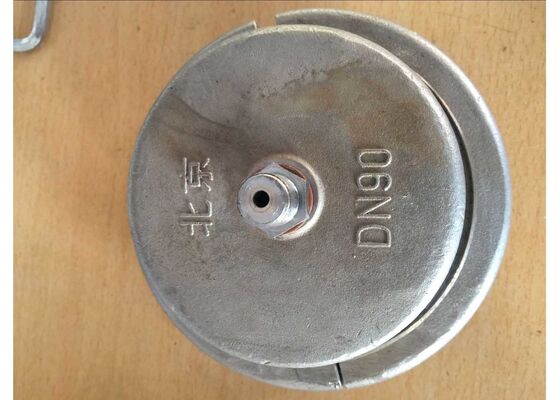

Large Image : Versatile End Closure For Plastic Pipes Ideal For With Pipe Hydrostatic Testing Equipment And Accessories

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001
Model Number:	XGY

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	3~5 work days
Payment Terms:	T/T,L/C,Western Union,MoneyGram,D/P,D/A
Supply Ability:	1000 sets per month

Contact Now

Detailed Product Description

Product Name:	Versatile End Closure For Plastic Pipes Ideal For With Pipe Hydrostatic Testing Equipment And Accessories	Test Specimen:	Plastic Pipes Like PVC, PE, PPR, ABS, Etc
Material:	304# Stainless Steel	Technics:	Casting
Shape:	Half Round Pot	Type:	Plug
Model:	φ 90mm	Exterior Size:	φ 145*80mm
Highlight:	plastic pipe end closure , versatile pipe hydrostatic testing accessory , end closure for hydrostatic testing

Versatile End Closure For Plastic Pipes

Ideal for use with pipe hydrostatic testing equipment and accessories, this versatile end closure serves as a specialized sealing element for pressure testing operations on pipe specimens.

Product Overview

The End Closure for Plastic Pipes features excellent compatibility with our XGY series pipe hydrostatic testing machine and can also be seamlessly matched with your existing testing equipment of other models.

Technical Specifications

Parameter	Specification
Name	End caps
Max. pressure	10MPa
Dimension size	Φ145*80mm
Temp. range	15~95 °C
Specimen diameter	Φ90mm
Single-end weight	3.5kg
Structure	Half round pot form, easy fit out, no leakage, convenient operation
Standards	GB/T6111, GB/15560, GB/T8252, ISO1167
Function	Used for sealing pipe in static-press, proof-press, instantaneous-burst test of plastic pipes like PVC, PE, PPR, ABS, etc. as well as compound pipes

Available Models

We also have these models: φ10, φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ75, φ90, φ110, φ125, φ140, φ160, φ180, φ200, φ225, φ250, φ280, φ315, φ355, φ400, φ450, φ500, φ560, φ630, φ710, φ800, φ900, φ1000, φ1100, φ1200, φ1500, φ2000mm, 1/2", 3/4", 1", 11/4", 11/2", 2", 21/2", 3", 4", 6", 8", 10", 12", 14", 16", 18", 20", 22", 24", etc.

Standard Configuration

The bolts - 1 set
Vent valve - 1 piece
Connector - 1 piece
Seal rings - 1 set

Frequently Asked Questions

Q1: What nominal outer diameter specifications do these fixtures support?

A1: They are compatible with all standard nominal outer diameters of industrial pipes, and customized non-standard dimensional solutions are also available for special piping requirements.

Q2: What is the rated pressure bearing index of these hydraulic fixing components?

A2: The rated pressure endurance index of these components fully matches the upper pressure limit of general static hydraulic and burst testing procedures.

Q3: What sealing structure form is adopted for the pipe contact section?

A3: The pipe contact section applies a closed annular packing structure to guarantee isolation in the pressure test environment.

Q4: What raw materials are utilized to fabricate the main bearing frames of these fixtures?

A4: The key bearing frames are constructed with high-performance stainless steel and carbon steel, supplying superior structural rigidity and long-term service stability.

Q5: What rapid assembly mode is designed for on-site test preparation?

A5: These components adopt a bolt-free fast locking mode, which shortens the preparation period for pipeline test arrangement.

Q6: Which standard test items are these components matched to execute?

A6: These components are specially designed to execute constant pressure holding, instantaneous breaking and vacuum sealing test items specified by international standards.

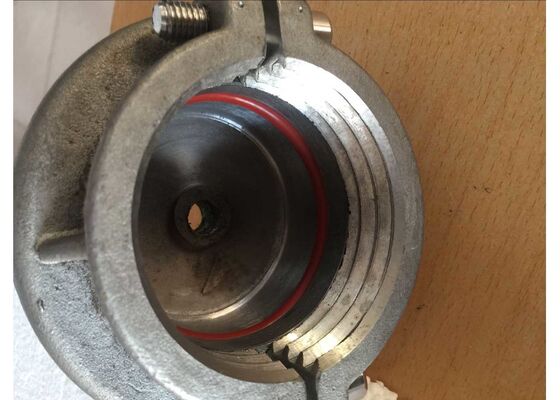

Product Images
