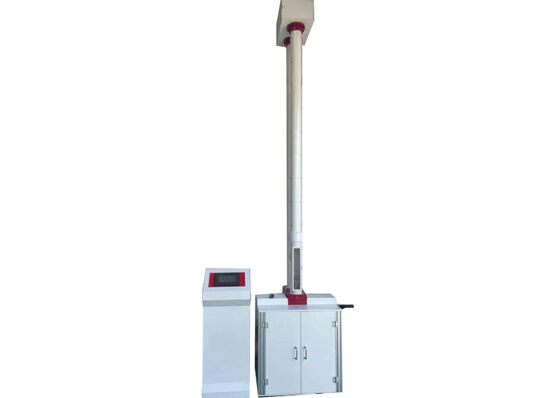

Drop Hammer Impact Testing Machine
Overview
The Drop Hammer Impact Testing Machine provides versatile testing capabilities for metals, plastics, and composite materials. This advanced testing equipment delivers precise impact resistance evaluation with reliable performance and comprehensive technical support.
Applications
The Drop Hammer Test Equipment boasts extensive applicability, fully complying with ISO 3127 specifications and equivalent test method standards. It is widely utilized by plastic pipe research institutions, testing laboratories, and production facilities for determining impact resistance and toughness. Additionally, it serves as an ideal testing instrument for the building materials industry and scientific research entities.

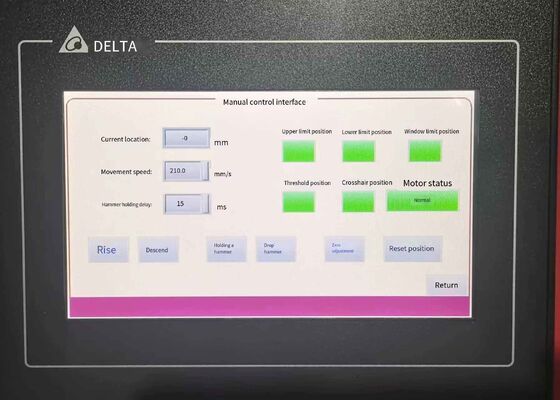

This testing machine features secondary impact prevention capability, automatic calculation and real-time display of impact height, and compatibility with both pass-fail and gradient methods. It delivers convenient operation, high safety, and reliable performance as a drop hammer impact testing device.
Testing Principle
Test specimens are subjected to impact forces exerted by a falling striker with predetermined mass and configuration, dropped from a known height onto designated positions across the specimen surface.
Test severity can be regulated by modifying either the striker mass, the drop height, or both. The maximum acceptable value for TIR is defined as 10%.
Technical Specifications
| Parameter |
Specification |
| Model |
XJL-300D |
| Ambient Temperature |
10℃-35℃ |
| Drop Hammer Quality |
0.5kg-16kg |
| Hammer Diameter |
D25mm, D90mm, etc |
| Height of the Fall |
10mm-2000mm, error≤±2mm |
| Diameter of the Sample |
Φ16mm-Φ630mm |
| Deviation of Impact Center |
≤2mm |
| V-type Supporting |
120° |
| Power Source |
220VAC±10% |
| Outline Dimension |
715mm×700mm×3900mm |
| Net Weight |
380kg |
Product Features
This Drop Hammer Test Equipment functions as a specialized drop impact measuring device for quantitative evaluation of product impact resistance performance. Supporting hammer mass adjustment from 0.5 kg to 16 kg with striker diameters selectable between D25 mm and D90 mm, it operates within an environmental temperature window of 10℃ to 35℃ with a minimum test height setting of 10 mm.
Throughout the test cycle, the instrument performs high-precision measurement and automatic logging of drop impact energy exerted on test samples. Test data obtained can be applied to assess product structural durability and capacity to resist external impact loads.
Developed in full compliance with international testing standards, the instrument adapts to application demands across multiple industrial sectors, enabling manufacturers to verify product durability for logistics transportation and manual handling procedures.
Packing and Shipping
The Drop Hammer Test Equipment is packed in a reinforced export wooden crate to guarantee intact delivery throughout transit. The complete packing set includes the main testing apparatus, formal operation guides, and all matching spare parts and dedicated accessories.
Clear external marking specifies the official equipment name, model code, and exclusive serial number. Cross-border delivery is supported by a full set of regulatory documents including commercial invoice, itemized packing list, and all certificates required for international freight customs clearance.
Frequently Asked Questions
Q: What does Drop Hammer Test Equipment refer to?
A: Drop Hammer Test Equipment is a performance testing device produced by TH in Beijing, China, specially utilized to determine the impact resistance capacity of various test objects.
Q: What is the application objective of Drop Hammer Test Equipment?
A: The application objective is to quantitatively test the impact resistance of specimens to verify and guarantee the qualification and stability of product quality.
Q: What types of products can be tested with Drop Hammer Test Equipment?
A: This equipment is applicable to various pipes including PVC-U water supply pipes, sewage pipes, low pressure water supply pipes, low pressure transmission pipes, core layer foam pipes, double wall corrugated pipes and PE water supply pipes, and is also compatible with rigid plastic plates.
Q: What is the measurement accuracy grade of Drop Hammer Test Equipment?
A: The measurement accuracy of this equipment can reach as high as 0.5%.
Q: What is the upper limit of testing energy for this equipment?
A: The maximum testing energy output by this Drop Hammer Test Equipment is 300J.
