Drop Hammer Impact Testing Machine Suitable for Assessing Impact Toughness and Energy Absorption Capacity of Materials

Large Image : Drop Hammer Impact Testing Machine Suitable for Assessing Impact Toughness and Energy Absorption Capacity of Materials

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XJL-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Impact Testing Machine Suitable For Assessing Impact Toughness And Energy Absorption Capacity Of Materials	Hammer Diameter:	D25mm,D90mm, Etc
Test Range:	0-300J	Drop Hammer Quality:	0.5kg-16kg
V-type Supporting:	120°	Max. Height:	2000mm
Min. Height:	10mm	Power Supply:	AC220V/50Hz
Highlight:	drop hammer impact testing machine , impact toughness testing machine , material energy absorption tester

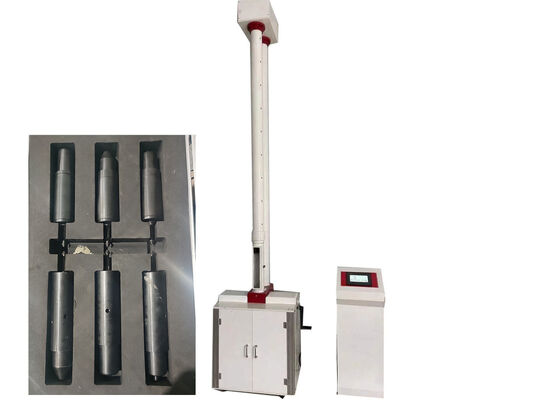

Drop Hammer Impact Testing Machine

Suitable for Assessing Impact Toughness and Energy Absorption Capacity of Materials

Product Overview

This premium testing apparatus serves the building materials sector and scientific research institutions. It is extensively employed in research, laboratory inspection, and mass production of plastic piping products to characterize and quantify the impact-resistant toughness of specimens.

The drop hammer impact testing machine fully conforms to regulatory specifications in ISO 3127 and other equivalent standardized test methodologies. It features user-friendly operation, high operational safety, and consistent long-term stability.

Key Features

Integrated anti-secondary impact mechanism
Real-time impact height value display
Supports both passage method and gradient method testing
Complete after-sales support and professional maintenance services
24/7 technical support availability
Customized testing schemes for individual requirements

Testing Principle

Test specimens receive impact loads from a guided falling striker with fixed mass and geometric profile, released from a calibrated height to strike predefined positions on the specimen periphery.

Test intensity can be adjusted by modifying the striker mass, vertical drop height, or both parameters. The allowable upper limit for TIR reading is specified as 10%.

Technical Specifications

Parameter	Specification
Model	XJL-300D
Ambient Temperature	10℃-35℃
Drop Hammer Quality	0.5kg-16kg
Hammer Diameter	D25mm, D90mm, etc.
Height of the Fall	10mm-2000mm, error≤±2mm
Diameter of the Sample	Φ16mm-Φ630mm
Deviation of Impact Center	≤2mm

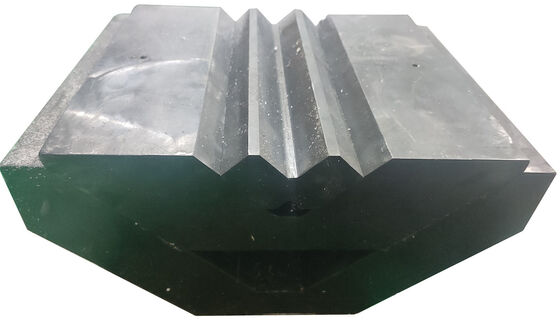

V-type Supporting	120°
Power Source	220VAC±10%
Outline Dimension	715mm×700mm×3900mm
Net Weight	380kg

Compliance Standards

ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, etc.

Frequently Asked Questions

Q1: How is the Drop Hammer Test Equipment defined?

A1: It is a specialized impact testing apparatus independently produced by TH in Beijing, China, applied to quantitatively evaluate the impact resistance of diverse test samples.

Q2: What is the core application goal of this testing apparatus?

A2: Its core application goal is to determine the impact resistance of tested objects to realize effective control and verification of product quality performance.

Q3: What categories of products are compatible with this test equipment?

A3: This equipment is applicable to a full range of pipes including PVC-U water supply pipes, sewage pipes, low pressure water supply pipes, low pressure transmission pipes, core layer foam pipes, double wall corrugated pipes and PE water supply pipes, and is also adaptive for rigid plastic plates.

Q4: What measurement precision does this Drop Hammer Test Equipment achieve?

A4: This testing equipment possesses a measurement precision that can reach a maximum level of 0.5%.

Q5: What is the upper limit of test energy for this impact test apparatus?

A5: The maximum rated test energy that this Drop Hammer Test Equipment can provide is 300J.
