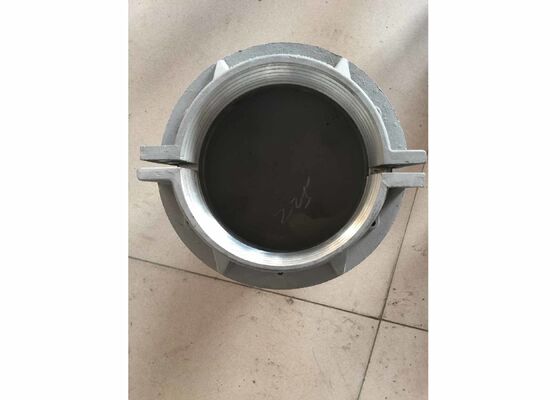

End Closure For Plastic Pipes Seal Joint
Suitable for internal pressure resistance testing with stainless steel construction.
Product Overview
The Φ200mm seal joints for internal pressure resistance testing are engineered to provide hermetic sealing for pipe pressure testing procedures. These joints exhibit full compatibility with our XGY series pipe hydrostatic testing machines, as well as third-party testing equipment.
Fabricated from premium 304 stainless steel, they feature a sleek and robust exterior finish. Boasting a proprietary structural design, they implement a clamp-first, seal-later mechanism, achieving an impeccable 100% success rate in one-time clamping and sealing operations.
Technical Specifications
| Name | End Caps |
|---|
| Max. Pressure | 10MPa |
|---|
| Dimension Size | Φ270×200mm |
|---|
| Temperature Range | 15-95°C |
|---|
| Specimen Diameter | Φ200mm |
|---|
| Single-End Weight | 10kg |
|---|
| Structure | Half round pot form, easy fit out, no leakage, convenient operation |
|---|
| Standards | GB/T6111, GB/15560, GB/T8252, ISO1167 |
|---|
| Function | Used for sealing pipe in static-press, proof-press, instantaneous-burst test of plastic pipes like PVC, PE, PPR, ABS, etc. as well as compound pipes |
|---|
Available Models
We also have these models: φ10, φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ75, φ90, φ110, φ125, φ140, φ160, φ180, φ200, φ225, φ250, φ280, φ315, φ355, φ400, φ450, φ500, φ560, φ630, φ710, φ800, φ900, φ1000, φ1100, φ1200, φ1500, φ2000mm, 1/2", 3/4", 1", 11/4", 11/2", 2", 21/2", 3", 4", 6", 8", 10", 12", 14", 16", 18", 20", 22", 24", etc.
Support for custom specifications.
Standard Configuration
- The bolts - 1 set
- Vent valve - 1 piece
- Connector - 1 piece
- Seal rings - 1 set
Frequently Asked Questions
Q: What is the applicable pressure rating range of this hydrostatic fixture?
A: This fixture is designed for pressure tests ranging from 0.1MPa to 20MPa, covering low, medium and high-pressure pipe testing requirements.
Q: What specific material is used for the fixture's sealing elements?
A: The sealing components are made of high-performance fluororubber (FKM), which offers excellent oil resistance, aging resistance and long service life.
Q: Which international and domestic test standards is this fixture compliant with?
A: It fully meets the requirements of GB/T 6111, ISO 1167, ASTM D1598 and other major pipe hydrostatic test standards.
Q: What is the net weight of a single set of this hydrostatic fixture?
A: The net weight of a single fixture assembly is approximately 12.5kg, with a compact structure and easy handling.
Q: What is the temperature resistance range of the fixture during operation?
A: The fixture can operate stably in an environment temperature range of -10℃ to 80℃, adapting to various laboratory and on-site test conditions.
