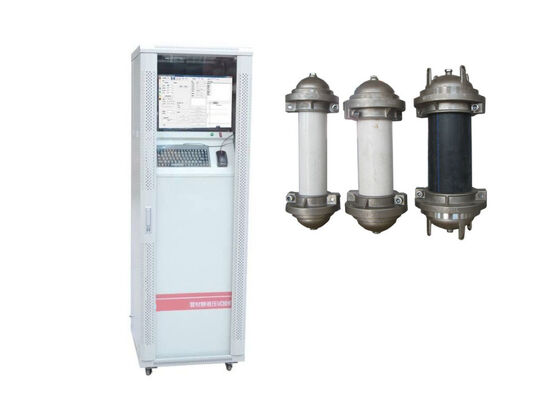

Hydrostatic Pressure Testing Machine for Plastic Pipes, Fittings and Valves
Application
The Hydrostatic Pressure Testing Equipment is engineered for determining the internal pressure resistance of plastic pipes, pipe fittings and valves under constant temperature conditions. This essential testing device serves manufacturers, scientific research institutions, and quality control authorities for performance inspection and measurement of test specimens.
Key Features

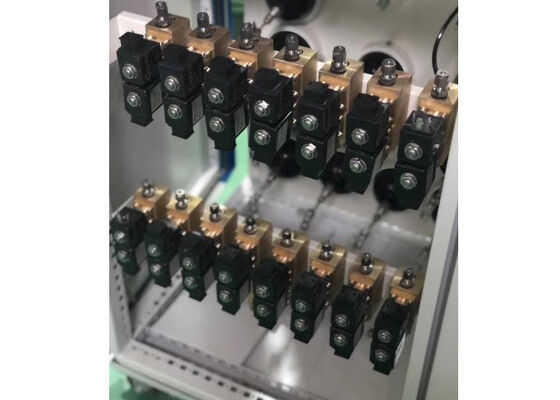

This precision equipment features advanced pressure control components and automated pressure charging/discharging modules. The system utilizes MCU microcomputer-based regulation with a high-resolution, high-speed ∑-delta 16-bit ADC chip for real-time data communication and adaptive pressure control.
Pressure Station
The core pressure station delivers stable pressure to the main testing unit, with minimum pressure thresholds exceeding specimen requirements. Features an imported American plunger pump with large flow rate, low noise, high pressure resistance, and maintenance-free operation.
Water Tank System
Constructed with 304# stainless steel, the water tank integrates electric opening mechanisms, self-circulation modules, heating units, automatic water replenishment systems, and thermal insulation components for comprehensive liquid circulation and temperature preservation.
Temperature Control
Precisely regulates water temperature with independent functional modules for real-time display and temperature setpoint adjustment. Maintains optimal liquid levels and ensures consistent test temperatures throughout the entire testing process.
Software System
Connected via RS232 serial interface, the software supports comprehensive operational functions including test parameter configuration, equipment calibration, pressure relief, zero calibration, amplitude adjustment, real-time test curve plotting, full-process data logging, and standardized test report printing.
Compliance Standards
GB/T18742.1, GB/T18742.2, GB/T18742.3, GB/T13663, GB/T15558.1, GB/T15558.2, GB/T18992.1, GB/T18992.2, GB/T10002.1, GB/T10002.2, GB/T18993.1, GB/T18993.2, GB/T18997.1, GB/T18997.2, ISO 1167
Technical Specifications
| Pipe diameter range |
Φ16~Φ1600mm |
| Working position |
3, 5, 6 positions (1~50 positions customizable) |
| Operation mode |
Operation panel/PC control |
| Pressure range |
0.2~10MPa (customizable) |
| Pressure resolution |
0.001MPa |
| Pressure control accuracy |
-1%~+2% |
| Measuring range |
5%~100% F.S. |
| Timing range |
1s~9999H 99M 99S |
| Timing accuracy |
±0.1% |
| Display resolution |
1s |
| Min. Time setting unit |
min |
| Temperature control system |
15~95℃ with refrigerating system |
| Temperature control accuracy |
±0.5℃ |
| Main body material of water tank |
304# stainless steel |
| Power supply - Pressure control meter |
AC220V, 50Hz |
| Power supply - Pressure workstation |
3phase, AC380V, 50Hz |
| Power supply - Constant temperature tank |
3phase, AC380V, 50Hz |
Standard Accessories
- Pressure host
- Pressure station
- Water tank with temperature control system
- End caps
- Refrigeration system
Frequently Asked Questions
Q1: What range of constant test temperature can the pipe hydrostatic testing machine achieve, and what types of plastic pipes is this temperature control performance applicable to?
This equipment can achieve a constant test temperature range from room temperature up to 95℃ with precise thermal insulation. This performance is perfectly applicable to thermal plastic pipe materials including PE, PPR, PVC and ABS pipes, tailored for the constant temperature hydrostatic pressure detection requirements of different plastic pipes in industrial production.
Q2: What is the pressure regulation precision of the pipe hydrostatic testing machine, and what core pressure performance tests can it complete relying on this high precision?
The machine features a pressure regulation precision of 0.001MPa with stable pressure output. It can complete three core hydrostatic tests for pipes: static pressure burst test, long-term pressure resistance test and creep damage test, fully meeting the essential pressure performance detection standards of pipe products.
Q3: What is the applicable pipe diameter range of the automatic pipe hydrostatic testing machine, and which key industrial pipe application scenarios is it adapted to?
It supports a wide applicable pipe diameter range from DN20 to DN1800mm for various pipe types. It is specially adapted to production and quality inspection scenarios of municipal water supply and drainage pipes, building heating pipes and gas transmission pipes, covering mainstream industrial pipe application fields.
