End Closure For Plastic Pipes
Product Overview

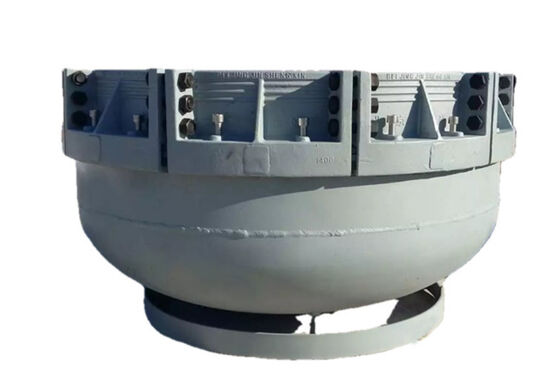

End closure for plastic pipes featuring base clamp, sealing pressure plate, and fastening screws designed for internal pressure resistance during hydrostatic testing.
Intended Use
Designed to deliver reliable sealing for plastic piping specimens during hydrostatic pressure and burst testing, in full accordance with ISO 1167, ASTM D1598 and ASTM D1599 standards.
Construction
The end cap assembly consists of a support base, silicone sealing ring, connecting bolts, sealing platen and fastening jig.
Fastening screws are configured for the sealing platen. A medium overload protection structure is reserved in the mounting hole of the clamp base, and the inner side of the clamping jaw is precision-machined for the fastening jig.
Technical Specifications
| Specification |
DN1600 |
| Structure |
Pan structure |
| Sealing ring |
O-ring |
| Conversion connector |
PT1/4, internal thread, stainless steel material |
| End closures connector |
1/4", M12*1.25, M16*1.5, Can be customized |
| Material |
Stainless steel or Carbon steel |
| Max. pressure |
1.2MPA |
| Temp. range |
15-95 ℃ |
| Outline dimension |
Φ1900*600mm(single) |
| Weight |
650KG(single) |
Product Size & Compatibility
We boast an annual output of tens of thousands of end closure units. These end closures are fabricated from 45# carbon steel or 304# stainless steel.
We provide a diverse range of structural configurations, covering end seal, external seal and double seal designs, compatible with pipes of assorted outer diameters. We additionally offer customized end closure solutions in line with your specific testing specifications.
Applicable Pipe Dimensions
Metric series:
φ10, φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ75, φ90, φ110, φ125, φ140, φ160, φ180, φ200, φ225, φ250, φ280, φ315, φ355, φ400, φ450, φ500, φ560, φ630, φ710, φ800, φ900, φ1000, φ1100, φ1200, φ1500, φ2000 mm
Imperial series:
1/2", 3/4", 1", 1‑1/4", 1‑1/2", 2", 2‑1/2", 3", 4", 6", 8", 10", 12", 14", 16", 18", 20", 22", 24" and other standard specifications.
Frequently Asked Questions
Q: What plastic pipe materials can this hydrostatic fixture be applied to?
A: It is suitable for PVC‑U, HDPE, PPR, ABS and other common thermoplastic pipe materials.
Q: How many test cycles can the sealing parts of this fixture withstand?
A: The sealing components can withstand more than 5,000 test cycles with stable performance.
Q: What is the nominal working pressure of this hydrostatic fixture?
A: Its nominal working pressure can reach up to 10 MPa for long‑term testing.
Q: What is the matching accuracy between the fixture and the pipe end?
A: The matching accuracy between the fixture and pipe end is controlled within ±0.03 mm.
Q: What thread specifications are adopted for the fixture's connecting ports?
A: The connecting ports adopt standard international threads including G1/2, G3/4 and G1.
Q: What is the fatigue test life of this fixture under repeated pressure?
A: It can pass more than 10,000 times of pressure cycle fatigue tests without failure.
