Hydrostatic Pressure Testing Machine Suitable for Pressure Testing of Industrial Equipment Ensuring Safety and Durability

Large Image : Hydrostatic Pressure Testing Machine Suitable for Pressure Testing of Industrial Equipment Ensuring Safety and Durability

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-10C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Suitable For Pressure Testing Of Industrial Equipment Ensuring Safety And Durability	Testing Range:	0-10MPA
Accuracy:	-1%~+2%	Test Temperature Range:	10~95℃
Display:	LCD	Test Curve:	Pressure-time And Pressure-temperature
Safety Protection:	Over Pressure/Over Temperature	Test Mode:	Automatic
Test Medium:	Water	Customized Support:	OEM
Certificate:	CE, ISO
Highlight:	Hydrostatic Pressure Testing Machine for industrial equipment , Hydrostatic Pressure Testing Machine with safety assurance , Durable Hydrostatic Pressure Testing Machine

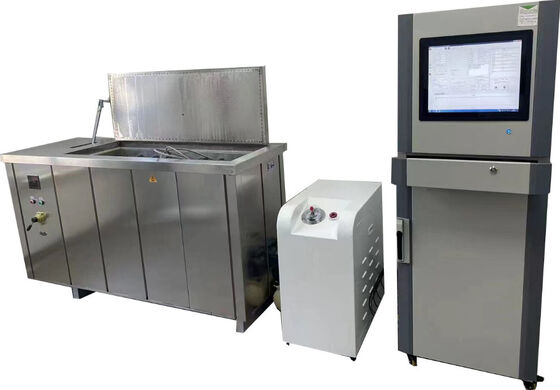

Hydrostatic Pressure Testing Machine

Suitable for pressure testing of industrial equipment ensuring safety and durability

Product Overview

This hydrostatic pressure test equipment is designed to determine the long-term hydrostatic strength and instant bursting capability of PVC, PE, PPR, ABS, and other plastic pipes.

Key Features

Dual PC-based control system for precise and stable operation
LCD display panel for real-time monitoring of test parameters
Independent control for each test station with up to 100 configurable stations
Multiple testing modes including hydrostatic test, burst test, and 8760 long-term static pressure test
Adjustable pressure range from 3MPa to 100MPa
Identifies eight testing statuses and automatically judges effective/ineffective time parameters

Compliance Standards

ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335

Technical Parameters

Model	XGY-10C
Diameter Range	8-1600mm
Stations	5, 10, 12, 15, 20, 50 (customizable)
Control Mode	Micro-control, industrial PC control
Display Mode	Industrial PC LCD color display
Storage Mode	PC storage
Print Mode	Color printer output
Test Pressure Range	10 MPa
Control Accuracy	±1%
Display Resolution	0.001MPa
Working Range	5%~100%FS
Indication Error	±1%
Timer Range	0~10000h
Timer Accuracy	±0.1%
Timer Resolution	1s
Power	380V 50Hz three-phase four-wire 1.1KW
Dimensions (three stations)	700×600×1700(mm) or customized

Support & Services

We provide comprehensive technical support and services for our Plastic Pipe Hydrostatic Pressure Testing Machines:

Equipment installation and on-site commissioning
Fault troubleshooting and professional technical consultation
Equipment repair and routine maintenance services
Original spare parts and consumable supplies
Software updates and version upgrades

Frequently Asked Questions

Q: What is the brand designation of the Plastic Pipe Hydrostatic Pressure Testing Machine?

A: The brand designation is TH, manufactured in Beijing, China.

Q: What is the primary function of this testing machine?

A: It is engineered to evaluate the hydrostatic strength and bursting strength of plastic pipes.

Q: What types of pipes and materials can be tested?

A: Applicable for testing plastic and composite pipes including PP-R, PP-B, PP-A, PVC, PE, PE-X and similar pipe types.

Q: What is the measurement accuracy?

A: Measurement accuracy is within 0.1% of the full-scale reading.

Q: What is the maximum testing pressure?

A: Capable of handling testing pressures up to 10MPa (100 bar / 1450 psi).
