Hydrostatic Pressure Testing Machine Featuring Advanced Pressure Regulation and Measurement for Industrial Equipment Testing

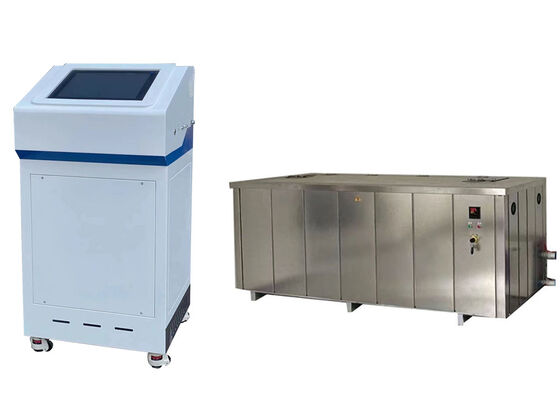

Large Image : Hydrostatic Pressure Testing Machine Featuring Advanced Pressure Regulation and Measurement for Industrial Equipment Testing

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-20C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Featuring Advanced Pressure Regulation And Measurement For Industrial Equipment Testing	Testing Range:	0-10MPA
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
End Caps:	Φ8-1800mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	Hydrostatic pressure testing machine with advanced regulation , Industrial hydrostatic pressure testing equipment , Pressure measurement machine for industrial testing

Hydrostatic Pressure Testing Machine Featuring Advanced Pressure Regulation and Measurement for Industrial Equipment Testing

Product Overview

The Fully Automated Hydrostatic Pressure Test Equipment for Thermoplastic Tube Testing delivers precise, consistent, and reliable pressure resistance testing for thermoplastic pipes, fittings, and valves. Manufactured in Beijing, China, this ISO9001-certified equipment serves manufacturers, suppliers, and end-users across construction, water supply, gas supply, and chemical engineering sectors.

Technical Specifications

Parameter Item	Detailed Specification
Product Designation	Hydrostatic Pressure & Bursting Testing Machine
Measurement Accuracy	-1% ~ +2% (full-scale range)
Data Storage Mode	PC-based data storage
Model Number	XGY-10C
Test Timing Range	0 ~ 10000 hours (adjustable)
Certifications	CE, ISO

Comprehensive Technical Parameters

Parameter	Specification
Model	XGY-10C
Diameter range	Φ8-1800mm
Stations	3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc (customizable)
Control mode	Micro-control, industrial PC control
Display mode	Industrial PC LCD color display
Storage mode	PC storage
Print mode	Color printer output
Test pressure range	0.1-10MPa
Control accuracy	±1%
Display resolution	0.01MPa
Working range	5%~100%FS
Indication error	±1%
Timer range	0~10000h
Timer accuracy	±0.1%
Timer resolution	1s
Power	380V 50Hz three-phase four-wire 1.5KW
End caps models	from Φ16 to 630mm
Water tank size	According to pipe size
Temperature range	15-95℃
Dimensions (three stations)	715×625×1700(mm) or customized

Compliance Standards

ISO1167-2006
ASTMD1598-2004
ASTMD1599
ISO9080
CJ/T108
ASTMF1335

Product Features

The XGY-20C model features end caps accommodating pipe diameters from Φ8mm to 1800mm. This versatile testing machine incorporates advanced functionalities including automatic pressure regulation, automatic water injection, and pressure relief safeguard mechanisms, ensuring streamlined operations and operator safety throughout testing procedures.

With its wide high-pressure operating range, this equipment is ideal for assessing pressure resistance across various fluid pressure endurance equipment in oil and gas, chemical engineering, and construction industries where verifying equipment pressure resistance is critical for operational safety and long-term reliability.
