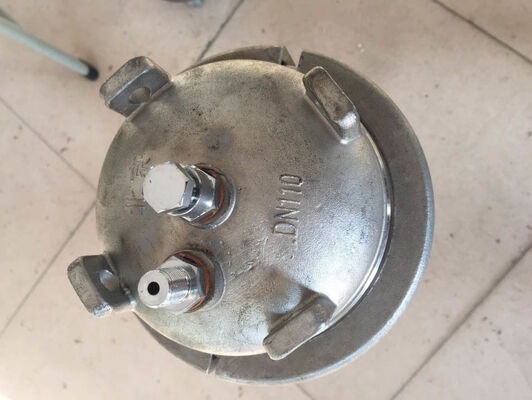

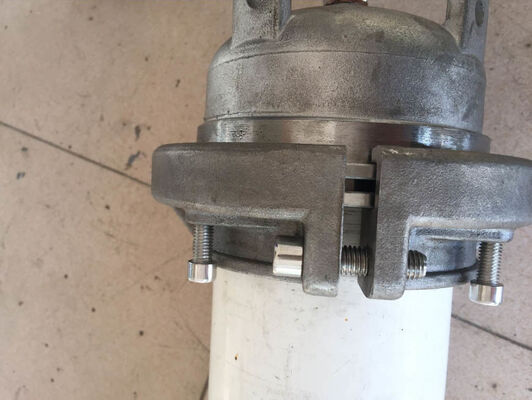

End Closure For Plastic Pipes Pipe End Caps Featuring Nickel Coating And Multiple Caps Structure For Leak Proof Sealing

End Closure For Plastic Pipes Pipe End Caps Featuring Nickel Coating And Multiple Caps Structure For Leak Proof Sealing
End Closure For Plastic Pipes Pipe End Caps Featuring Nickel Coating And Multiple Caps Structure For Leak Proof Sealing

Large Image :  End Closure For Plastic Pipes Pipe End Caps Featuring Nickel Coating And Multiple Caps Structure For Leak Proof Sealing

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: TH
Certification: ISO9001
Model Number: XGY
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 3~5 work days
Payment Terms: T/T,L/C,Western Union,MoneyGram,D/P,D/A
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Product Name: End Closure For Plastic Pipes Pipe End Caps Featuring Nickel Coating And Multiple Caps Structure For Leak Proof Sealing Test Specimen: Plastic Pipes Like PVC, PE, PPR, ABS, Etc
Material: 304# Stainless Steel Or Carbon Steel Technics: Casting
Shape: Half Round Pot Type: Plug
Model: φ 110mm
Highlight:

nickel coated plastic pipe end caps

,

leak proof pipe end closures

,

multiple caps plastic pipe seals

End Closure For Plastic Pipes Pipe End Caps
Featuring nickel coating and multiple caps structure for leak-proof sealing in pipeline hydrostatic pressure testing applications.
Product Overview
  • Annual output of tens of thousands of end closures maintaining superior technology and consistent quality
  • Fabricated from premium 45# carbon steel or 304# stainless steel
  • Available in multiple configurations: end seal, external seal, and double seal
  • Accommodates various pipe diameter specifications
Configuration Specifications
End Seal Configuration: Engineered for pipes with diameter of 315mm and below. Features triple-cap, non-welded design achieving zero leakage under high pressure. Surface nickel plating provides hassle-free assembly, outstanding sealing efficiency, and extended service life.
External Seal Configuration: Applicable for pipes ranging from 250mm to 2000mm in diameter. Utilizes four- to six-cap, non-welded structure maintaining leak-tight performance under high pressure. Nickel coating ensures stable, durable operation with 100% installation success rate.
Frequently Asked Questions
What is the applicable nominal diameter range of the pipe static hydraulic clamp?
The nominal diameter applicable scope covers from DN20mm to DN2000mm to meet various testing demands.
What is the maximum allowable working pressure of this static hydraulic clamp?
The maximum allowable working pressure can reach up to 25MPa for high-pressure hydrostatic testing.
What materials are available for the pipe static hydraulic clamp?
The clamp can be customized with 45# carbon steel or 304# stainless steel as the main structural material.
What sealing structures does this hydrostatic clamp adopt?
It adopts three mainstream structures: inner end sealing, external sealing and double-sided sealing for different working conditions.
Which types of pipes is this static hydraulic clamp suitable for?
It is widely used for PVC, PE, PP-R, ABS, plastic pipes and multi-layer composite pipes in hydrostatic tests.
What surface treatment process is used for this clamp?
The fixture adopts professional nickel coating treatment to enhance corrosion resistance and service life.
What is the structural feature of the clamp for large-diameter pipes?
For pipes over 250mm, it uses a multi-cap non-welded structure with high strength and stable sealing performance.
What are the installation characteristics of this pipe static hydraulic clamp?
It features tool-free quick assembly, high installation efficiency and 100% leak-proof performance under rated pressure.
Product Gallery
End Closure For Plastic Pipes Pipe End Caps Featuring Nickel Coating And Multiple Caps Structure For Leak Proof Sealing 0 End Closure For Plastic Pipes Pipe End Caps Featuring Nickel Coating And Multiple Caps Structure For Leak Proof Sealing 1 End Closure For Plastic Pipes Pipe End Caps Featuring Nickel Coating And Multiple Caps Structure For Leak Proof Sealing 2 End Closure For Plastic Pipes Pipe End Caps Featuring Nickel Coating And Multiple Caps Structure For Leak Proof Sealing 3 End Closure For Plastic Pipes Pipe End Caps Featuring Nickel Coating And Multiple Caps Structure For Leak Proof Sealing 4
