End Closure For Plastic Pipes Manufactured To Fit Different Pipe Diameters And Testing Requirements With Metal Materials

Large Image : End Closure For Plastic Pipes Manufactured To Fit Different Pipe Diameters And Testing Requirements With Metal Materials

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001
Model Number:	XGY

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	3~5 work days
Payment Terms:	T/T,L/C,Western Union,MoneyGram,D/P,D/A
Supply Ability:	1000 sets per month

Contact Now

Detailed Product Description

Product Name:	End Closure For Plastic Pipes Manufactured To Fit Different Pipe Diameters And Testing Requirements With Metal Materials	Test Specimen:	Plastic Pipes Like PVC, PE, PPR, ABS, Etc
Material:	304# Stainless Steel Or Carbon Steel	Technics:	Casting
Shape:	Half Round Pot	Type:	Plug
Model:	φ 450mm
Highlight:	metal end closure for plastic pipes , end closure for different pipe diameters , plastic pipe end closure with warranty

End Closure For Plastic Pipes

Product Overview

Our end caps are specifically designed to deliver reliable sealing for plastic pipes (including PVC, PE, PPR, ABS and other types) during pipe internal pressure testing. They are fully compatible with our XGY Pipe Hydrostatic Testing Machine and can also be perfectly matched with your existing testing machine models.

Product Specifications

We boast an annual production capacity of tens of thousands of end caps, ensuring timely supply and stable product consistency. The raw materials adopted for our end caps are 45# carbon steel or 304# stainless steel, providing excellent structural rigidity and long service life.

We offer multiple end cap configurations, including:

End seal type
External seal type
Double seal type

Each configuration is customized to fit pipes of different diameter specifications. We are capable of manufacturing customized end caps in line with your specific testing requirements, offering flexible solutions for unique application scenarios.

Compatible Pipe Sizes

Metric Pipe Sizes: φ10mm, φ16mm, φ20mm, φ25mm, φ32mm, φ40mm, φ50mm, φ63mm, φ75mm, φ90mm, φ110mm, φ125mm, φ140mm, φ160mm, φ180mm, φ200mm, φ225mm, φ250mm, φ280mm, φ315mm, φ355mm, φ400mm, φ450mm, φ500mm, φ560mm, φ630mm, φ710mm, φ800mm, φ900mm, φ1000mm, φ1100mm, φ1200mm, φ1500mm, φ2000mm.

Inch Pipe Sizes: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 6", 8", 10", 12", 14", 16", 18", 20", 22", 24", and other common inch specifications.

Design Features

Includes bolt, O-ring, vent valve and all assembly complete (Interface thread size can be customized)
Fixture structure: Half round pot form, easy fit out, no leakage, convenient operation

Technical Parameters

Parameter	Value
Max. Diameter (mm)	φ580
Height of one end (mm)	385
Weight of one end (KG)	110
O-ring size (mm)	φ450*16
Max. pressure (Mpa)	8
Nominal value (Mpa)	5

Standard Configuration

The bolts - 1 set
Vent valve - 1 piece
Connector - 1 piece
Seal rings - 1 set

Frequently Asked Questions

Q1: What materials are adopted for the pipe hydrostatic test fixtures?

A1: The pipe hydrostatic test fixtures are constructed with stainless steel and carbon steel, delivering high strength and stability for pipe burst testing.

Q2: What is the applicable temperature range for these hydrostatic test fixtures?

A2: These fixtures can operate steadily within a temperature range of 10℃ to 80℃ for plastic pipe testing.

Q3: What kind of test are these fixtures mainly used for?

A3: They are mainly used for burst testing of plastic pipes, ensuring reliable sealing and pressure resistance during the test.

Q4: In what medium is the pipe test usually carried out with these fixtures?

A4: The test is generally performed in water, which is the standard medium for plastic pipe hydrostatic and burst tests.

Q5: What material is used for the sealing ring of the fixture?

A5: The sealing ring is made of silicone rubber, which offers good elasticity and sealing performance.

Q6: Can the fixture and sealing ring work reliably in underwater and 10-80℃ conditions?

A6: Yes. The stainless steel and carbon steel fixture matches well with the silicone rubber seal, ensuring stable performance in underwater environments at 10℃ to 80℃.

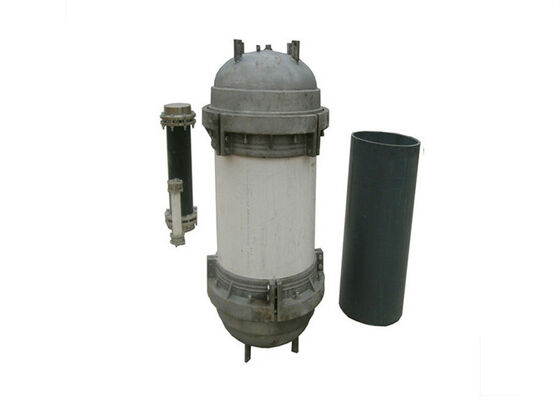

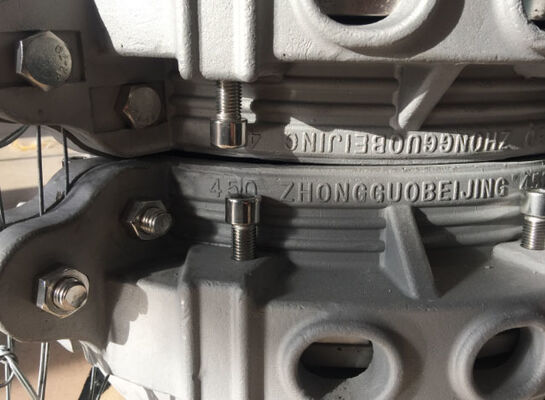

Product Images
