Drop Hammer Impact Testing Machine Capable of Conducting Repeated Impact Tests to Assess Material Fatigue and Strength

Large Image : Drop Hammer Impact Testing Machine Capable of Conducting Repeated Impact Tests to Assess Material Fatigue and Strength

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XJL-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Impact Testing Machine Capable Of Conducting Repeated Impact Tests To Assess Material Fatigue And Strength	Hammer Diameter:	D25mm,D90mm, Etc
Test Range:	0-300J	Drop Hammer Quality:	0.5kg-16kg
V-type Supporting:	120°	Max. Height:	2000mm
Min. Height:	10mm	Power Supply:	AC220V/50Hz
Highlight:	drop hammer impact testing machine with warranty , material fatigue impact testing machine , repeated impact strength testing machine

Drop Hammer Impact Testing Machine

Capable of conducting repeated impact tests to assess material fatigue and strength

Product Overview

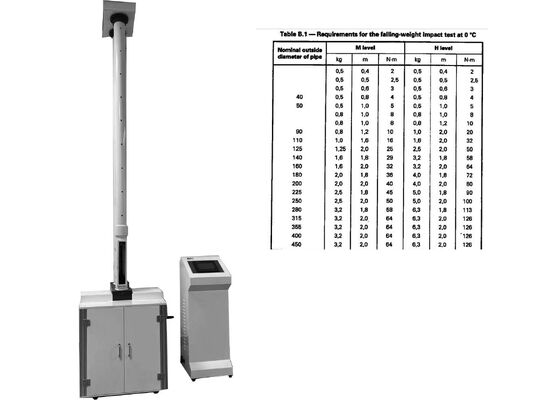

The XJL-300A Falling Weight Impact Tester is a high-precision, stable testing machine used to characterize the impact resistance and toughness of plastic pipes. It conforms to ISO 3127 and equivalent test method standards, and is widely applied in scientific research, inspection and production units engaged in plastic pipe products.

This instrument is an ideal testing solution for the building materials industry and scientific research institutions. It features an anti-secondary impact function, automatic setting and real-time display of impact height, and supports both pass-fail and gradient testing methods.

Key Features

Hammer mass range: 0.5 kg - 16 kg

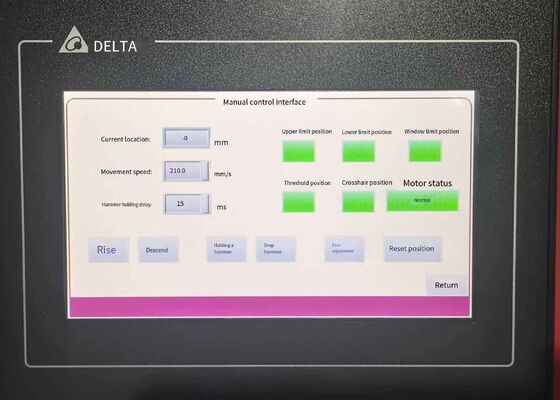

PLC control system for precise operation
Automatic hammer lifting to target height
Anti-secondary impact protection
Real-time height display
High reliability meeting GB 6112-85 specifications

Compliance Standards

ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, and equivalent standards.

Technical Parameters

Parameter	Specification
Model	XJL-300A
Ambient temperature	10℃-35℃
Drop hammer quality	0.5kg-16kg
Hammer diameter	D25mm, D90mm, etc
Height of the fall	10mm-2000mm, error≤±2mm
Diameter of the sample	Φ16mm-Φ630mm
Deviation of impact center	≤2mm
V-type supporting	120°
Power source	220VAC±10%
Outline dimension	715mm×700mm×3900mm
Net weight	380kg

Support and Services

We provide complete technical support and after-sales service for our Falling Weight Impact Testing Equipment. Our professional engineering and technical team offers expert guidance covering installation, routine maintenance, troubleshooting, calibration and other related services. Customized solutions can also be developed to satisfy your specific application requirements.

Our service team remains available around the clock to respond to your inquiries and technical demands.

Packing and Shipping

The Drop Hammer Test Equipment is robustly packed in export-grade wooden crates to ensure safe transportation. Each package includes the main testing unit, operation manual, and all accompanying parts and accessories.

Shipping cost is calculated based on destination and selected transport mode. All required official documents including commercial invoice, packing list and certificates are provided.

Frequently Asked Questions

What is Drop Hammer Test Equipment?

Drop Hammer Test Equipment is a precision testing instrument manufactured by TH in Beijing, China, used to determine the impact resistance of test specimens.

What is the purpose of Drop Hammer Test Equipment?

The purpose is to evaluate product impact resistance to effectively control and ensure product quality.

What products can Drop Hammer Test Equipment be used for?

Suitable for various pipes including PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, low-pressure transmission pipes, core-layer foam pipes, double-wall corrugated pipes, PE water supply pipes, as well as rigid plastic plates.

What is the accuracy of Drop Hammer Test Equipment?

The testing accuracy is as high as 0.5%.

What is the maximum testing energy of Drop Hammer Test Equipment?

The maximum impact energy available is 300 J.
