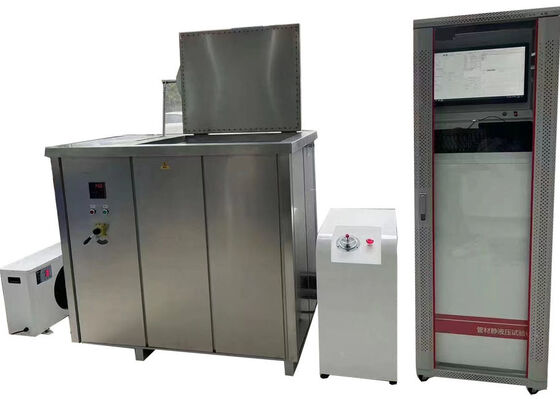

Large Image :  Hydrostatic Pressure Testing Machine Offering and Accurate Pressure Testing for Assurance in Manufacturing and Maintenance Operations

Product Details:
Place of Origin: Beijing, China
Brand Name: TH
Certification: ISO9001, CE
Model Number: XGY-20C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 7 -15 days
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Product Name: Hydrostatic Pressure Testing Machine Offering And Accurate Pressure Testing For Assurance In Manufacturing And Maintenance Operations Maximum Test Pressure: 20MPA
Accuracy: -1%~+2% Test Temperature Range: 10~95℃
End Caps: Φ​6-1200mm Display: LCD
Test Curve: Pressure-time And Pressure-temperature Safety Protection: Over Pressure/Over Temperature
Test Mode: Automatic Test Medium: Water
Customized Support: OEM Certificate: CE, ISO
Highlight:

hydrostatic pressure testing machine with warranty

,

accurate hydrostatic pressure testing equipment

,

industrial hydrostatic pressure testing system

Hydrostatic Pressure Testing Machine
Product Overview

This instrument is designed to determine the long-term pressure resistance failure time or the instantaneous maximum burst pressure of thermoplastic pipes and composite pipes under constant internal pressure and constant temperature conditions.

It serves as an essential testing device for plastic pipe manufacturers and professional testing institutions.

Key Features
  • Advanced structural design with air-free hydraulic pressurization system (water as test medium) ensuring high safety and operational reliability
  • High-reliability imported solenoid valves for enhanced stability and service life
  • High-pressure pump head equipped with imported Type 2525 three-plunger high-pressure pump head, rated at 25MPa
  • Independent channel testing - completion or failure of one sample doesn't interfere with other ongoing tests
  • Power failure protection function automatically recovers test data upon power resumption
Compliance Standards

This testing machine complies with multiple international and national test standards:

  • GB/T 6111-2018: Thermoplastics Piping Systems for Fluid Conveyance
  • GB/T 15560-95: Short-Time Hydraulic Failure and Constant Internal Pressure Resistance
  • ISO 1167-2006: Thermoplastics Pipes, Fittings and Assemblies for Fluid Conveyance
  • ASTM D1598-2004: Time-to-Failure of Plastic Pipe Under Constant Internal Pressure
  • ASTM D1599: Resistance to Short-Time Hydraulic Pressure of Plastic Pipe, Tubing, and Fittings
Technical Specifications
Parameter Specification
Model XGY-20C
Diameter Range Φ6-1200mm
Stations 3, 5, 6, 10, 12, 15, 20, 25, 50, 100 (customizable)
Control Mode Micro-control, industrial PC control
Test Pressure Range 0.4-20MPa, 0.04-200Bar
Control Accuracy ±1%
Timer Range 0~10000h
Timer Accuracy ±0.1%
Power 380V 50Hz three-phase four-wire 2.5KW
Temperature Range 10-95℃
Dimensions (three stations) 780×640×1720(mm) or others
Support & Services

We provide comprehensive technical support and after-sales service:

  • On-site machine installation and commissioning
  • Professional troubleshooting and technical consultation
  • Specialized repair and routine maintenance services
  • Supply of genuine spare parts and consumables
  • Software updates and system upgrade services
Frequently Asked Questions
What is the brand of the Plastic Pipe Hydrostatic Pressure Testing Machine?
The brand is TH, manufactured in Beijing, China.
What is the main purpose of this testing machine?
It is specially designed to test the hydrostatic pressure resistance and bursting strength of plastic pipes.
Which types of components and materials can be tested?
Applicable for testing plastic pipes and composite pipes including PP-R, PP-B, PP-A, PVC, PE, PE-X and related materials.
What is the testing accuracy?
Features an accuracy of within 0.1% of the full-scale reading.
What is the maximum test pressure?
Can achieve a maximum test pressure of up to 10MPa (100 bar, 1450 psi).
Product Images
Hydrostatic Pressure Testing Machine Offering and Accurate Pressure Testing for Assurance in Manufacturing and Maintenance Operations 0 Hydrostatic Pressure Testing Machine Offering and Accurate Pressure Testing for Assurance in Manufacturing and Maintenance Operations 1 Hydrostatic Pressure Testing Machine Offering and Accurate Pressure Testing for Assurance in Manufacturing and Maintenance Operations 2
