Hydraulic Universal Testing Machine integrating hydraulic power source and precise measurement system for material compression testing

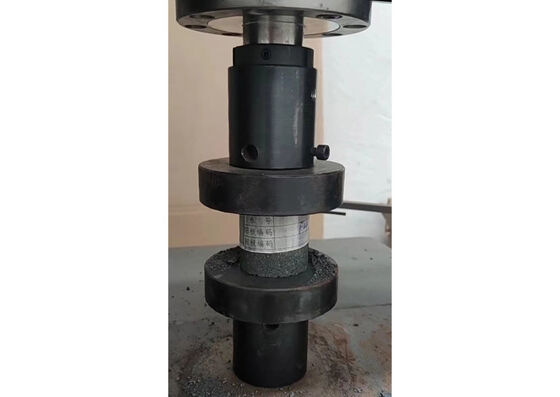

Large Image : Hydraulic Universal Testing Machine integrating hydraulic power source and precise measurement system for material compression testing

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001 , CE
Model Number:	WAW-Y2000DX

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydraulic Universal Testing Machine Integrating Hydraulic Power Source And Precise Measurement System For Material Compression Testing	Model:	WAW-Y2000DX
Max.load:	2000KN	Test Machine Level:	0.5
Effective Force Measurement Range:	2%～100%	Error Of The Test Force Indication Value:	±1%
Maximum Distance Between Upper And Lower Plates:	0-320mm	Size Of Upper And Lower Pressing Plate:	300*260mm
Highlight:	Hydraulic Universal Testing Machine with precise measurement , Hydraulic material compression testing machine , Universal Testing Machine integrating hydraulic power

Hydraulic Universal Testing Machine

Product Overview

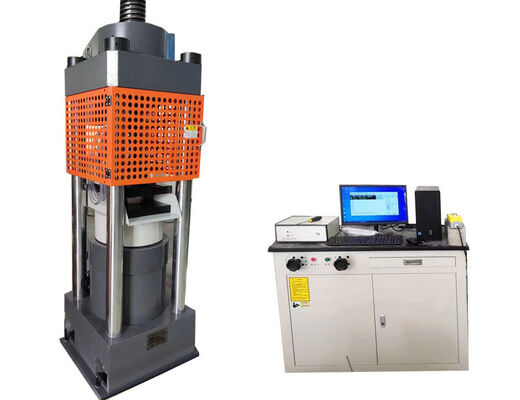

The WAW-Y2000DX microcomputer-controlled electro-hydraulic servo pressure testing machine is a high-precision material compression testing instrument designed for applications in metallurgy, building materials, aviation, aerospace, higher education institutions, and scientific research organizations. This electromechanical-hydraulic integrated testing equipment comprises four key components: test mainframe, oil supply unit (hydraulic power source), measurement and control system, and testing instruments.

Competitive Advantages

Through continuous independent R&D investment and establishment of our own processing center, we manufacture core components in-house. This approach effectively reduces intermediate costs while maintaining consistent product quality. Our high-quality products deliver superior long-term value compared to low-cost alternatives, significantly lowering machine failure rates, reducing maintenance costs, and enhancing operational efficiency.

Compliance Standards

The equipment conforms to the following authoritative national test standards:

GB/T 3722-1992 Hydraulic Pressure Testing Machine
GB/T 50081-2002 Method of Test for Compressive Strength of Ordinary Concrete
GB/T 17671-1999 Test Method for Cement
GB/T 2542-2003 Test Method for Wall Bricks
GB 13544-2000 Test Method for Sintered Perforated Bricks
GB/T 5101-2003 Strength Test Requirements for Sintered Common Bricks

Technical Specifications

Parameter	Specification
Maximum test force	2000kN
Test machine level	0.5
Effective force measurement range	2%～100%
Error of the test force indication value	±1%
Maximum distance between upper and lower plates	0-320mm
Size of upper and lower pressing plate	300×260mm
Column left and right span	Not less than 300mm
Maximum travel trip of the work piston	Not less than 100mm
Piston speed	50mm/min
Oil pump rated flow	5L/min
Overall dimension of the hydraulic source	1100×700×1100(mm)
Main size	680×680×1800(mm)
Total power	3kW (380V)
Power source	Three-phase five-line system
Weight	1600kg

Packaging & Shipping

Frequently Asked Questions

Q1. Is your company a trading company or a manufacturing factory?

We are a factory-integrated trading enterprise with 18 years of focused experience in the testing instrument field and 14 years of export practice.

Q2. How can I select the most suitable product for my needs?

Our professional technical team will provide appropriate recommendations based on your specific test type and required specifications.

Q3. What are your delivery terms?

We typically maintain factory stock. For custom orders, normal delivery time is 15-20 working days after receiving advance payment. Special arrangements can be made for urgent requirements.

Q4. Do you provide customization services?

Yes, we provide both standard machine models and custom solutions tailored to your specific requirements.

Q5. How is the machine packaged, and is it well-protected during transportation?

All machines are packed in standard export wooden crates that effectively ensure protection during transportation. We have extensive experience delivering testing machines overseas via sea or air transport, with all shipments arriving intact.
