Drop Hammer Impact Testing Machine Equipped with Automatic Drop Hammer Mechanism for Streamlined Impact Testing Processes

Large Image : Drop Hammer Impact Testing Machine Equipped with Automatic Drop Hammer Mechanism for Streamlined Impact Testing Processes

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001 , CE
Model Number:	XJL-300B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Impact Testing Machine Equipped With Automatic Drop Hammer Mechanism For Streamlined Impact Testing Processes	Travel Of Working Table:	0-630mm
Specimen Diameter:	φ10~630mm	Hammer Diameter:	D25, D90, R5, R10, R30, R50 Can Optional
Hammer Weight:	0.250~16.000kg 0.125kg/ Increment	Max. Impact Height:	2000mm
Highlight:	automatic drop hammer impact tester , drop hammer testing machine with warranty , impact testing equipment for streamlined processes

Drop Hammer Impact Testing Machine with Automatic Drop Hammer Mechanism

This advanced testing machine features an automatic drop hammer mechanism designed to streamline impact testing processes for enhanced efficiency and accuracy.

Equipment Overview

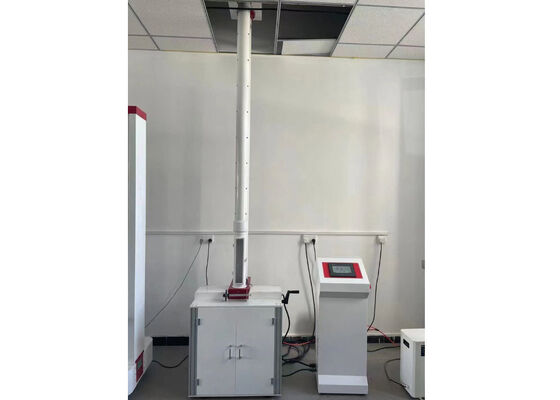

The Drop Hammer Impact Testing Machine incorporates a dual-tube structural design, consisting primarily of a worktable, anti-secondary impact mechanism, hammer assembly, lifting mechanism, automatic hammer release mechanism, motor, reducer, electric control cabinet, and main frame.

It is extensively employed to determine the impact resistance of various plastic pipes, and is also applicable for impact performance testing of plastic sheets and profiles.

This series of testing instruments is widely adopted by scientific research institutions, universities, quality inspection authorities, and manufacturing enterprises to carry out drop hammer impact tests.

Key Features

Equipped with dual operational modes (manual and automatic) for effortless and intuitive operation

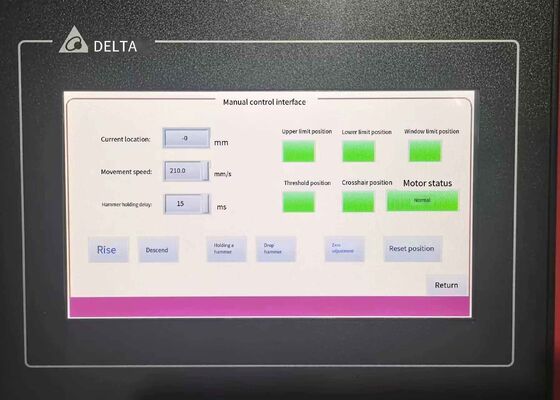

Controlled by a dedicated microcontroller with automatic hammer gripping, lifting, height calibration and real-time height display
Integrated with automatic zero-line adjustment functionality for test specimens
Fitted with an anti-secondary impact device to enhance accuracy and credibility of test results
Automatic protection and prompt functions for maximum safety and reliability
Electric adjustment of lower working space improves specimen positioning precision and reduces operator fatigue

Structure and Working Principle

This testing machine is mainly composed of workbench, anti-secondary impact mechanism, support tube, guide tube, hammer body, V-shaped anvil, automatic hammer release mechanism, reducer, electric control cabinet and main frame.

Working principle: The machine is equipped with a hammer clamp inside the guide tube. Driven by the motor and reducer, the clamp lifts the hammer body to the preset height automatically, then triggers the hammer release switch, allowing the hammer to fall freely along the guide tube and strike the specimen to complete the test. The impact energy can be calculated based on the mass of the hammer and the impact height.

If the hammer rebounds after the specimen is broken, the photoelectric signal will control the anti-secondary impact mechanism to quickly clamp the rebounding hammer, preventing secondary impact.

A V-shaped anvil assembly is installed under the workbench, with lead screws arranged on both sides. The lifting of the V-shaped anvil is driven by rotating the handwheel.

Compliance Standards

Conforms to ISO3127, BS EN1411, BS EN744, ZB N72 026, GB/T14152, 14153, 100021, 13664, 58361, 18847, 16800, 8814 and GB/T 6112, ABN72026, ISO 4422, ASTM D2444.

Technical Parameters

Parameter	Specification
Model	XJL-300B
Max. Impact Energy	300J
Max. Height	2000mm
Drop Weight	0.25-16kg
Impact Center and Fixture Center Error	2mm
Hammer Head	R5mm, R10mm, R30mm (can be customized)
Selected to Fit Customer Requirements	d25, d90
Table Travel	0mm-630mm
Specimen Diameter	10mm~630mm
Pallet Type	120° V-type with or without support, clamp flat pallet
Power	AC220V 50Hz

Standard Configuration

No.	Name	Unit	Quantity	Remarks
1	Host	set	1
2	Electric Cabinet	set	1
3	Weight	piece	10	0.1kg (1), 0.125kg (2), 0.2kg (1), 0.25kg (1), 0.5kg (1), 1.0kg (2), 2kg (1), 3kg (1), 6kg (1)
4	Impact Hammer	set	2	0.5kg (1), 1.0kg (1) - Includes upper and lower tray, hammer tail, joint
5	Hammer Head	set	2	D25 (1), D90 (1)
6	Double Sides V Iron	set	1
7	One Sided V Iron	set	1	Installed on the main machine
8	Documentation		3	Operating instruction (1), Packing list (1), Certificate of approval (1)
