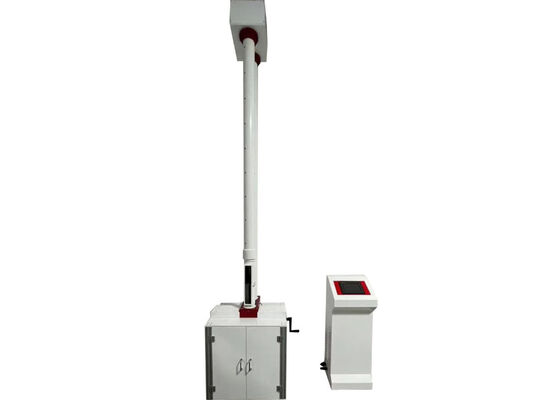

Drop Hammer Impact Testing Machine Engineered to Deliver Precise Impact Force Testing and Material Failure Assessment for Control
Product Description:
This testing instrument, designed in accordance with the standard Thermoplastics pipes — Determination of resistance to external blows — Round-the-clock method, is extensively employed for external impact resistance testing of plastic pipes, plastic sheets and various non‑metallic materials.
In the field of plastic piping testing, it is applicable to a full spectrum of piping products, including PVC‑U water supply pipes, low‑pressure water supply pipes, core‑layer foam pipes, double‑wall corrugated pipes, Krah pipes, steel‑belt reinforced pipes, PE water supply pipes, MPP power pipes, hollow‑wall winding pipes and CPVC power pipes.
Instrument Features:
1.Triple Safety Protection: Three-level safety protection is configured, consisting of first-stage protection for the specimen door, second-stage protection for the observation window door, and third-stage protection for upper and lower limit positioning.
2.High-Speed Lifting: Driven by a high-torque stepper motor, the lifting rate reaches up to 250 mm/sec, completing a full stroke from 0 to 2 meters in only 8 seconds.
3.Intelligent Hovering Control: The machine is equipped with a multi‑segment speed control program, ensuring stable suspension of the hammer body and accurate, drift‑free position control.
4.Aerodynamically Optimized Guide Tube: The drop hammer guide tube is designed via 3D modeling with additional exhaust vents to minimize wind resistance. Meanwhile, a reinforced hoop structure is applied to the tube to prevent failure and deformation.

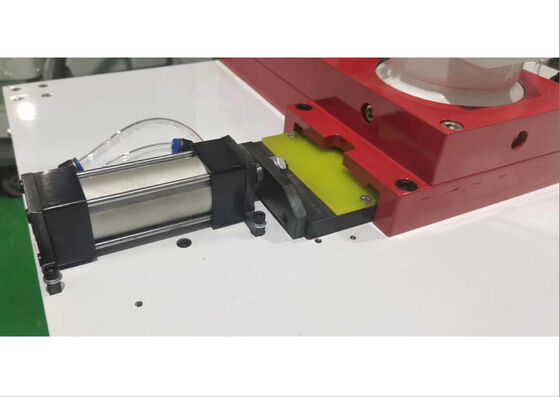

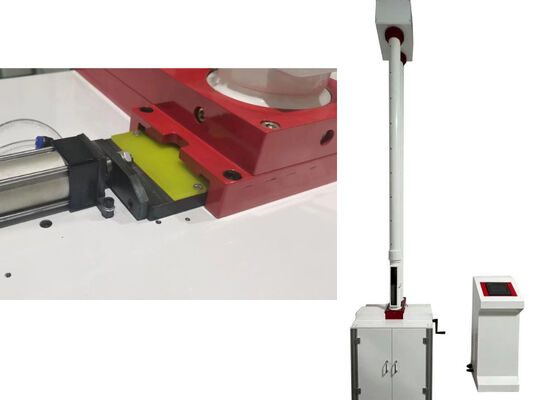

5.Pneumatic Hammer Gripping & Releasing: Instead of conventional electromagnetic and electromagnet hammer mechanisms, a high‑capacity pneumatic structure is adopted. The system uses a 300N long‑stroke double cylinder, with a beef tendon plate installed on the hammer contact surface, ensuring stable hammer operation and no mechanical damage. The full pneumatic design fundamentally eliminates troubles such as cable bending, wire breakage and electric leakage. An automatic pneumatic locking structure further ensures safe and reliable operation.
6.Integrated Modular Assembly: The mechanical structure adopts standardized aluminum alloy profile assembly, while the electrical control system integrates a 7‑inch touch screen and Delta PLC. This solution achieves process standardization, modular installation, and features a lightweight yet high‑strength mechanical construction.
Technical Parameters:
| Model |
XJL-300D |
| Ambient temperature |
10℃-35℃ |
| Drop hammer quality |
0.5kg-5kg, 0.125Kg/per increase |
| Hammer diameter |
D25mm, D50, D90mm |
| Height of the fall |
30mm-2000mm,error≤±2mm |
| Diameter of the sample |
Φ10mm-Φ450mm |
| Deviation of impact center from fixture center |
≤2mm |
| V-type supporting |
120° |
| source |
220-230VAC |
| Outline dimension |
720mm×690mm×3650mm |
| Net weight |
300kg |
Main functions:
This drop hammer impact testing system is extensively employed to determine the external impact resistance of plastic pipes, rigid plastic sheets and diverse non‑metallic materials.
In terms of plastic piping testing, it covers a full product range including PVC‑U water supply pipes, low‑pressure water supply pipes, core‑layer foam pipes, double‑wall corrugated pipes, Krah pipes, steel‑belt reinforced pipes, PE water supply pipes, MPP power pipes, hollow‑wall winding pipes and CPVC power pipes.
Defination:
True Impact Rate (TIR)
Upon completion of impact tests across an entire batch of specimens, the ratio obtained by dividing the total number of impact failures by the total number of impact operations is defined as the true impact rate, which is expressed as a percentage.
Failure Criterion
A specimen is deemed to have failed if, upon visual inspection, cracks, fissures or full breakage are observed after impact. Indentations or surface discoloration on the specimen caused by drop hammer impact shall not be regarded as failure.
FAQ:
-
Q: What is drop hammer impact testing equipment?
A: Drop hammer impact testing equipment is a precision test instrument manufactured by TH in Beijing, China, which is used to evaluate the impact resistance of tested specimens.
Q: What is the application purpose of drop hammer impact testing equipment?
A: It is used to measure the impact resistance of various specimens, so as to effectively verify and ensure the stability and reliability of product quality.
Q: What kinds of products can be tested by this drop hammer testing equipment?
A: It is suitable for various piping products, including PVC‑U water supply pipes, sewage pipes, low‑pressure water supply pipes, low‑pressure fluid transmission pipes, core‑layer foam pipes, double‑wall corrugated pipes and PE water supply pipes, and also applicable to rigid plastic sheets.
Q: What is the test accuracy of this drop hammer testing equipment?
A: This equipment features a high testing accuracy of up to 0.5%.
Q: What is the maximum test energy of this drop hammer testing equipment?
A: The maximum rated impact test energy of this equipment is 300J.
