Hydrostatic Pressure Testing Machine Providing PLC PC Control and Various Data Output Methods for Plastic Pipe Pressure Testing

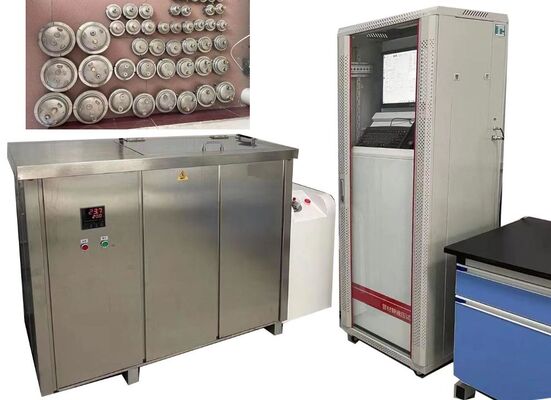

Large Image : Hydrostatic Pressure Testing Machine Providing PLC PC Control and Various Data Output Methods for Plastic Pipe Pressure Testing

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-16C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Providing PLC PC Control And Various Data Output Methods For Plastic Pipe Pressure Testing	Max.pressure:	16MPA
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
Test Curve:	Pressure-time And Pressure-temperature	Display:	LCD/LED
Pressure Unit:	Bar/psi/MPa	Test Type:	Constant Pressure And Bursting
Test Medium:	Water	Safety Protection:	Over Pressure/Power-down Data Protection
Highlight:	PLC controlled hydrostatic pressure testing machine , plastic pipe pressure testing equipment , hydrostatic tester with data output

Hydrostatic Pressure Testing Machine Providing PLC PC Control and Various Data Output Methods for Plastic Pipe Pressure Testing

Product Overview

The Hydrostatic Pressure Testing Machine is engineered to evaluate the structural strength and service performance of plastic piping products, including PE, PVC, PPR, ABS and steel-skeleton plastic composite pipes, covering a diameter range from DN20 to DN1800mm.

It supports a wide operating temperature range of 15-95℃, and is equipped with LCD/LED display, data storage function, and multiple pressure units including bar, psi and MPa. This testing equipment is used to verify the pressure resistance of plastic pipes to ensure their quality and application safety.

It features simple operation and high testing accuracy, providing stable and reliable test results.

Key Features

Product Name: Hydrostatic Pressure Testing Machine
Data Storage: Supported
Safety Protection: Overpressure protection & power-off data retention
Test Curve: Pressure-time curve & pressure-temperature curve
Power Supply: AC220V/50Hz
Test Medium: Water
Applicable Tests: Constant pressure test & bursting test
Applicable Materials: PVC, PE, PPR, HDPE pipes

Technical Parameters

Model	XGY-16C
Max. pressure	16MPa
Test stations	6 stations
Control mode	computer control
Data preservation	Each station has power off data protection function, boot can be restored
Time	Timing time: 0~9999 h 59 min Timing accuracy: ±0.1% Time resolution: 1s Minimum Set Unit: min
Pressure	Pressure control range: 0.2~16MPa Pressure indicator units: MPa, bar or PSI Pressure control accuracy: -1%~ +2% Constant Voltage Control Precision of Full Load Range: Within ±1% Pressure display resolution: 0.001MPa, 0.01bar or 1PSI Measuring range: 4%~100%FS Allowable error limit for indication: Within 1%
Temperature	Control Range (with Refrigeration system): 15-95℃ Control accuracy: ±0.5℃

Applications

Engineered and assembled in Beijing, China, the TH Series Hydrostatic Pressure Testing Machine features a broad pressure measurement range of 0-100 bar with multi-unit selection (bar, psi, MPa). It is equipped with integrated PLC/PC control capabilities and advanced data logging functionality.

This system supports comprehensive testing protocols compliant with key international standards, including ISO 1167, ASTM D1598, ASTM D1599, alongside dedicated burst testing and safety assessment protocols. Offering dual operation modes—manual for precise control and automated for high-throughput efficiency—it ensures consistent performance.

Built for industrial rigor, the machine delivers exceptional measurement accuracy and reliability. Its robust construction is designed to withstand harsh operational environments, meeting the most stringent test demands. The intuitive user interface facilitates effortless pressure regulation and data acquisition, providing instant, precise results.

Technical Support & After-Sales Service

We provide all-round technical support and after-sales services for our Hydrostatic Pressure Testing Machine. Our technical support team consists of experienced engineers and technicians, who are fully equipped to offer professional consultation and technical assistance.

Our service scope covers:

On-site machine installation and commissioning
On-site fault diagnosis, troubleshooting and maintenance repairs
Routine maintenance and preventive care services
Software version updates and functional module upgrades
Professional consultation on operational best practices and proper usage guidelines

Our technical team is on call 24/7 to assist with any technical problems you may encounter. We are dedicated to delivering superior customer service and providing fast, reliable technical support to ensure uninterrupted operation of your equipment.

Frequently Asked Questions

What is the brand of the Hydrostatic Pressure Testing Machine?

This Hydrostatic Pressure Testing Machine is branded TH.

Where is the Hydrostatic Pressure Testing Machine produced?

It is manufactured in Beijing, China.

What is the application purpose of the Hydrostatic Pressure Testing Machine?

It is used to test the strength and calculate the ring stress of applicable plastic pipes and composite pipes (including PP-R, PP-B, PP-A, PVC, PE, PE-X, etc.).

What are the core features of the Hydrostatic Pressure Testing Machine?

Its core features include high-precision test results, easy operation, and an intuitive user interface.

What is the maximum pressure measurement capacity of the Hydrostatic Pressure Testing Machine?

It can achieve a maximum pressure measurement of 160 bar.

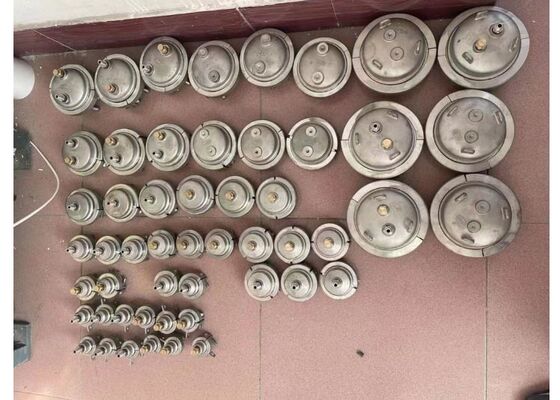

Product Gallery
