Hydrostatic Pressure Testing Machine Equipped with Digital Controls and Monitoring Systems for Enhanced Testing Accuracy

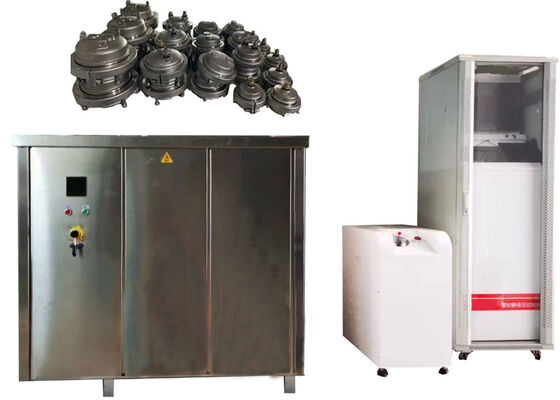

Large Image : Hydrostatic Pressure Testing Machine Equipped with Digital Controls and Monitoring Systems for Enhanced Testing Accuracy

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001 , CE
Model Number:	XGY-10C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	wooden case
Delivery Time:	7-15 days after order
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	15 sets/month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Equipped With Digital Controls And Monitoring Systems For Enhanced Testing Accuracy	Max.pressure:	10, 16, 20MPA
Accuracy:	-1%~+2%	Pressure Unit:	BAR/PSI/MPA
Safety Protection:	Over Pressure/Power Failure Data Protection	Test Type:	Constant Pressure And Bursting
Test Medium:	Water	Test Mode:	Manual/Automatic
Power Supply:	AC220V/50Hz
Highlight:	Hydrostatic pressure testing machine with digital controls , Hydrostatic pressure testing machine with monitoring systems , Digital hydrostatic pressure tester for accuracy

Hydrostatic Pressure Testing Machine with Digital Controls and Monitoring Systems

The Hydrostatic Pressure Testing Machine is a specialized pressure testing apparatus engineered to assess the pressure resistance of end caps, flanges, and pipe assemblies. With a maximum pressure capacity of 10 MPa and a full testing scale of 0-100 bar, it features an LCD/LED display for intuitive real-time monitoring and adopts PLC/PC control architecture to deliver highly precise testing operations.

Using water as the standard test medium, this machine supports two primary test modes: constant pressure testing and bursting testing. It is compatible with pressure testing for pipes and fittings covering the full diameter range from DN20 to DN1800 mm.

Key Features

Control System: Computer-aided intelligent control
Testing Curves: Pressure-time & pressure-temperature data curves
Pressure Range: Standard testing span of 0-100 bar
Display Module: LCD/LED high-definition display screen
Data Output Ports: USB, RS232, RS485 and Ethernet interfaces
Test Medium: Purified water (standard testing medium)

Applications

The TH Hydrostatic Pressure Testing Machine is manufactured in Beijing, China, powered by AC220V/50Hz supply. It supports plotting of pressure-time and pressure-temperature test curves, with a test temperature range of 15~95℃ and convertible pressure units (bar/psi/MPa).

Adopting PLC/PC dual control mode, this machine is dedicated to pressure testing for pipes, valves and fittings covering DN20-DN1800mm, with a maximum test pressure of 10MPa. This equipment is the optimal choice for pressure and leak detection of pipelines, valves and fittings in oil & gas, water supply and other relevant industries. It is also widely applied in pressure performance testing for water heaters, pressure vessels and other pressure-bearing components.

Characterized by hassle-free and secure operation, accurate and dependable measurement data, as well as broad pressure and temperature testing ranges, this machine delivers a perfect testing solution for a wide spectrum of industrial testing applications.

Technical Parameters

Parameter	Details
Power Supply	AC220V/50Hz
Testing Range	0-100bar
Test Mode	Manual/Automatic
Test Type	Constant Pressure And Bursting
Test Medium	Water
Display	LCD/LED
Product Name	Hydrostatic Pressure Testing Machine
Test Temperature Range	15~95℃
Accuracy	-1%~+2%
Data Output	USB/RS232/RS485/Ethernet
Max. Pressure	10MPA
Plastic Pipe	ISO 1167, ASTM D1598, ASTM D1599, ASTM D2240

Customization

Manufactured by TH in Beijing, China, this hydrostatic pressure testing machine features a testing pressure range of 0-100 bar and utilizes water as the standard test medium. With an operating temperature window of 15℃ to 95℃, the equipment fully conforms to stringent international standards including ISO 1167, ASTM D1598 and ASTM D1599, and is specially engineered for pressure testing of various plastic pipes.

It is equipped with a high-definition LCD/LED display panel, and supports diversified data output via multiple communication interfaces: USB, RS232, RS485 and Ethernet. The machine enables the generation of standard pressure-time and pressure-temperature test curves, while also supporting the customization of flexible testing procedures to meet diverse testing requirements.

Frequently Asked Questions

Q1: What brand is the Hydrostatic Pressure Testing Machine produced under?

A1: The equipment is branded with TH.

Q2: Where is the Hydrostatic Pressure Testing Machine manufactured?

A2: It is produced in Beijing, China.

Q3: What are the main application sectors of the Hydrostatic Pressure Testing Machine?

A3: This machine is mainly applied in industries including petroleum, chemical engineering, metallurgy, electric power, aerospace, medical treatment, food processing and material science.

Q4: What is the standard operating procedure for the Hydrostatic Pressure Testing Machine?

A4: The operating procedure covers equipment installation and connection, parameter setting, system startup, test program operation, and final equipment shutdown.

Q5: What are the core performance characteristics of the Hydrostatic Pressure Testing Machine?

A5: This testing machine features high testing accuracy, fast response speed, strong anti-interference performance and excellent long-term stability.
