Hydrostatic Pressure Testing Machine Offering Comprehensive Pressure Testing Solutions for Industrial Safety Compliance

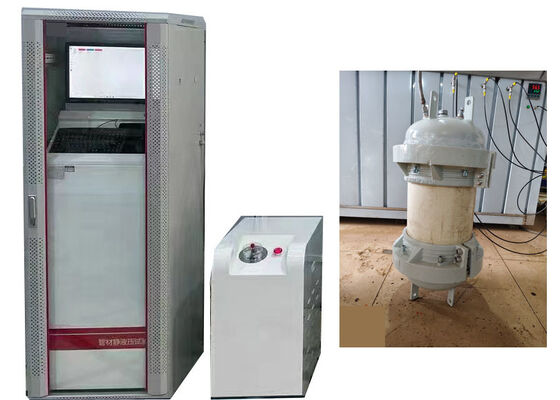

Large Image : Hydrostatic Pressure Testing Machine Offering Comprehensive Pressure Testing Solutions for Industrial Safety Compliance

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-10C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Offering Comprehensive Pressure Testing Solutions For Industrial Safety Compliance	Testing Range:	0-10MPA
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
End Caps:	Φ16-1600mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	Hydrostatic Pressure Testing Machine for industrial safety , Hydrostatic Pressure Testing Machine with warranty , Comprehensive pressure testing solutions machine

Hydrostatic Pressure Testing Machine

Comprehensive pressure testing solutions for industrial safety compliance

Product Overview

The PVC Plastic Pipe Hydrostatic Burst Pressure Testing Machine, designed in accordance with ASTM D1598 standard, is used to test the long-term damage resistance time or maximum instantaneous burst pressure value of thermoplastic pipes and composite pipes under constant internal pressure and temperature environment. This equipment is essential for plastic pipe manufacturing factories and professional testing institutions to complete relevant product performance testing and quality certification work.

Key Features

Sophisticated structural configuration for pressurizing non-vented hydraulic systems using water as test medium, ensuring outstanding safety and dependable performance
Each testing circuit features solenoid valves with dual branch passages and premium pressure control technologies synchronized with German and Danish industrial standards
Independent adjustment of operating frequency and duration enables fast, precise pressure replenishment for large-diameter PE specimens
Wide applicability for R20-R630 PE pipes with exceptional pressure control precision (better than ±1%, up to ±0.001 MPa)
Completion, rupture, or leakage of a single specimen does not disrupt ongoing testing of other independent channels
Concurrent testing capability for pipes with varying specifications, models, and material types
Integrated power failure protection module automatically saves all test data and restores seamlessly upon power recovery

Compliance Standards

The testing apparatus fully complies with comprehensive international and national industry standards including ISO 1167-2006, ASTM D1598-2004, ASTM D1599, ISO 9080, CJ/T 108, and ASTM F1335. These standards govern core testing methodologies for plastic piping systems, ensuring accurate, reliable, and internationally recognized test results suitable for quality control verification, product certification, and R&D applications.

Technical Specifications

Model	XGY-10C
Diameter Range	Φ16-1600mm
Stations	3, 5, 6, 12, 15, 18, 20, 25, 50, 100 (customizable)
Control Mode	Micro-control, industrial PC control
Display Mode	Industrial PC LCD color display
Test Pressure Range	0.1-10MPa
Control Accuracy	±1%
Display Resolution	0.001MPa
Timer Range	0~10000h
Timer Accuracy	±0.1%
Power	380V 50Hz three-phase four-wire 1.2KW
End Caps Models	from Φ16 to 1600mm
Temperature Range	10-95℃
Dimensions (three stations)	700×610×1720(mm) or others

Support and Services

We deliver specialized technical support services tailored for hydrostatic pressure testing equipment utilized in plastic pipe testing. Our team of seasoned technical experts provides a complete suite of professional support solutions:

On-site equipment installation and commissioning
Targeted troubleshooting and specialized technical consultation
Corrective repair and preventive maintenance services
Authentic original spare parts and standard testing consumables
Proprietary software updates and functional performance upgrades

Frequently Asked Questions

Q1: What is the brand name of the Plastic Pipe Hydrostatic Pressure Testing Machine?

A1: The brand name of this professional hydrostatic pressure testing machine for plastic pipes is TH, and it is manufactured in Beijing, the People's Republic of China.

Q2: What is the core function of the Plastic Pipe Hydrostatic Pressure Testing Machine?

A2: This plastic pipe hydrostatic pressure testing machine is specially used to test the hydrostatic strength and bursting strength of various plastic pipes, to verify their pressure resistance performance under specified test conditions.

Q3: What kinds of pipes and materials can be tested by this Hydrostatic Pressure Testing Machine?

A3: This hydrostatic pressure testing machine is suitable for testing various plastic pipes and composite pipes, such as PP-R, PP-B, PP-A, PVC, PE, PE-X and other similar piping materials.

Q4: What is the test accuracy of this Hydrostatic Pressure Testing Machine?

A4: The test accuracy of this plastic pipe hydrostatic pressure testing machine is controlled within 0.1% of the full-scale reading, ensuring the reliability and precision of test data.

Q5: What is the maximum test pressure of this Hydrostatic Pressure Testing Machine?

A5: The maximum test pressure that this hydrostatic pressure testing machine can achieve is up to 10Mpa, which is equivalent to 100 bar or 1450 psi, meeting the high-pressure test requirements of different plastic pipe products.
