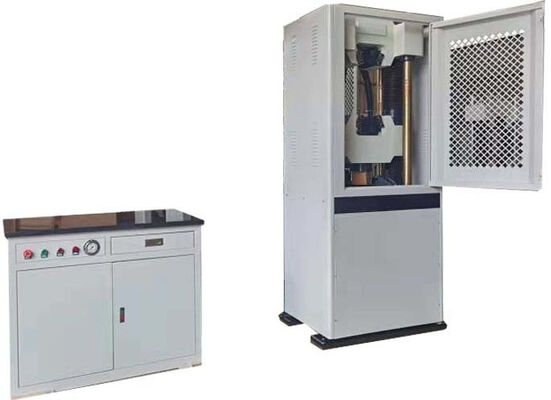

Hydraulic Universal Testing Machine with Computer Control
This computer-controlled hydraulic universal testing machine delivers precise tension, compression, bending, and shearing testing capabilities with reliable, accurate results.
Applications
Primarily engineered for metal material mechanical property testing, this machine features a computer-controlled hydraulic loading system with large-screen LCD display for user-friendly operation.
When equipped with auxiliary accessories, it extends to testing non-metal materials including wood, concrete, cement, and rubber. Ideal for high-toughness, high-hardness materials under extreme load conditions.
Cost Advantages
Our integrated manufacturing approach with specialized processing centers and self-produced core components eliminates intermediate costs while maintaining premium quality.
Lower failure rates reduce maintenance expenses and increase operational efficiency, delivering genuine long-term savings over inferior alternatives.
Compliance Standards
ISO 6934 BS4449, ASTM C39, ASTM A370, ASTM E4, ASTM E8, ASTM E9, ASTM A615, ISO6892, ISO7438, ISO7500-1, ISO 15630 EN10002-4, GB/T228-2002, GB 16491-2008, HGT3844-2008 QBT 11130-1991, HGT 3849-2008, GB6349-1986, ASTM C165, EN826, EN1606, EN1607, EN12430
Host Features
- ISO-standard design for compression, bending and shearing tests
- Integrated automatic control, measurement, data acquisition and display
- Cylinder-underframe structure with high-precision oil pump
- PC-based servo controller with multi-channel closed-loop control
- Fully automatic control throughout testing procedure
- High reliability and convenient system upgradability
Technical Specifications
| Model |
WAW-1000D |
| Max. Test Force |
1000 kN |
| Structure |
Four columns two ball screws, oil cylinder down-setting type |
| Load Range |
2%-100% |
| Middle Beam Elevating Speed |
200 mm/min |
| Max. Tensile Space |
700 mm |
| Max. Compression Space |
600 mm |
| Piston Stroke |
200 mm |
| Stranded Wire Clamping Range |
Φ13-40 mm |
| Flat Sample Clamping Range |
0-30 mm |
| Power Total |
3.2 kW |
| Compression Plate Size |
Φ160 mm |
| Bending Support Roller Distance |
300 mm |
Frequently Asked Questions
Are you a trading company or a factory?
We operate as an integrated manufacturer and trader, with 18 years in the testing instrument industry and 14 years of professional export experience.
How to choose the most suitable products?
Our professional team provides appropriate recommendations based on your test types and specification requirements.
What's the delivery term?
Most products are kept in factory stock. For non-stock items, delivery is 15-20 working days after deposit. Urgent orders can be accommodated.
Do you accept customization service?
Yes, we supply both standard testing machines and customized solutions based on your specific requirements.
